Prod Model: |
Car Charging |
Type: |
Ni-MH Battery |
Charger Type: |
Electric Charger |
Size: |
AA |
Nominal Voltage: |
2.4V-12V |
Product Description
- [Environmental and Safety]: High precision digital calibration,safe and fire prevention PC+ABS material Battery Charger, with heat-resisting, low temperature resistance and scratch resistance; .Build-in 18w power with Anti lightning strike function. EMC electromagnetic compatibility, 8 hours full load aging.Power board isolated from other circuit boards totally to ensure safety.
- [Fully compatible,One is enough]:Compatible with: Li-ion(4.2V / 4.35V)/ LiFePO4(3.6V)battery. 10340/10350/10440/10500/12340/12500/12650/13450/13500 13650/14350/14430/14500/14650/16500/16340(RCR123) 16650/17350/17500/17650/17670/18350/18490/18500/18650/22500/22650/25500/26500/26650 Ni-MH / Ni-Cd(1.48V) AA AAA AAAA C with DC 12V(Car changing) & AC 86-265V Input

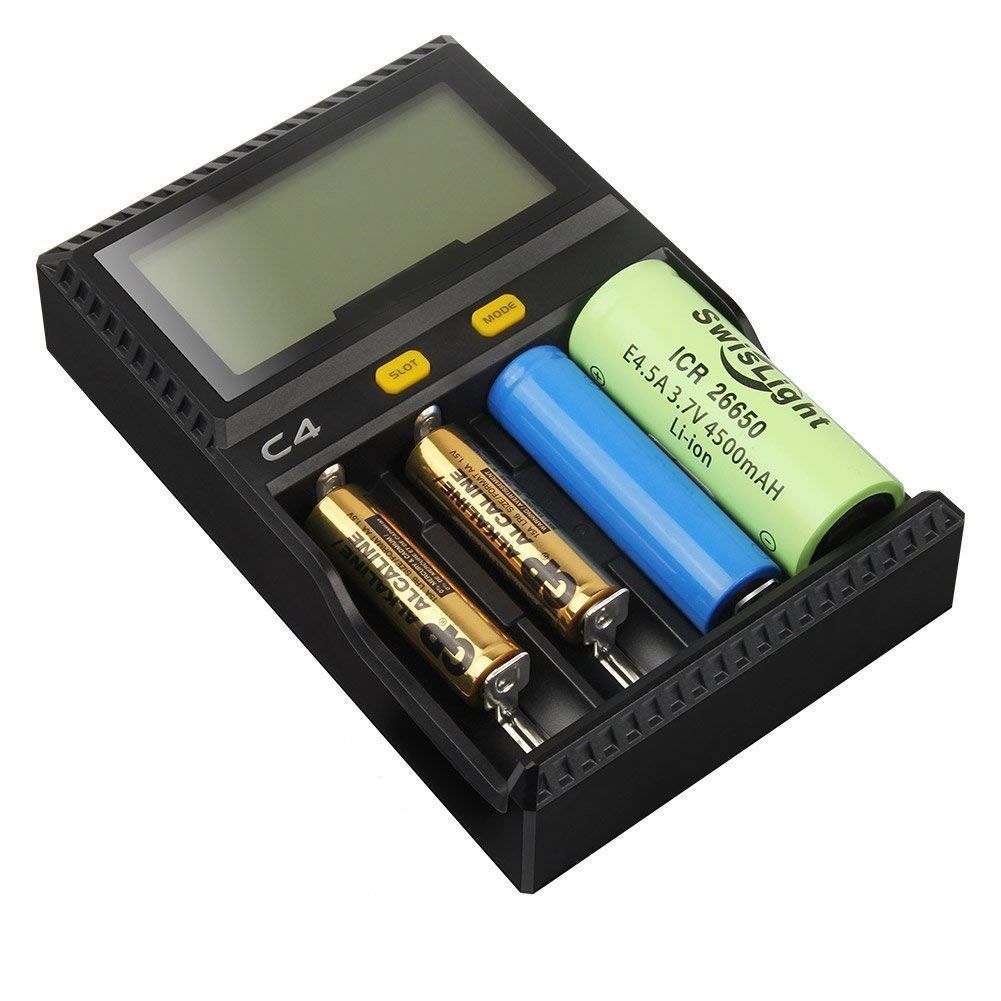

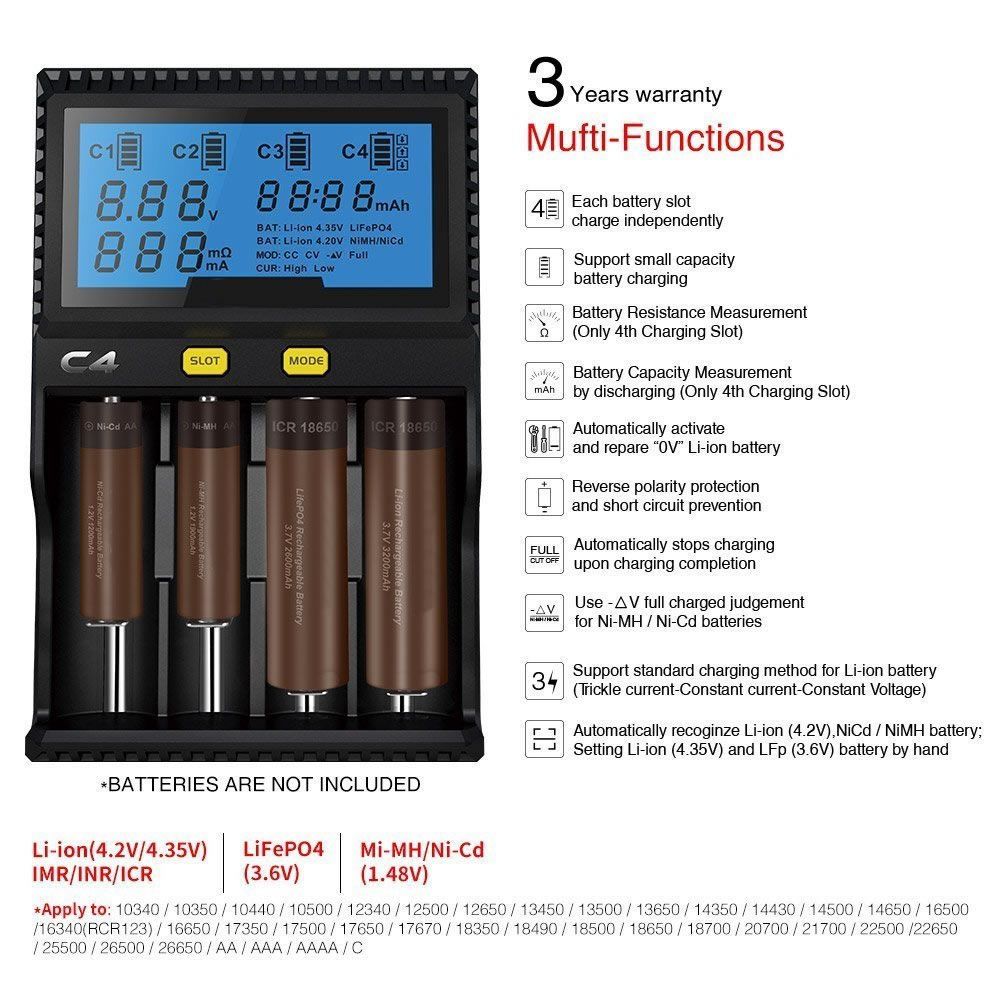

- [High Efficiency]: 4 charging slots can charge different kinds of batteries at the same time, each charging slot load max 800mA. Large LCD display states the voltage, current, charging time, mode, battery type, internal resistance,battery capacity data.
- [Outstanding Appearance]: Frosted process for surface finishing,High elasticity negative polarity Every slot has a High-precision sliding polarity bracket, easily moving, Effectively Anti-corrosion, Anti oxidation, Durable; Long-term use will not be biased.
- [Warranty]: 3 years warranty.

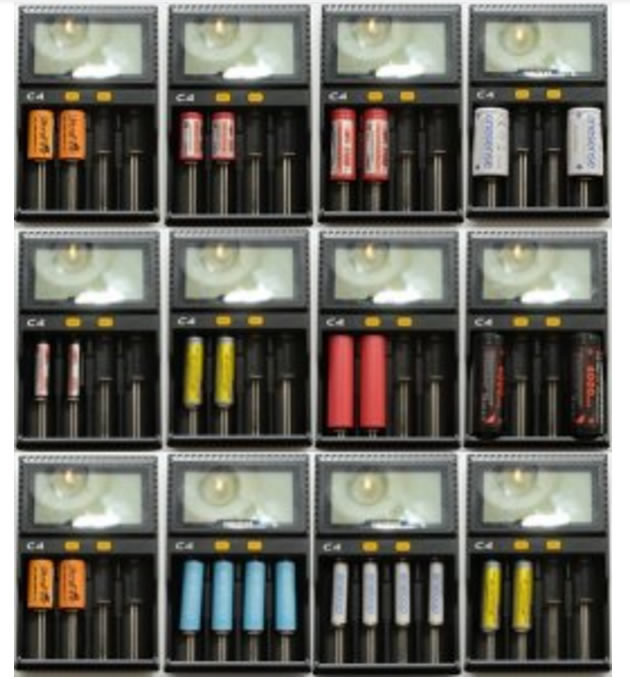

Fully compatible One is enough
4 charging slots can charge different kinds of batteries at the same time, each charging slot load max 800mA.
Compatible with: Li-ion(4.2V / 4.35V)/ LiFePO4(3.6V)battery.
Battery Specification:
10340/10350/10440/10500/12340/12500/12650/13450/13500
13650/14350/14430/14500/14650/16500/16340(RCR123)
16650/17350/17500/17650/17670/18350/18490/18500/18650
18700/20700/21700/22500/22650/25500/26500/26650
Compatible with: Ni-MH / Ni-Cd(1.48V)
Battery Specification: AA AAA AAAA C

Specifications
- Input Voltage:AC90~260V 50 / 60Hz 0.4A (MAX) / DC12V / 2A
- Output Voltage:4.35V±1% / 4.2V±1% / 3.6V±1% / 1.48V±1%
- Output Current:Li-ion: 800mA*4(High) / 350mA*4 (Low)
- Ni-MH / Ni-Cd: 300mA*4 (High) / 150mA*4 (Low)
- size:103*158*38.2mm
- weight:445g

High Quality Power Supply, Excellent Safety Performance
Build-in 18w power with Anti lightning strike function. EMC electromagnetic compatibility, 8 hours full load aging.Power board isolated from other circuit boards totally to ensure safety
High elasticity negative polarity sliding rail, connection is better
Every slot has a High-precision sliding polarity bracket, easily moving, Effectively Anti-corrosion, Anti-oxidation, Durable; Long-term use will not be biased.

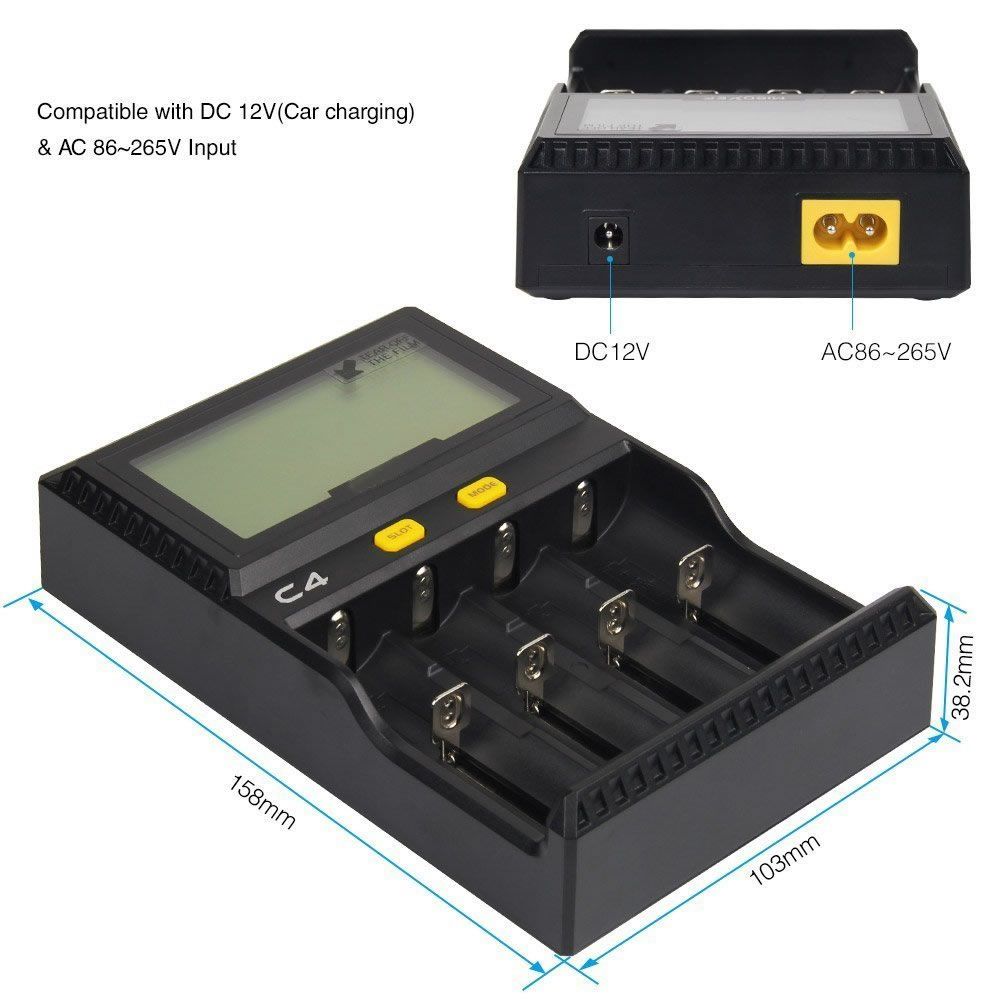

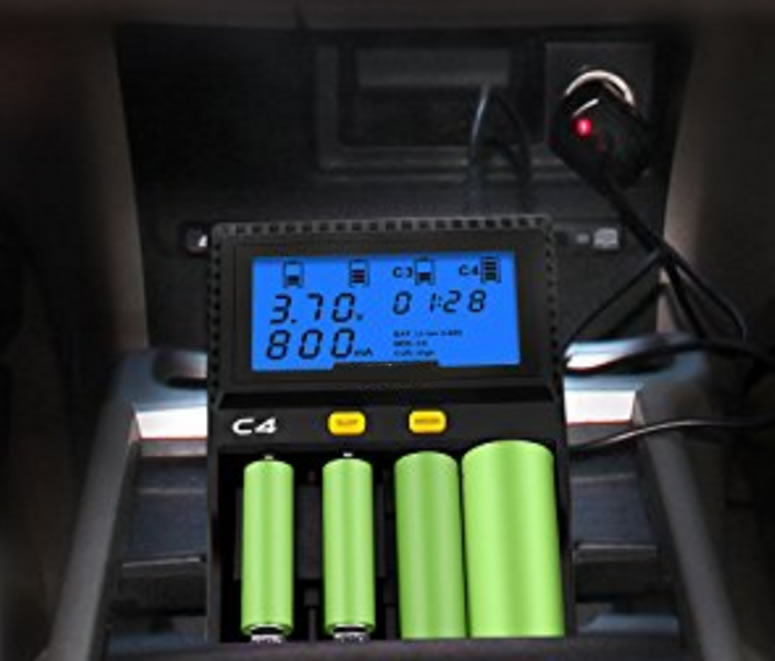

Compatible with car charger, lets you travel in comfortCompatible with DC 12V(Car changing) & AC 86-265V Input
Better Material, More safe
Made of fireproof PC+ABS material, heat, and wear resistant,low temperature and shock resistant as well.

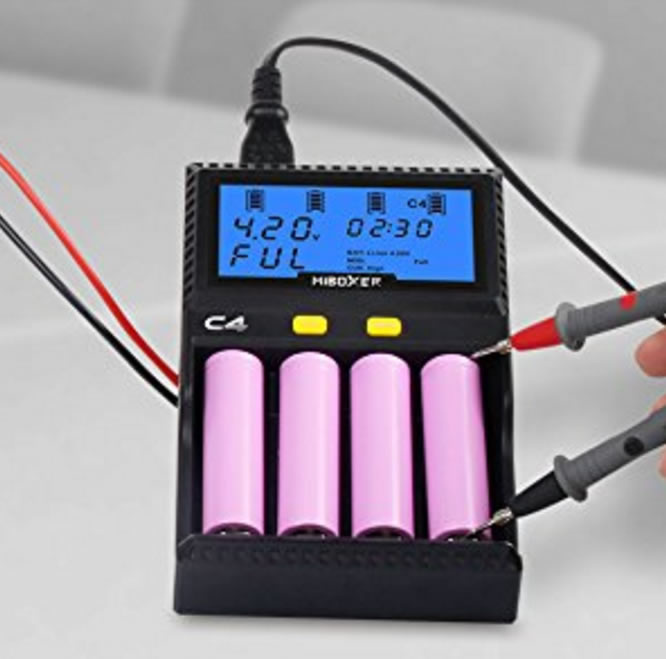

Large LCD screen, full display charging data
Large LCD display states the voltage, current, charging time, mode, battery type, internal resistance,
battery capacity data, let you know the charging status easily.
