| Prod Model: |
HP9116C PLUS |
| Model: |
High Frequency Online UPS 1kVA-20kVA |
| Frequency: |
50/60Hz |
| Output Power Factor: |
0.9 |
| High Efficiency: |
94% |
| Unbalanced Load: |
Yes |
| Capacity: |
10-20kVA |
| Parallel Working: |
3 Pieces UPS |
| Display: |
LCD |
| Eco Mode: |
Bypass |
| Transfer Time: |
0ms (AC Mode to Battery Mode) |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Classification: |
High Frequency Online UPS |
| Brand: |
Sorotec |
Product Description

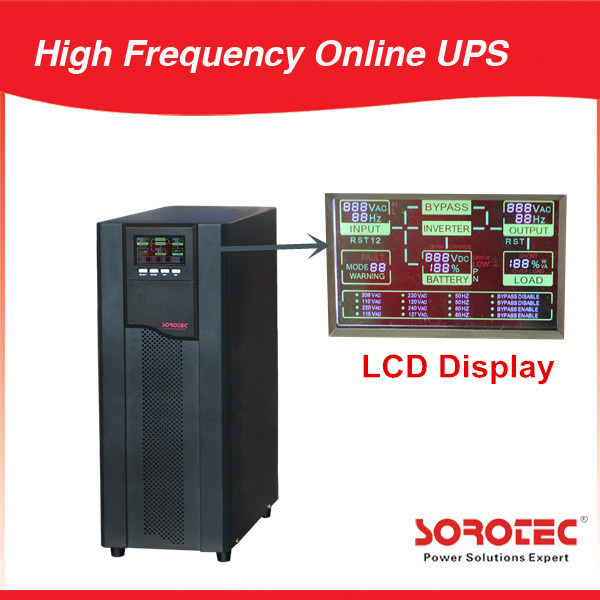

Intelligent Battery Monitors HP9116c Plus High Frequency Online UPS
Key Features:
1Ph in/1Ph out online UPS adopt advanced three-level inverter and stable parallel control technology to provide reliable power supply for data centre, telecom, medical and so on precision equipment.
| Model | HP9116C/HP9316 Plus 1-20k series |
| Type | |
| Phase | 1 Ph in/1Ph out & 3Ph in/3 Ph out |
| Capacity | 1-20KVA |
| Output Power Factor | 0.9 |
| Nominal Voltage | 220/230/240/380VDC |
| Nominal Frequency | 40-70HZ |
| Parallel Working | Maximum 3 units |
| Battery Voltage | 24VDC/36VDC/48VDC/72VDC/96VDC |
| Transfer Time | 0ms |
Muilti-function and Friendly Design
Advanced Parallel Technology
1.Stable parallel control technology make sure current sharing to 1%.
2.Select trip technology can avoid and isolation system fault then improved system availability.
3.Flexible extension capacity and redundance management that can satisfy all kinds of 4.requirements.
5.Support maximum 3 units for parallel working Flexible strategy.
Flexible Strategy
6.On line mode provides higher system availability.
7.High efficiency mode provides more economic operation.
8.Frequency conversion provides more stable output.
Model: GP9312C 10-100KVA(3Ph/1Ph)
Higher Power Factor /Higher Efficiency /Support Three Phase Input
Output Power Factor Up To 0.9
Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
Input power factors up to 0.99
Three phase input model support three phase PFC , input THDI<5%
Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%
Efficiency up to 93.5%when take the 30%load
ECO mode efficiency up to 98%
Product application areas
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System,Computer Center,Precision Equipment and so on
Product Parameters
| Model | HP9116C/HP9316C 10-20KVA PLUS |
| 10KT-XL | 15KT-XL | 20KT-XL |
| Rated Power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW |
| Rated Voltage | 220VAC/380VAC 3phase with ground |
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) |
| Input |
| Voltage Range | Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load) |
| Power Factor | >0.95(Three phase) | ≥0.99 |
| Output |
| Voltage Regulation | 208/220/230/240VAC (±1%) |
| Frequency Regulation | 50/60HZ±0.05 Hz |
| Power Factor | 0.9 |
| Voltage Distortion | Linear load<2% ,Non-Linear load<5% |
| Overload Capability | 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms |
| Current Crest Ratio | 3:01 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 192VDC | 192/216V/240VDC |
| Recharge Current | 4A | 4A (8A optional) |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232,SNMP card (optional) USB (optional) |
| Environment |
| Operation Temperature | 0~40ºC |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Sea Level Elevation | <1500m |
| Noise Level (1m) | <55dB |
| Physics Characteristic |
| Weight(KG) | 16.9 | 31 |
| Dimensions :(Wx D x H)mm | 212X420X500 | 248X565X500 |
