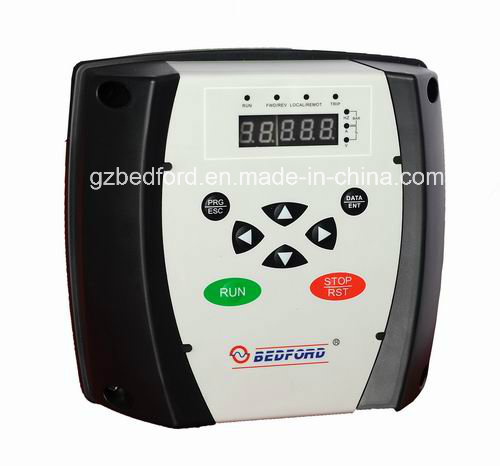

Intelligent Constant Pressure Pump Controller B601d

Prod Model:	B601
Output Type:	Single
Principle Of Work:	V/F Control Transducer
Switch Mode:	PAM Control
Main Circuit Type:	Voltage
Brand:	Bedford

Product Description

Product Description:
Hight quality,multi-functional,low noise and strong commonality etc.Characteristics,B601D series intelligent constant pressure water supply controller is suitable to full-automatic operation and B601D haven't special demands to peripherals,it almost can be use the normal component.

Input Voltage:
Single phase:220V 50/60Hz

Output Power Range:
Single phase:0~220V ,0.75~2.2KW

Applications:
Hotel, Apartment, Residential Community area,High-rise building,Orchard,Office,Water treament equipment etc.


Features:
1. Sleep Function: No water consumption pump decelerates to the down limit and after a detection then sleep down. Unitil the pressure below settings,master pump wake up automatically.
2. Restart after Power on: Power off during running,it restarts when power on again.
3. Anti clogging Function: Just designed for single pump application,the pump run REV/FWD alternate.
4. Day-Part Control: Slipt one day into several day-part to run a separate pressure respectively.Considered input water pressure limit, once input water pressure is less than setting pressure, stop running; while up to setting, recover running.
5. Terminal Run/Stop: Can be connected to external switch from terminal.When switch on, pump run and maintain a setting cinstant pressure; when switch off,pump stopped.
6. Electric contact Control: Two terminals switch on COM instruct the controller to accelerate and decelerate respectively.Can used for realizing the pump running in a switch setting pressure range.
7. Electrical fault protection: When there is an over current, over voltage, under voltage, phase loss, over load etc,the Controller will alarm and stop automatically.

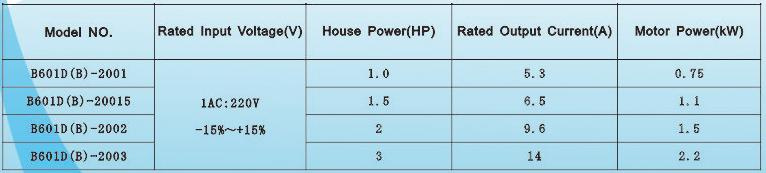

Model List
