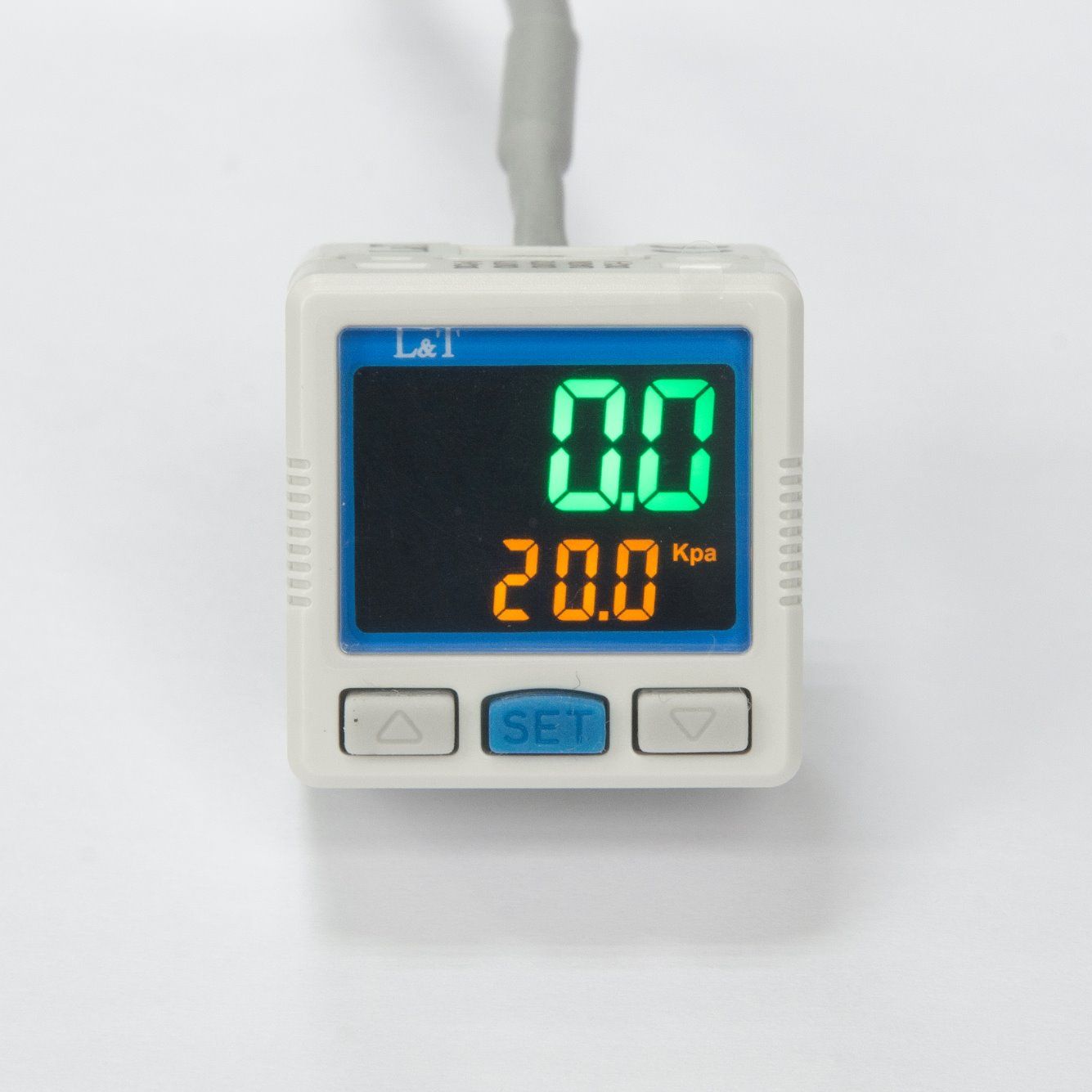

Intelligent Digital Pressure Switch / Pressure Sensor

Name: Intelligent Digital Pressure Switch / Pressure Sensor
Brand: all-electronics-online.com
SKU: 808398885
Availability: InStock
Rating: 4.9 (85 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DPS-3series
Type:	Pressure Sensor
IP Rating:	IP40

Product Description

Features

--Mounting:Panel or braket;

--Analog output:1-5V

--2 NPN output;

--Pressure unit: Kpa,Mpa,Psi.Bar;

--2-color digital LCD display.

--Pressure indicator
--Pressures witch
--Pressure controller
--Pressure transmitter;

Ordering Code

Specification

Model		DPS-301 Compound	DPS-310 Positive
Pressure Measurement	Range of Measurement	-100kPa ~ 100kPa	-0.100MPa~1.000MPa
	Setting Range	-100kPa ~ 100kPa	-0.100MPa~1.000MPa
	Pressure-resistance	500kPa	1.500MPa
	Pressure Types	Non-flammable,non-corrosive gas,gauge pressure measurement
	Measurement Accuracy	≤±2%F.S.(Ambient temperature 25ºC)
	Temperature Error	≤±3%F.S.(Temperature range 0~50ºC)
	Measurement Pattern	Hysteresis mode
		Single point mode
		Window mode
Pressure Interface		External R1/8,NPT1/8,G1/8 option,internal thread M5
Pressure Display	Brief Description	LCD display,4-digital measurement value,unit display,output status display
	Display Mode	Adjustable backlight, 4 groups of display models
Input Power	Voltage Range	12~24VDC ±10%
	Consumed Power	40mA Max(non-load)
Output Signal	Transistor Output	NPN open-collector output	PNP open-collector output
		Output current:80mA MAX	Output current:80mA MAX
		Voltage drop:≤1V	Voltage drop:≤1V
	Response Time	Adjustable:2.5ms,20ms,100ms,500ms,1000ms,1500ms
	Short-circuit Protection	Yes
Environmental Resistance	IP Level	IP40
	Environmental Temp	Operating temperature 0~50ºC,storage temperature-20~60ºC
	Environmental humidity	Environmental humidity
	Insulation Voltage	1000VAC 1min
	Insulation Resistance	≥50MΩ(500VDC)
	Impact Resistance	Max 100m/s2,3 times each in6 directions of X.Y and Z
	Vibration Resistance	Amplitude 1.5mm.10HZ~500HZ,2 hours each direction of X.Y and Z

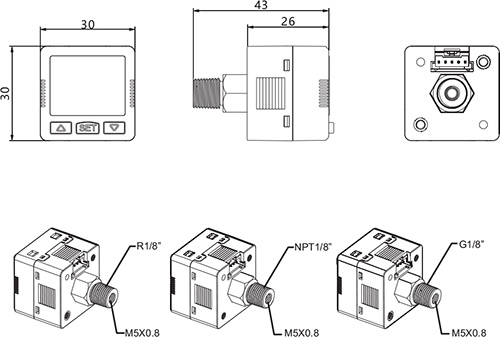

Overall Dimension

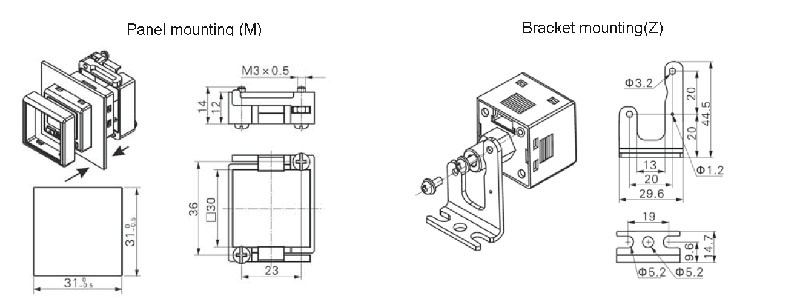

Mounting

Xingyu Electron(NINGBO)Co Ltd is one of the key enterprises in Chinese pneumatic and valve industry,We specialize in development,manufacturing,marketing and service of pneumatic actuator,angle seat valves,solenoid valves,solenoid coils and DIN connectors;
"Not to be the biggest,but to be the strongest" is our business goal and ideal,let us make best efforts for a better future.

XingyuRfs is one of the leading manufacturers of solenoids and solenoid valves in China. XingyuRfs is a private limited Company, it was founded in 1991, after 26years' hard working, now XingyuRfs has grown into a group, business include: Solenoids, solenoid valves, pneumatic actuators, angle seat valves, sensors and so on. XingyuRfs solenoids, valves, actuators, sensors are widely used in automotive, automation, textile industry, pneumatic, hydraulic, air and water treatment systems and so on.

XingyuRfs is a ISO9001: 2008 & TS16949 approved company. Not only advanced equipments, there are advanced management & experienced R&D team in XingyuRfs. These ensure the high and stable quality of the products.

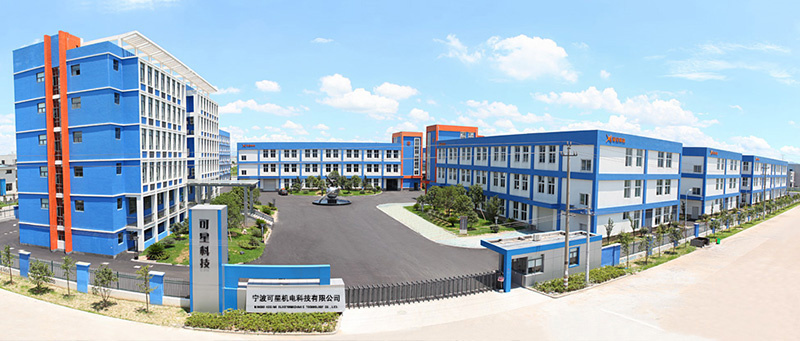

XingyuRfs is located in Fenghua district, Ningbo city, China. XingyuRfs has 37000 square meter workshops and about 350 employees. In 2016, XingyuRfs annual output value is about 23 million US dollars, half of exports and half of domestic sales. More and more famous brands come to cooperate with us, for example: Festo, IMI, ASCO and so on.

Win-win is our aim, let's make progress together.
