Intelligent Digital Pressure Switch with LED Display

Name: Intelligent Digital Pressure Switch with LED Display
Brand: all-electronics-online.com
SKU: 783184035
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PG-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure:	-1~600bar
Dial Size:	80mm
Supply:	24VDC 220VAC 380VAC
Measurement Medium:	Gas, Liquid, Water
Pressure Connector:	M20*1.5
Type:	Electronic
Application:	Industrial
Explosion-proof Type:	Flameproof

Product Description

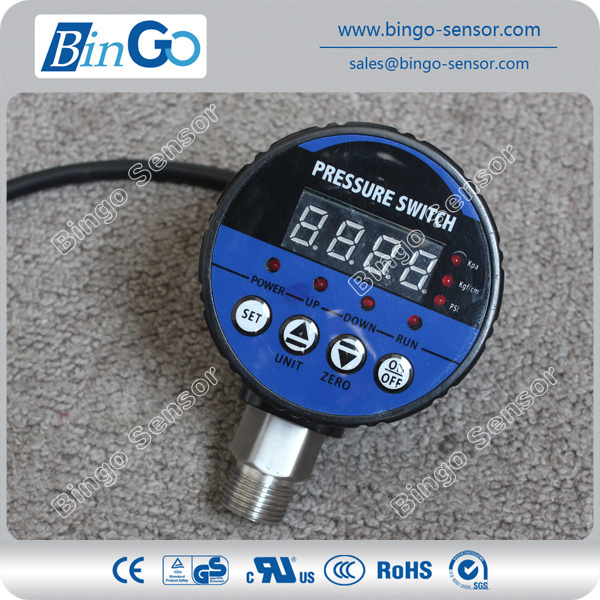

Intelligent digital pressure switch

This is a intelligent digital pressure switch, setting pressure measurement, pressure display, control in one professional unit. It can be set two group NO/NC alarm
points and also achieve two group high and low pressure control. "One key to zero clearing" and "three pressure unit to change" are available.

Feature
1)80mm diameter, 304SS shell
2)Radial and axial mounting
3) Different pressure units to chose, one key to zero clearing
4)Double relay output signal, each group with NO/NC, returning difference be set
independent
5)Multiple connection modes, be used as controller, switch, digital electro connecting pressure gauge

Specification

Range	General range:0-0.2...1.0...1.6...5...10...25...40...60...100...160Mpa Micropressure Range:0-5...10...25...40...60...100kPa Negative Pressure Range:-100~0kPa(-0.1~0MPa)
Overload Pressure	≤10Mpa 200% ; >10Mpa 150%
Alarm Point	The whole range is available
Alarm Type	Double relay output signal (each group NO/NC)
Accuracy	±0.5%FS
Stability	Typical: ±0.5%FS/year
Load Capacity	220VAC 3A
Supply	24VDC 220VAC 380VAC(Selectable)
Operating Temperature	-20~ 80ºC
Compensation Temperature	-10 ~ 70ºC
Electric Protection	Reverse voltage protection, anti-electromagintic interference
Sampling Frequency	5Times/sec
Measurement Medium	Gas, liquid
Pressure Connector	M20*1.5(other are customized)
Connector Material	304SS
Shell	Stainless Steel
Electric Connection	Waterproof aviation plug(line0.7m)
Output Line Source	Red black

Product show

Packing

About US

Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.

We owns followed two subsidiary corporations:

Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.

Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.

After several years development, Bingo now becomes a professional supplier for

* Pressure, level and flow control product applied to:

Water supply system

HVAC

Household appliances (refrigerator, Furnace, heater, dish-washing machine,

Water dispenser, food waste disposer and so on)

Steam control system

Vehicle

Oil transporting system

Medical equipment

* Security product

Warning light

Roadway safety

Mining safety

Alarm sire

* Electronic&Electrical product

Tact switch

Micro switch

Toggle switch

Foot switch

Earphone jacket

Industrial plug&socket

With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.

At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.

We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.

Looking forward to a win-win relationship with you!
