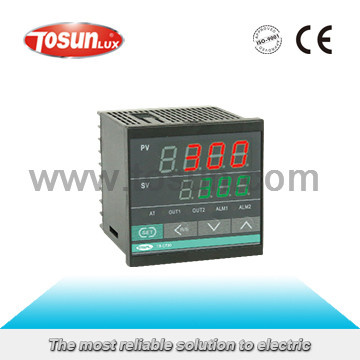

Intelligent Digital Temperature Controller (TS-C)

Name: Intelligent Digital Temperature Controller (TS-C)
Brand: all-electronics-online.com
SKU: 754140425
Availability: InStock
Rating: 4.8 (83 reviews)

Price:	US $ 15.65-17.83/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TS-C700
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	72X72X113
Hole Dimension:	68X68
Type:	Temperature Controller
Usage:	Air Conditioner, Refrigerator
Control Type:	Digital
Control Method:	Electronic Type
Cooling Purpose:	Cold Storage
Material:	Plastic

Product Description

APPLICATION

1. Intelligent Digital Display Temperature Controller adopts advanced ASIC chip technology of which is produced in small size and powerful anti-interference.

2. The product is produced according to international standard and use 85-262VAC wide range switching power supply, with multiple installation dimensions.

3. It is compatible with most of the automatic industrial controlling / adjusting instruments in the world in respect of performance specification, input modes, output functions and installation dimensions, therefore it is the international advanced level.

FUNCTION

1. Imitate digital filter waves.

2. Red and green numerical tubes display pv and sv simultaneously.

3. Digital PID adjustment, all date input from panel procedure.

4. Function of sensor revising.

5. Software control full range from 0, no potentiometer.

6. Manual / automatic switchover control without interference.

7. Function of second class data lock protection.

8. Self-adaptation, self-adjustment.

SIZE

Model	Dimension(mm)	Hole Dimension(mm)
TS-C100	4848108	45*45
TS-C400	4896113	45*91
TS-C700	7272113	68*68
TS-C900	9696113	91*91

SPECIFICATION

Output Mode	0. Without output
	1. Relay contact output
	2. Solid-state relay driving voltage output
	3. 0-10ma current output
	4. 4-20ma current output
	5. Scr zero trigger signal output
	6. Three position output
Input Mode	0. Thermocouple: j.k.e.s
	1. Thermal resistance:PT100, CU50
	2. Standard voltage: 0-5v
	3. Standard current: 0-10ma
	4. Standard current: 4-20ma
Alarm Mode	1. Without alarm function
	2. Upper absolute value alarm
	3. Lower absolute value alarm
	4. Upper deviation value alarm
	5. Lower deviation value alarm
	6. Upper and lower deviation value alarm
	7. Upper and lower absolute value alarm
