Product Description

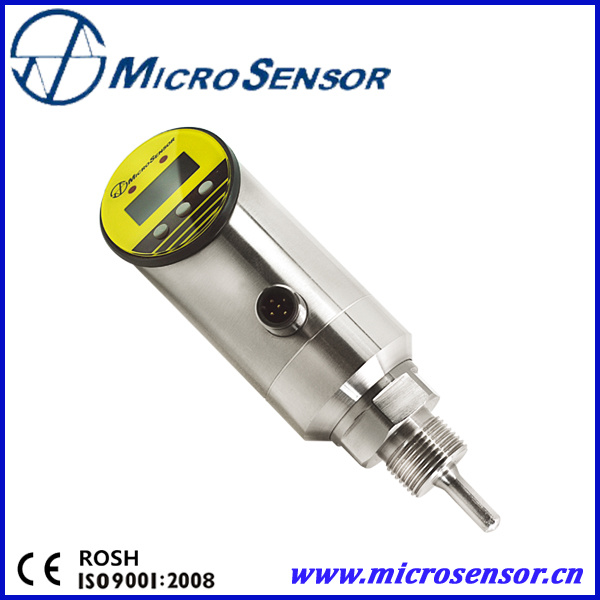

Intelligent Digital Temperature Switch with Ranges Drift Function
Features
1. Intelligent temperature switch
2. Temperature measurement for gas and liquid
3. Optional for PNP , voltage and current output
4. Peak value display
5. PNP switch point setting, time delay setting for action
6. OLED display
7. Environment reference temperature display
8. Change-over of different units: ºC or ºF
Specifications
Range: -50ºC~200ºC(-58ºF~392ºF)
Range drift: 25%FS~100%FS
Accuracy: ±1.0ºC(±2.0ºF)
Resolution: 0.1ºC
Power supply: 12V~30VDC
Sealing: PTFE gasket
Thermal drift:±0.15%/10K
Response: about 20s | Outputs:
1 switch: 1×PNP
2 switches: 2×PNP
1 switch + voltage output: 1×PNP + 0V~5VDC/10VDC
2 switches + voltage output: 2×PNP + 0V~5VDC/10VDC
1 switch + current output: 1×PNP + 0mA/4mA~20mADC
2 switches + current output: 2×PNP + 0mA/4mA~20mADC
Switch current: Max.1.2A
Switch reaction: <10ms
Switch time delay: 0.0s~750.0s
Switch action pattern: Hys. Mode / Win. Mode |
Note: MS701 Communication adaptor shall be used to realize Modbus Communication function.
Screen display: Blue 128×64 OLED
Switch display: 2 red LED
Display units: ºCºF
Key: 3 silicone rubber keys, please operate according to instructions on the screen.
Main screen: measured media temperature
Sub screen: environment temperature
Peak display: Temperature peak in process | Media Temperature: -50ºC~200ºC
Environment Temperature: -25ºC~70ºC
Storage Temperature: -40ºC~80ºC
Relative Humidity: 0%RH~85%RH
EMC: GB/T 17626.2/3/4-2006
Shock:≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Impact: ≤50g/11ms(IEC 60068-2-27-2008)
Protection: IP65 |
Pipe and housing: SS
Contact media material: SS
Display board: PMMA
Sealing: PTFE gasket
Sensing element: PT100
Electric connection: M12×1 round plug
Pressure connection: M20x1.5male
Gross weight: 300g (integrated)
580g (separated) |
|
Order guide:
| MTM5581 | Intelligent Temperature Switch (-50ºC~200ºC) |
| Code | Construction |
| Null | Integrated construction |
| F | Separated construction |
| Code | Output |
| 1K | 1×PNP |
| 2K | 2×PNP |
| 1KV | 1×PNP+0V~5/10VDC |
| 2KV | 2×PNP+0V~5/10VDC |
| 1KA | 1×PNP+0/4mA~20mADC |
| 2KA | 2×PNP+0/4mA~20mADC |
| Code | Thread |
| C1 | M20x1.5 male |
| C3 | G1/2 male |
| Code | Probe length |
| L | L: 20mm~300mm |
| Code | Others |
| R5 | 5-pin M12X1 male plug |
| R8 | 8-pin M12X1 male plug for Modbus communication |
| MTM5581 | F | 1KA | C1 | 20 | R5 | ←the whole spec. |
