| Prod Model: |
KA-DP10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Microwave Type: |
Hf System: 5.8GHz Cw Radar, ISM Band |
| Warranty: |
Two Years |
| Bulk Order Delivery Time: |
Within 25 Days |
| Samples Delivery Time: |
Within 2 Days |
| Usage: |
All Kinds of Lamp |
| Type: |
Microwave Sensor Switch |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse, Garage, Toilets etc. |
| Principle: |
Microwave Radar Motion Sensor |
Product Description

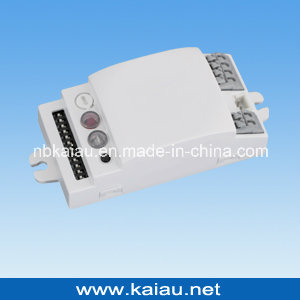

KA-DP10 Dimmalbe Microwave Sensor Specification:1) Power source: 90-240V/AC
2) Power frequency: 50/60Hz
3) Rated load: 200W Max. (220VAC Fluorescent)
4) HF system: 5.8GHz CW radar, ISM band
5) Installation sit: Ceiling mounting, Wall installation
6) Transmission power: <0.2mW
7) Detection range: 1m/2m/3m/4m/5m/7m/9m/12m(radii. )
8) Light-control: 15-330LUX
9) Detection angle: 360° (Ceiling installation)
180° (wall installation)
10) Time setting: Delay time: 10sec/20sec/30sec/50sec/
90sec /150sec/210sec/300sec
11) half bright state(standby time): 0.5min/1min/3min/5min/
10min/20min/40min/60min
12) Standby power: Approx. 0.5W
13) The dimmable standby brightness can be 10-60%
14) KA-DP10 is according to the ambient brightness regulating potentiometer, the light source of luminance changes between 10% to 100%. With the clockwise, the luminance increases, while
Anti-clockwise, decreases. It can set the ambient brightness.
Take an example: One day in office. Ambient brightness is set for 300LUX.
8: 00AM, People to office, lamp on100%, surround lighting300lux.
8: 05AM, Curtain opened, natural light gets in, lamp on 70%, surround lighting300lux.
9: 00AM, People are out for coffee, lamp on 10% during the short absence.
9: 15AM, Somebody returns, lamp on 40%(daylight is getting stronger), surround lighting300lux.
12: 00AM, External light reaches300lux, system shuts down.
5: 00PM, External light below300lux, system re-activated, lamp on 60%.
6: 00PM, People leaves office, system in stand-by mode, lamp on 10%.
6: 30PM, Stand-by time out, system shuts down.

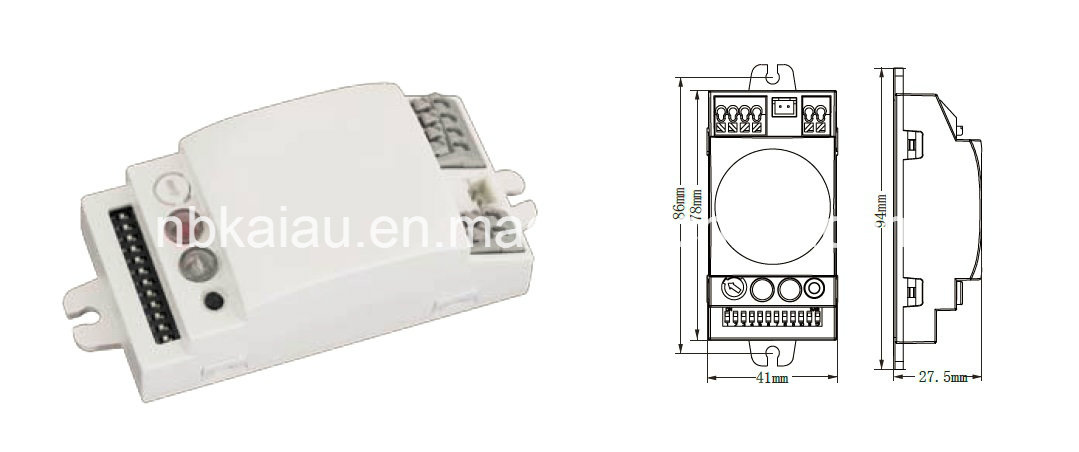

KA-DP10 Dimension:

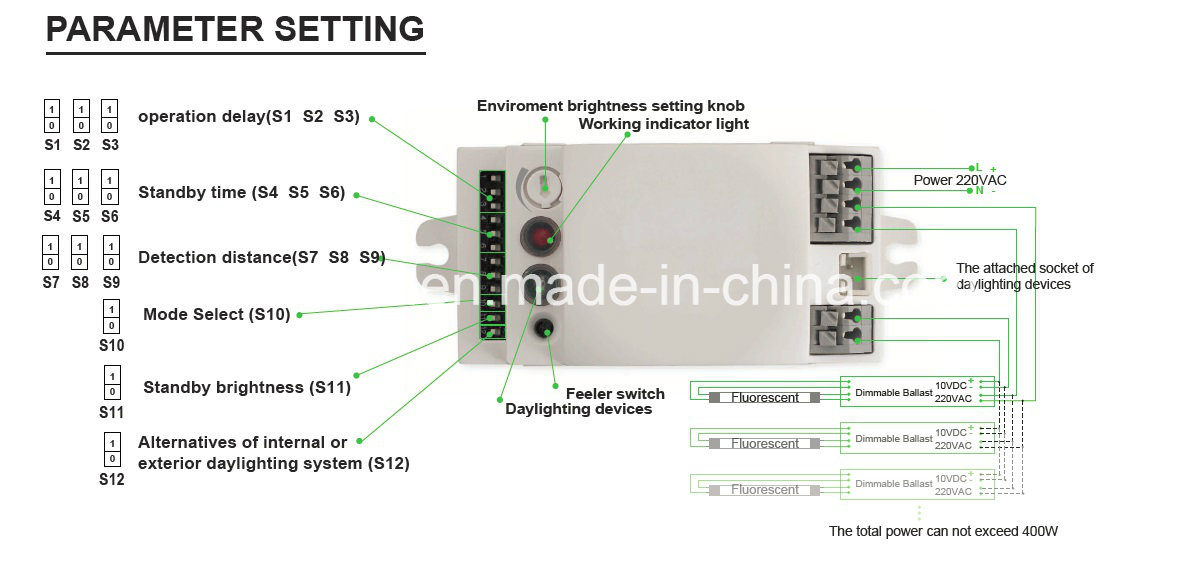

KA-DP10 Components Description:

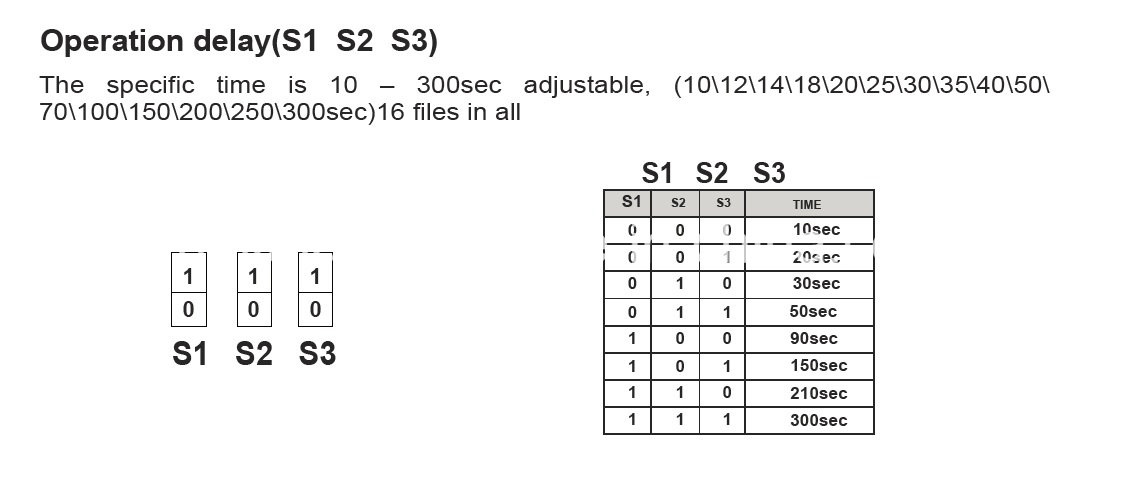

How to set delaying time:

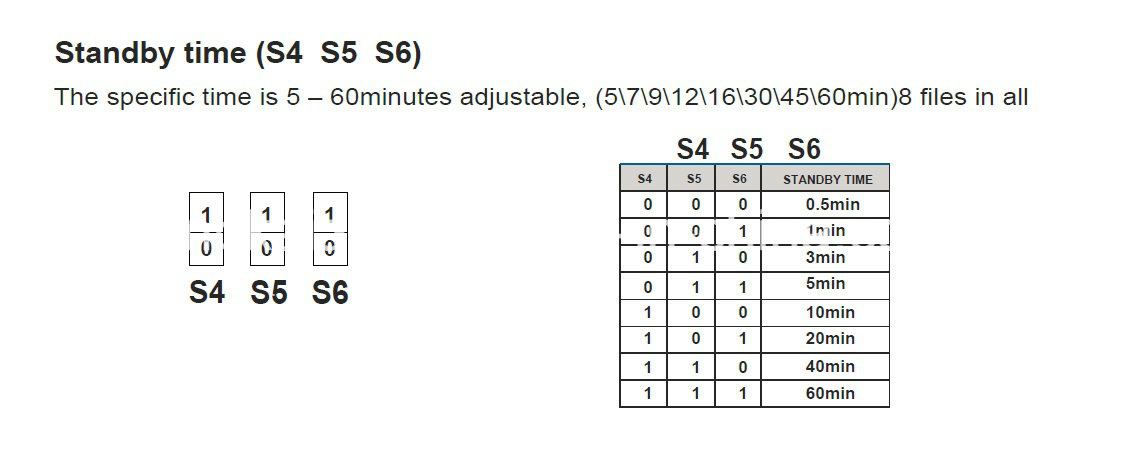

How to set dimmable standby time:

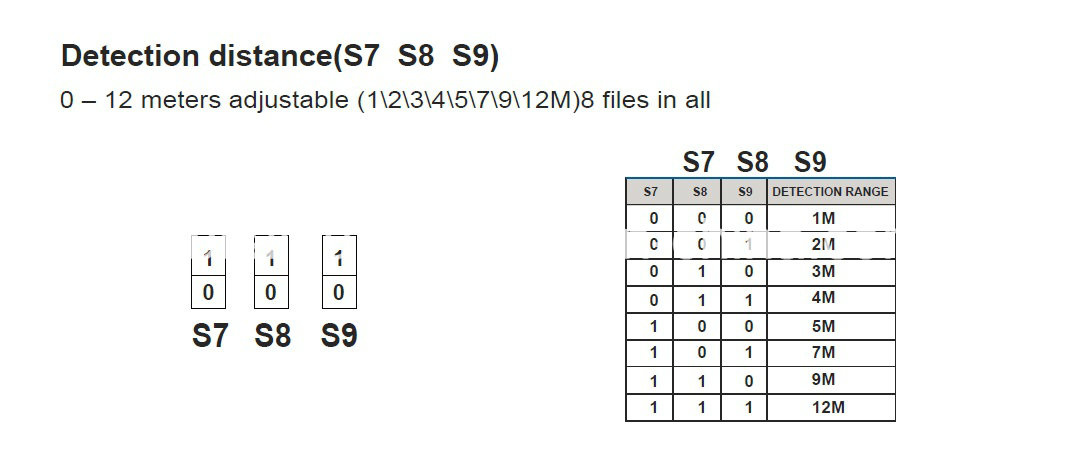

How to set detection distance:

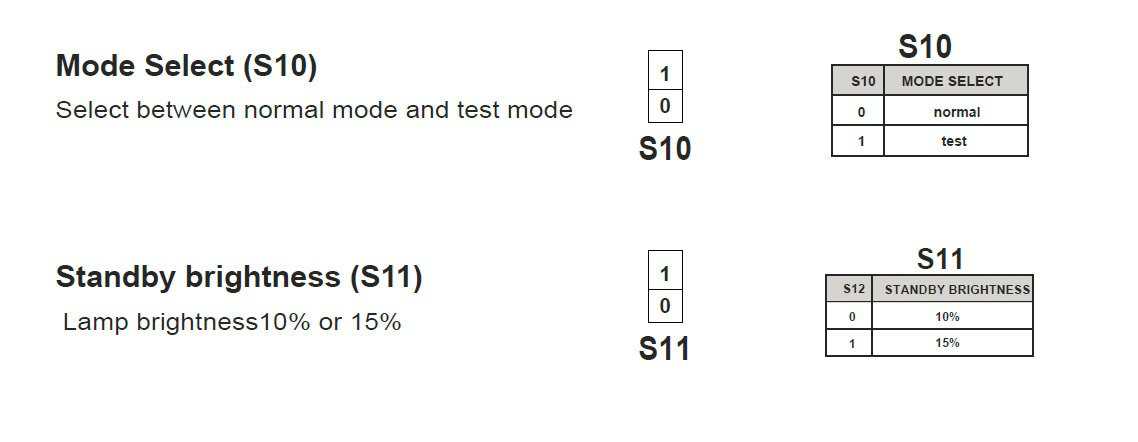

How to set dimming standby brightness:
