| Prod Model: |
TSMQ1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE RoHS |
| Type: |
Low-voltage |
| Series: |
Three |
| Certification: |
CE |
Product Description
Application

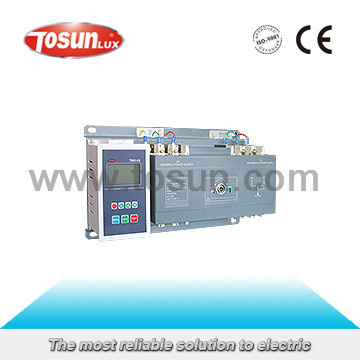

TSMQ1 Intelligent Double Power Changeover Switch is suitable for electrical system with AC 50/60Hz, rated working voltage up to 400V, rated working current 16A-1250A. The items are widely used in varieties of residence community, military installations, hospital, shopping mall, airports and so on.
The product consists of microcomputer controller and switching changeover device which includes the function: auto control switch, manual control switch, common switching on indicator, emergency switching on indicator, mechanical and electrical dual interlocking and so on. There are three states positions for the users to choose: common power(N) switching om, double off and emergency power(r) switching on.
Specification
Model | Applicable Circuit Breaker | Rated working current(A) | Conversion Action Time(s) | Utilization Category | Mechanical Life(times) | Electrical Life(times) | Rated Short-circuit Impulse Withstand Voltage(Uimp) | Rated Short-circuit Breaking Capacity lcu(kA) |
TSMQ1-100 | TSM2 Series | 10,16,20,25,32,40,50,63,80,100 | <=5 | AC-33iB | 5000 | 1000 | 8KV | 10 |
TSMQ1-225 | 100,125,140,160,180,200,225 | <=5 | 5000 | 1000 | 10 |
TSMQ1-400 | 225,250,315,350,400 | <=6 | 3000 | 1000 | 10 |
TSMQ1-630 | 400,500,630 | <=6 | 2500 | 500 | 12.6 |
TSMQ1-800 | 630,700,800 | <=6 | 2500 | 500 | 16 |
TSMQ1-1250 | 800,1000,1250 | <=6 | 2500 | 500 | 25 |
Why Choose Us?
1. Client's benefit first2. ReputationThe reputation of our company is much more previous than the profit of business!3. Specialized Have been focusing on this line specially for more than 21 years!4. Fully guaranteed qualityAny defective occurs during the warranty period, 100% free replacement!5. Competitive priceCountrywide networked supply of spare parts and goods makes our products be competitive.6. InnovationDeveloping new idea for products, packing, service, and so on continuouslyAbout Us We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products and so on.· Qualifications and Technological Strength We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "ROHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.· Contact Us Today We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.Let's get busy and pull together to create a better future.
For Further Informationwww.tosun.comwww.tosunlux.com
We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.
· Qualifications and Technological Strength

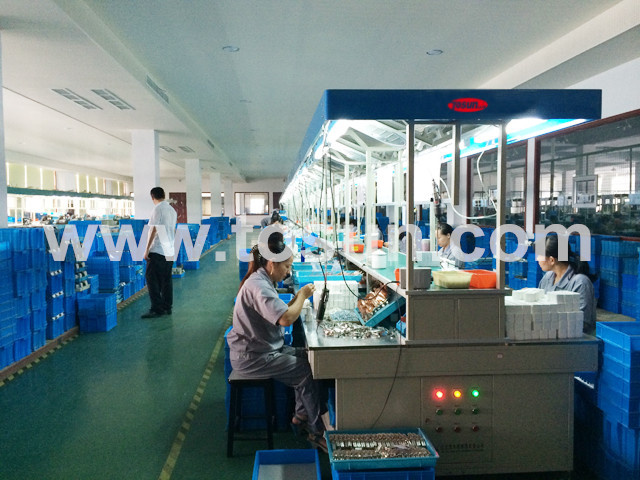

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.
· Contact Us Today
We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.
Let's get busy and pull together to create a better future.
