Intelligent Electronic Lock with Wireless Temperature Sensor for Container Transportation and Van Truck Cargo Delivery

Name: Intelligent Electronic Lock with Wireless Temperature Sensor for Container Transportation and Van Truck Cargo Delivery
Brand: all-electronics-online.com
SKU: 813749885
Availability: InStock
Rating: 4.5 (113 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

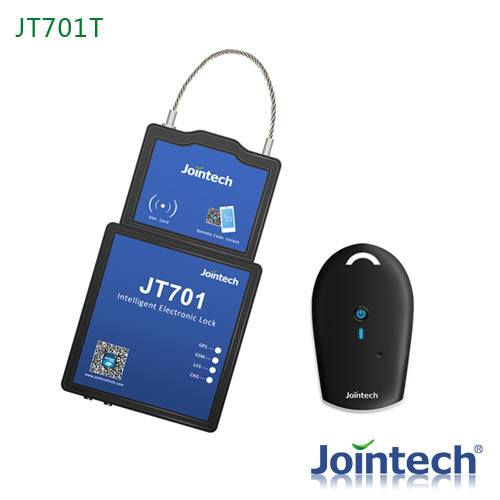

Prod Model:	JT701T

Product Description

Summary

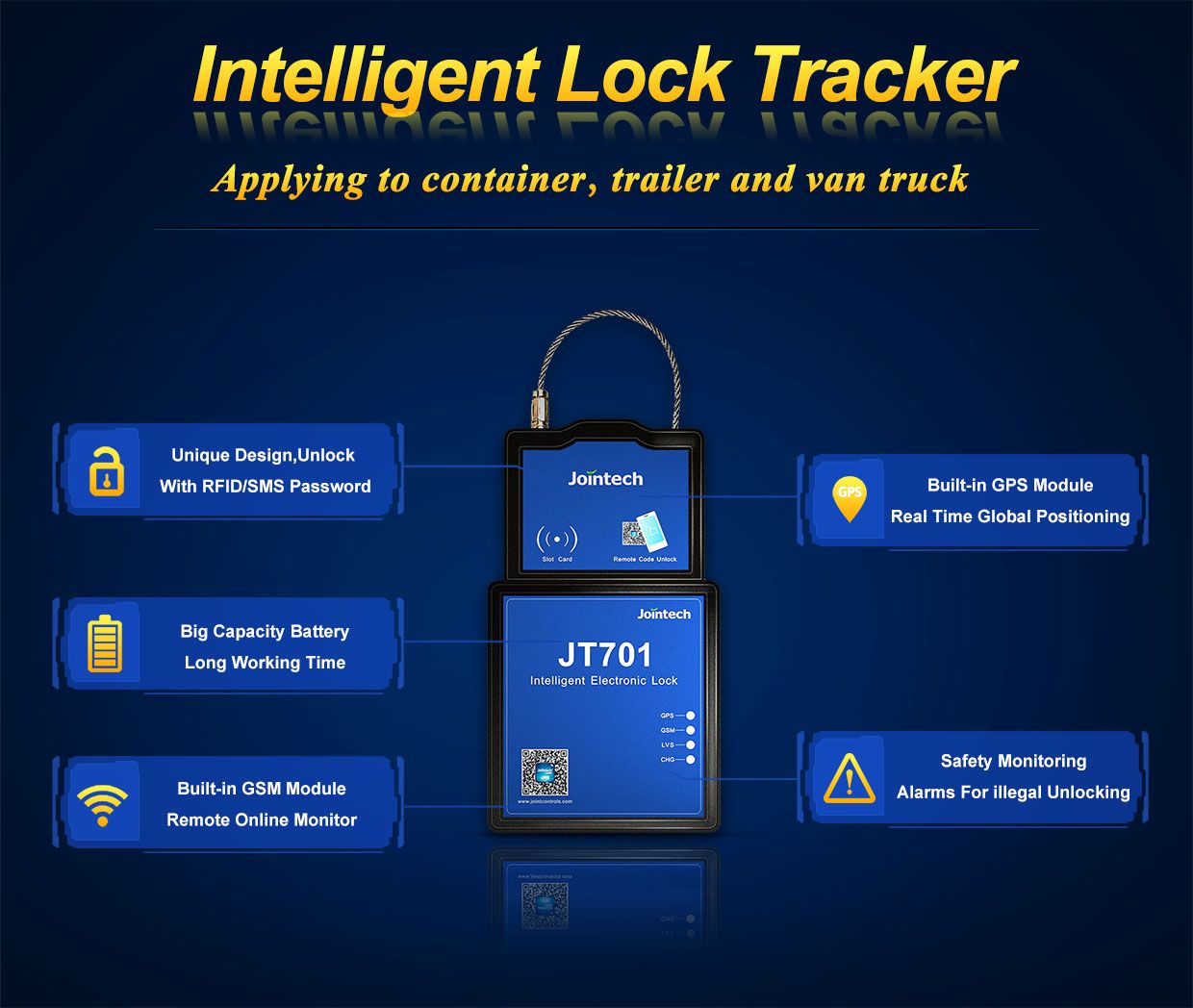

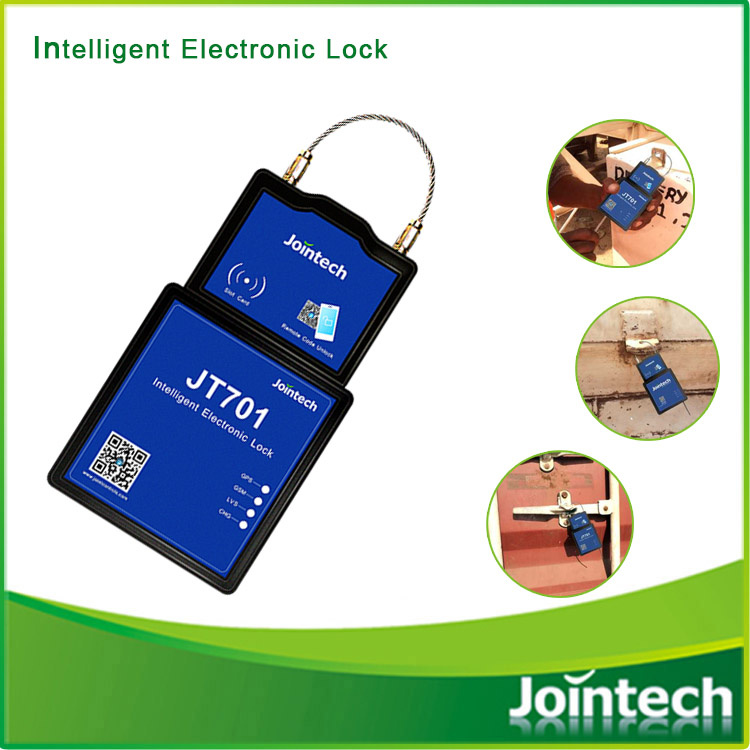

JT701T is developed base on JT701(it was designed and be used for the following fields: Container transportation and Van truck for cargo delivery.),the Appearance looks the same as JT701, but added the wireless receiving module inside ,So it can receive and monitor the indoor temperature or goods temperature in vehicle.

Features List

SN	Feature name	note
1	Easy Installation	No need fix it by screws
2	Build in 15000mA Rechargeable battery
3	Build in G-sensor	Detecting vibration
4	GPRS/SMS communication	TCP/SMS
5	Geo-fence	1 Geo-fence
6	Remote unlocking	Unlocking the device by command
7	Supports 9 alarms	steel string cut, swipe RFID tag, unlocking, Wrong password, Vibration, enter geo-fence, exit geo-fence, low battery, Open Back cap
8	Support 5 VIP numbers	SMS alarm receiving and SMS configure
9	Support 50 authorized RFID card
10	Wake up by 5 conditions	vibration, receiving SMS command/calling, swipe card, Locking/unlocking, RTC(every 30 minutes)
11	Wireless temperature sensors	Monitor the environment temperature And humidity

Technology parameter:

Item	Note
Size	195mm x 114mm x 37mm
Weight	700g( Include main unit, antenna, battery, shell)
Material	Engineer plastic
GPS Module	Ublox MAX-7Q
GSM module	Quectel M35
Working temperature	-20°C -- +60°C
Store temperature	-40°C -- +80°C
Humidity	5%-99%
Standard battery	Rechargeable battery 15000mAh
Average working current	<90 mA
Average current stand by	<100uA
Waterproof standard	IP67
Transmission mode	Support TCP(GPRS) or SMS(message)

Wireless temperature sensor

Adopted Technology	Active RFID
Modulation System	GFSK
Working Frequency	433MHz~435MHz
Transmitting Distance	150 meters
Temperature Deviation	± 0.3°C
Temperature Resolution	0.04°C
Power Supply Mode	CR2450(replaceable battery)
Standby Consumption	6μA
Battery Life	2 years
Waterproof Standard	P68

Applications
•Custom cargo management
•Express cargo monitoring
•Logistic cargo transportation
•Other asset monitoring & management

Tracking software:
Support multi platform: Client tracking software Web based tracking software and Real time tracking on mobile apps:

Shipment and delivery:

We will send the goods within 1-3 working days once received your payment with real time tracking No.

DHL/FedEx/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.

1. Sample and small order will been delivered within 1-2 working days after the receipt of payment.

2. For bulk order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
