Prod Model:	JT703B

Product Description

Summary

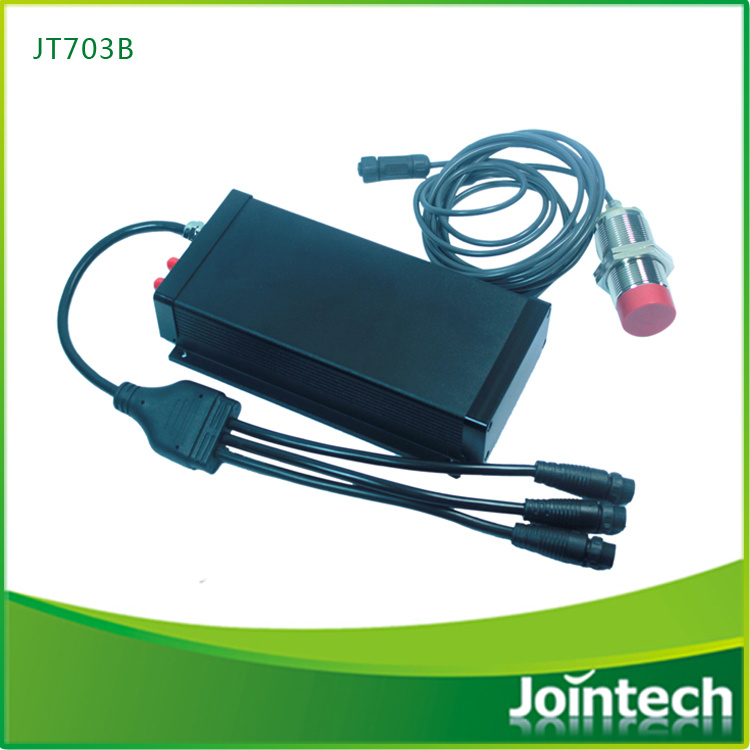

JT703B is a newly developed intelligent GPS tracking device especially apply to Trailers monitoring. It have big battery for long working life, with a metal detector to monitor whether cabinet is loaded or not. JT703B use premium GPS locating chip, able to quickly and accurately locate; use M35 communication chip, support GPRS transmission. 2G communication module, support GSM/SMS communication and GPRS network,support GSM Quad band: GSM800,GSM900,DCS1800,PCS1900 ,Container unloading/loading detecting.

Main Function Description

Two working modes: Tracking mode ; standby modeBuilt-in rechargeable Li-battery: 12000mAHExternal solar panel as auxiliary power supplySupport external power supply with 12-24VUnloading/loading status detecting

Technology parameter:

Dimension	193mm84mm34mm(not include cables)	Working current	Average current 90mA(1min 1 data)Standby working current:<100 uA
Weight	600g	Solar panel	polycrystalline silicon 5V/250mA
Material	Aluminum Alloy & engineering plastic ABS, IP67	Battery	12000mAH rechargeable Li-battery
Working temperature	-20°C -- 85°C	Storage temperature	-40°C -- +85°C
Relative humidity	5%-99%	Metal detector	Inductive metal detector M30x65 IP67 detecting distance≤18mm
GPS antenna	External ceramic antenna,1m	Data transmission	GPRS
GSM antenna	External antenna,1m	GPS locating accuracy	10m(no obstacle)

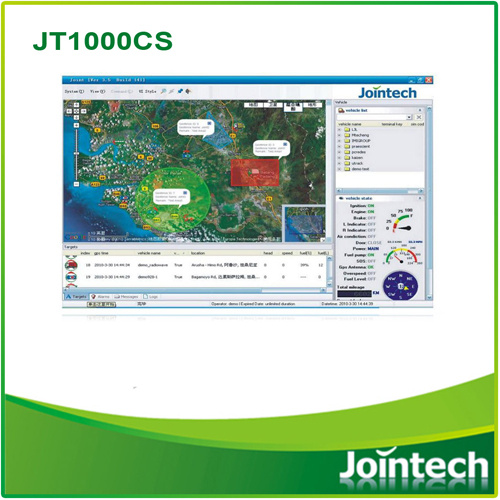

Tracking software:
Support multi platform: Client tracking software Web based tracking software and Real time tracking on mobile apps:

Shipment and delivery:

We will send the goods within 1-3 working days once received your payment with real time tracking No.

DHL/FedEx/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.

1. Sample and small order will been delivered within 1-2 working days after the receipt of payment.

2. For bulk order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.

FAQ:

Issue: Device not online
Possibility:	Solution:
GSM antenna not connect well	Check cable connection.
SIM card without fee	Feed the SIM card
IP and port setting wrong	Check setting
System working well or not	Check whether system can receive/send data
Issue:Not located
Possibility:	Solution:
GPS antenna not connect well	Check cable connection.
GPS antenna covered by metal	Change to a place directly view sky, antenna upward.
Antenna cable broke	Change a new antenna
Issue: metal detector no signal
Too long distance	Change the distance to reasonable range(0-18mm)
Cable not connect well	Check cable connection
