| Prod Model: |
GP3310K-200K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
LCD |
| Transformer: |
Isolation Transformer |
| Technology: |
Mcu Control, IGBT |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description

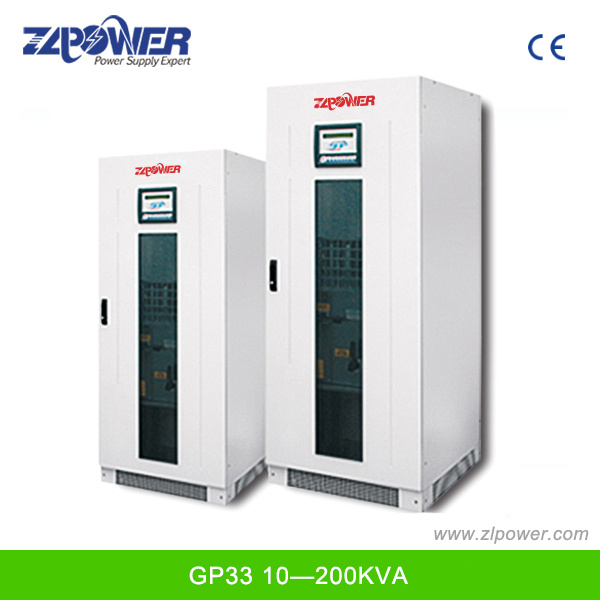

Intelligent Low frequency online UPS 10KVA-200KVA, Three phase UPS
Pure sine wave low frequency UPS
High speed MCU, IGBT technology
Application: Goverment, Building, Large computer room, Lab, and so on
Functions:
GP5300 series UPS is most advanced and new intelligent digital UPS by ZLPOWER. It is combined with high speed MCU, advanced CPLD technology, the sixth low consume large power, IGBT and static switch.
GP5300 series UPS have break the technology problems in stimulation circuit period. Digital control technology ensure that it can 100% apply to all kinds of grid environment, work with high stability. Each UPS capacity is from 10KVA to 400KVA, widely used in telecommunication, banks, negotiable securities, traffic, arms, security, electronics, industry, large enterprises and so on.
Products features:
1. Advanced digital circuit system
2. Intelligent management of batteries status
3. Intelligent inspect and monitor UPS systems every second
4. Intelligent communication tool remote control
5. The sixth generation IGBT inverter technology
6. High definition screen information management technology, humanity LCD display with Chinese and English, can show directly UPS status and operation, data records in table format, and events records, also can change language by main menu.
7. LED status shows operate steps and status directly.
8. GP5300 series UPS use touch screen with excellent ageing resistance function and case dealed with fluorin and carbon technology, lead it is environmental and durable; The UPS adopts knock-down modular design, ensure it easy to maintain and save resources much; It is with new advanced turbofan which can release heat well and save energy; It also use non-circumfluence controlled circuit, can save electric much; GP5300 UPS adopts green commute and inverter technology, ensure to provide clear energy for users; Its advanced digital circuit technology let whole UPS with 80% more life than before.
9. Excellent load characters can fulfill with suddenly change load from 0 to 100%, and no need to invert to bypass, ensure output stable and reliable.
10. Well-equipped protection function, including alarm function and excellent input and output Undervoltage overflow protection, input surge protection, phase failure protection, battery overcharge and over discharge protection, output overload short circuit protection, over heat protection and so on.
11. High quality active features, adopts instantaneous control method and virtual value response control and so on. This function realizes high active adjust and decrease output voltage degree of distortion.
12. Three phase can equal stable voltage and control separately, in order to control instantaneous overload degree of equal, realize output imbalance 100% load.
13. Optional input harmonic filter or Twelve-pulse rectifier, can restrain input harmonic pollution efficiently, improve UPS input power factor, and minish input harmonic current.
14. Optional battery inspection module, can test specification of every battery, and show on display. If battery faulty, will alarm immediately and notice administrators.
15. Special set: Can set UPS work status according to requirements of electric. User can choose from UPS operate mode, ECO save energy operate mode and EPS operate mode.
| Model | GP3310 ~ GP33200 series UPS |
| Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
| Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
| Operate type | Double conversion online type |
| Input | voltage | 220V/380, 230/400, 240/415V, ±25% |
| Phase | Three phase +N+G |
| Frequency | 50Hz/60Hz±5% |
| Input power factor | 0.95(with input filter) |
| Soft start | 0-100% 5sec |
| Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Phase | Three phase +N+G |
| Frequency | 50/60Hz (1±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Power factor | 0.8 |
| Output wave | Pure sine wave |
| Distortion | Linear load <3%, non linear load<5% |
| Battery voltage | Standard battery voltage | 360V/384V |
| Floating charge | 405V/432V |
| Terminal voltage | 315V/336V |
| Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
| Maximum discharge current | 28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
| Main Function | Active voltage change | 0-100%±5% |
| Instant recover time | <10ms |
| Imbalance voltage | <±5%,<±1%( Balance load voltage) |
| Overload capacity | 125%→10min,150%→1min |
| Static switch | Automatic |
| Protection | UPS over current, short circuit, battery low voltage, over heat |
| Cold method | Compel aeration ( temperature control mode) |
| Noise | 60-65dB |
| Display | LED; LCD display |
| Communication port(Optional) | RS232, SNMP, dry-contact |
| Alarm | Alarm with buzzer and indicators |
| Environment | Temperature: 0-40C Humidity: 0-90% |
