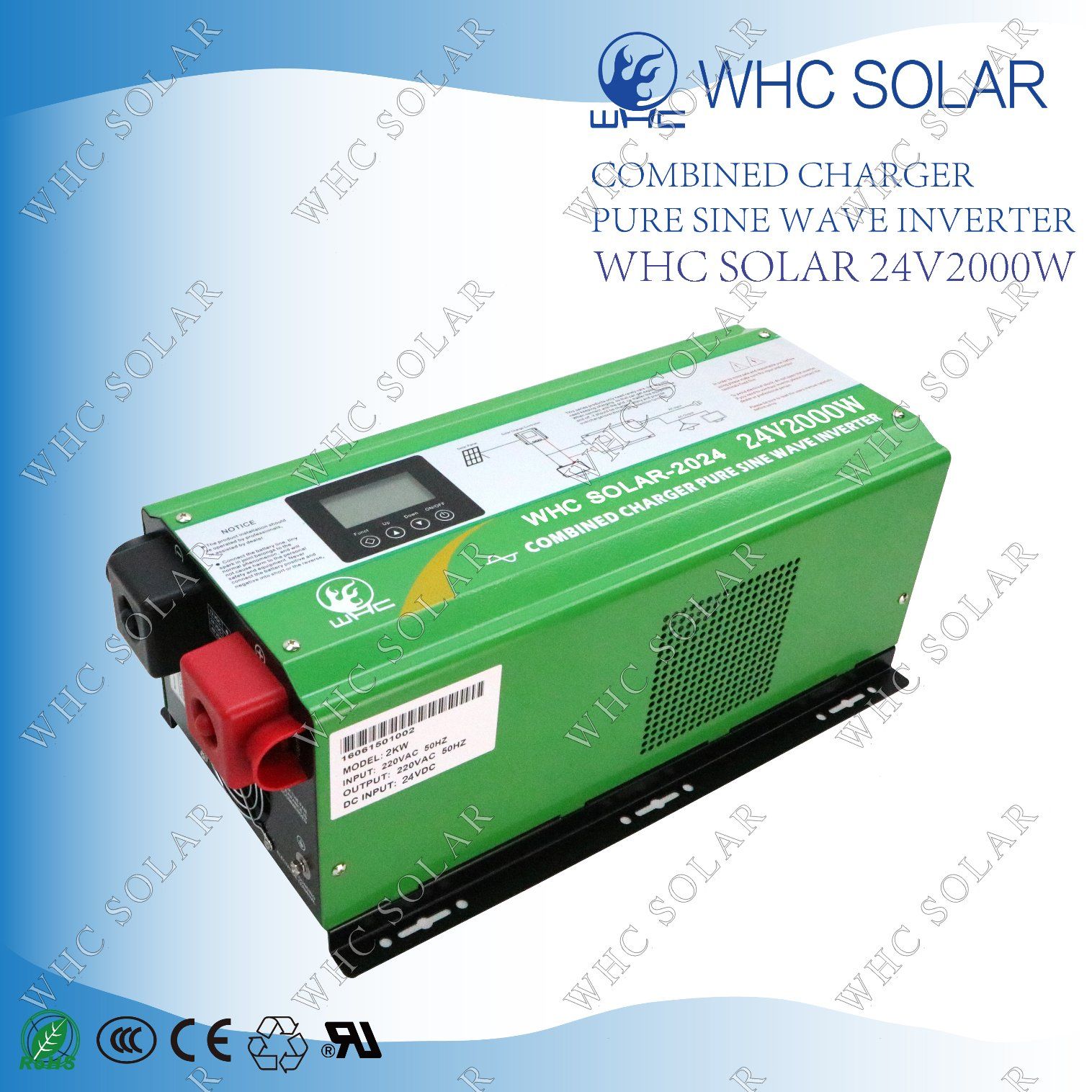

Intelligent Low Frequency Solar Power 2000W Inverter

Intelligent Low Frequency Solar Power 2000W Inverter
Price: US $ 176.2-209.3/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: WHC SOLAR 2024
Input Voltage: 24V
Output Frequency: 50Hz/60Hz
Output Current: 30A
Disp;Ay: LED&LCD
DC Or AC Priority: Can Be Controlled
With Solar Charge Controller: Optional
Power Source: Solar Power
Weight: 18.5kg

Product Description

Product Introduction



Brief Introduction
      Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is
a critical balance of system-component  in a solar power system, allowing the use of ordinary AC-powered equipment.
WHC SOLAR is confident that we can provide our clients with the highest quality
micro control power inverter.We are looking forward to establishing business relations you.


Intelligent Low Frequency Solar Power 2000W Inverter


Product Parameters
Rate power1000W1500W2000W3000W
BatteryRate voltage12VDC/24VDC/48VDC24VDC/48VDC
Charge current30A(default)-C0-C6can be set
Battery typeU0-U7 can be set
InputVoltage range85-138VAC/170-275VAC
Frequency45-65Hz
OutputVoltage range110VAC/220VAC;±5%( Inverter mode)
Frequency50/60Hz±1%( Inverter mode)
Output wavePure sine wave
Switching time<10ms( traditional load)
Efficiency>85%(80% Resistance load)
Overload110-120%/30S;>160%/300ms
ProtectionBattery overvoltage/lowvoltage, overload, short circuit protection, oevertemperature protection, etc.
Operating ambient
  temperature
0-40ºC
Storage ambient temperature-15 - +50ºC
Operating/Storage ambient0-90%No condensation
Machine Size: L*W*H             (mm)453*220*180
Package size: L*W*H             (mm)580*290*220

Product Details Show


WHC SOLAR Technology Co., Ltd. is a collection development, production, and sales of photovoltaic tech enterprises, It's the first one in China dedicated solar home systems research and development, production and sales of photovoltaic enterprises, the company since its inception in 2005 established the quality of priority, the concept of brand management, and the use of simple, easy to maintain, reliable quality as a product design, which won a number of national patent and passed CE, RoHS, ISO9001: 2008 quality management system certification. Our main products include: Solar Power Systems, Solar Panels, Solar Controller, Solar Inverter, Solar Battery, Solar Energy kits etc. WHC SOLAR has advanced production testing equipment and strong R & D team, professional QC team and excellent business sales team. The company currently produces the vast majority of products covered by the requirements of customers on the use of solar home systems, and products in the industry with the most comprehensive and professional characteristics. Sold to: Africa, South America, India, Nepal, Cambodia, Bangladesh, Vietnam, the United States, Japan, Korea, and other countries and regions. WHC SOLAR as committed to providing customers: Reliable products, efficient service, as well as more specialized solutions. We can provide OEM & ODM, and product design and packaging services according to customer needs.
