| Prod Model: |
offline UPS |
| Display: |
LED/LCD Can Choosen |
| Output Power Factor: |
0.6 |
| Colour: |
Black |
| Warranty: |
3years |
| Delivery Time: |
3-5days |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Over Load//Voltage, Short Circuit etc |
| Application: |
Computer, POS,Computer Peripherals |
| Brand: |
Upsen or OEM |
Product Description

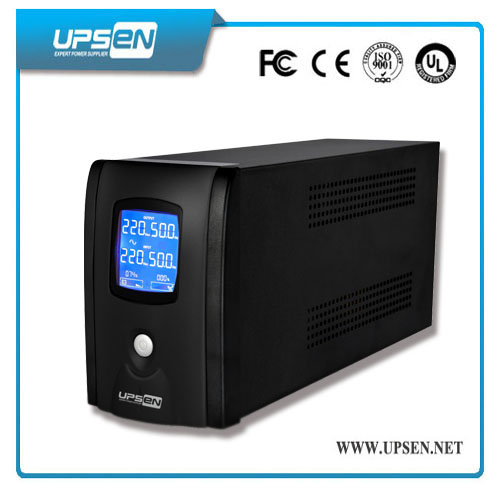

Intelligent Offline AVR 400Va UPS Backup Power Supply For Computer / POS
1: Standby UPS with Offline UPS technology and long back up time
2: Standby UPS with capacity from 400Va to 3000Va
3: UPS with self test function when UPS Starts
4: UPS with 12Vdc 24Vdc 48Vdc voltage
5: UPS Model: Intelligent Offline AVR UPS Future Star Series 400-3000Va (1ph in/1ph out)
Key Features
1: Intelligent CPU control and management, the function is rich, support RS232 and USB communication monitoring;
2: Adopt the full bridge inverter technology, the system more stable and reliable;
3: Wide input voltage and frequency range; Overload alarm message and automatic protection function;
4: The battery mode no-load automatic shutdown function
5: Depending on the type of perfect detection and overload, short circuit protection (battery mode);
6: At least the periphery of the circuit components, high reliability, easy maintenance;
7: Can match various generator is used
Application
UPSEN Future Star Offline AVR UPS mainly used for computer, POS,Computer Peripherals.
| Technical Specification |
| Model | F400 | F500/650 | F700 | F800 | F1000 | F1200 | F1500 |
| Power factor | 0.6 |
| Load type | Personal computer and other PC peripheral devices |
| Mains voltage range | (140~290) ±5Vac |
| Mains frequency range | (40~70)±1Hz |
| Output voltage range(Line mode) | 220Vac/230Vac±10%(Sine wave) |
| Output frequency range (Line mode) | Synch with mains input |
| Output voltage range (battery mode) | 220Vac/230Vac±5%(Square wave) |
| Output frequency range (battery mode) | (50/60)±1Hz(frequency self-adapt system) |
| Battery No-load protection | Auto protection. The UPS auto shutdown after 2min no load detected |
| Transfer time | ≤8ms |
| Battery backup time* | >6Min(half load) |
| Battery protection | Auto protection. The UPS auto shutdown when battery voltage is low or high. |
| Battery charging time | 8 hours to 90% |
| Short circuit protection | Auto protection. Output shuts off and the buzzer beeps continuously |
| Overload protection | 110% load percentage >120%, output shuts off, buzzer beeps continuously. |
| Operating temperature | 0ºC~40ºC |
| Storage temperature | -15ºC~45ºC |
| Relative humidity | 0%~90%(No condensation water) |
| Noise | ≤35dB(1m from front panel) |
| Communication interface | Intelligent RS-232/USB(Optional) |
| Network protection | RJ45/11 surge protector (Optional) |
| Size/L×W×H(mm) | 230*90*145 | 291*90*145 | 330*90*145 | 340x122x190 |
| Net weight | 4 | 4.5 | 5 | 5.2 | 8.4 | 9.4 | 10 |
|
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
