Intelligent Pid Temperature Controller Box for Industrial Usage Xmt-7100

Name: Intelligent Pid Temperature Controller Box for Industrial Usage Xmt-7100
Brand: all-electronics-online.com
SKU: 821778115
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 12.6-14.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMT-7100

Product Description

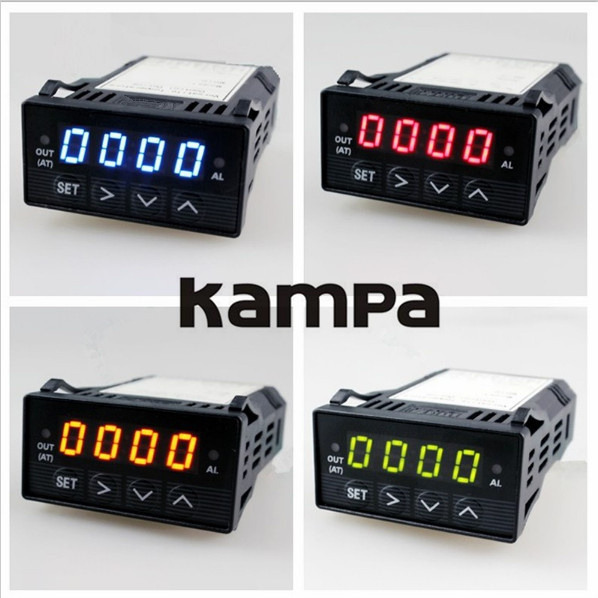

Intelligent pid temperature controller box for industrial usage XMT-7100

1. Product Highlights
Thermocouple: T, R, J, B, S, K, E, Wre3-Wre25.
RTD: Pt100, Cu50.

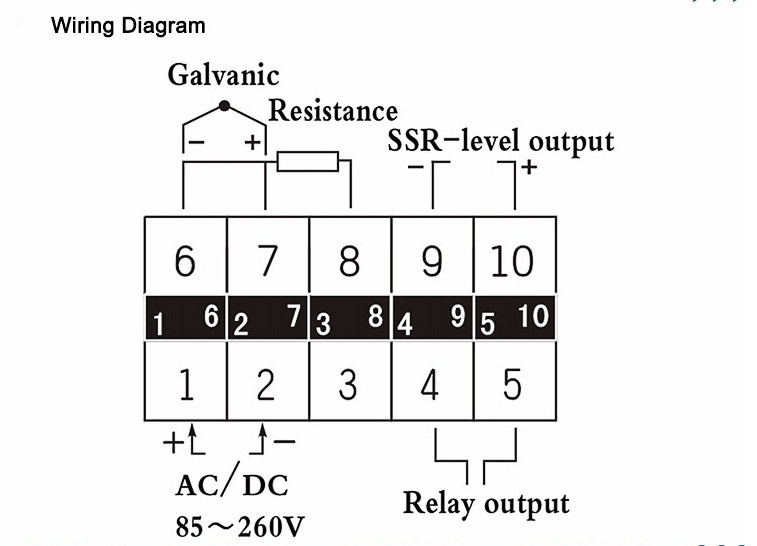

1 Relay output, 1 SSR controlled output.
Time proportional PID controlled output to either Relay or SSR
Three built-in algorithms that fit most control objects and various applications.
Temperature can be set to display in either Fahrenheit or Celsius degrees.

2. Specifications
Supply voltage: 18-265V AC or DC
Power consumption: < 2 Watts.
Sampling speed: 4/sec.
SSR activated voltage: open circuit: 10V; short circuit: 40mA.
Accuracy: 0.2% of full scale.
LED Display: Red, 0.28 inch
Out of range indication: "EEEE".
Ambient temperature requirements: 0 to 50 C (32 to 122 F)
Humidity requirement: < 85% RH.
Relay Contact: 220VAC, 3A.
Controller dimensions: 48 x 24 x 75 (mm).
Opening for installation: 44 x 20 (mm)
