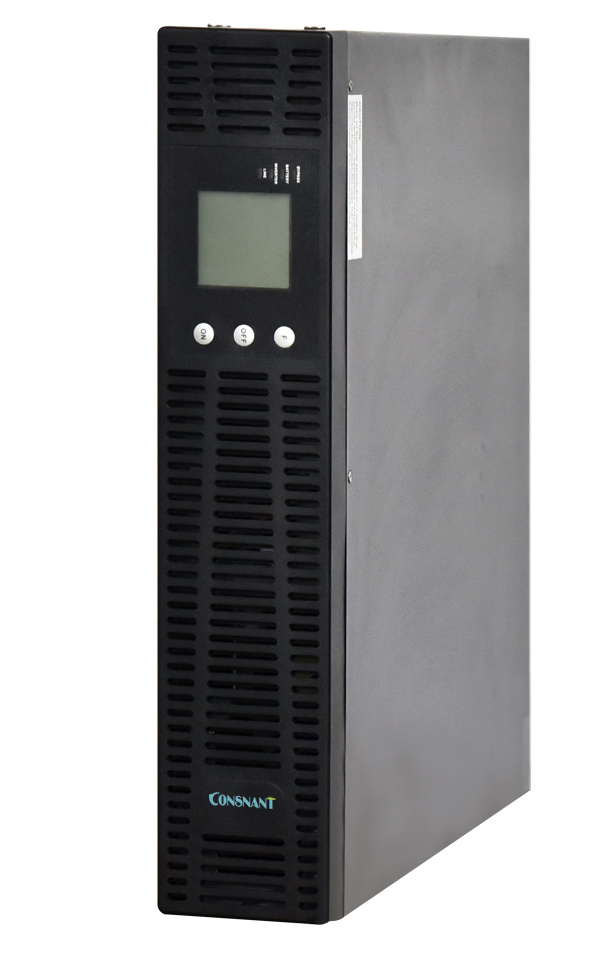

Intelligent Power Monitoring High Frequency Rack Mount Online UPS
| Price: |
US $ 150-900/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CNH110RT |
| Phase: |
Single Phase |
| Type: |
On-line |
| Application: |
Office |
Product Description
Key Features: 1) Large blue LCD display interface in English, user-friendly2) Rack-Tower convertible3) With ECO (economic operation mode) can be highly efficient energy-saving, reduce user costs4) Double-conversion online design, so that the output of the frequency UPS tracking, lock-in voltage regulator,filter noise low distortion, without interfering with the pure sine wave power supply fluctuations.5) Advanced Digital Signal Processing (DSP) microprocessor technology to ensure the consistency and reliabilityof UPS.6) With battery hot-swapping function

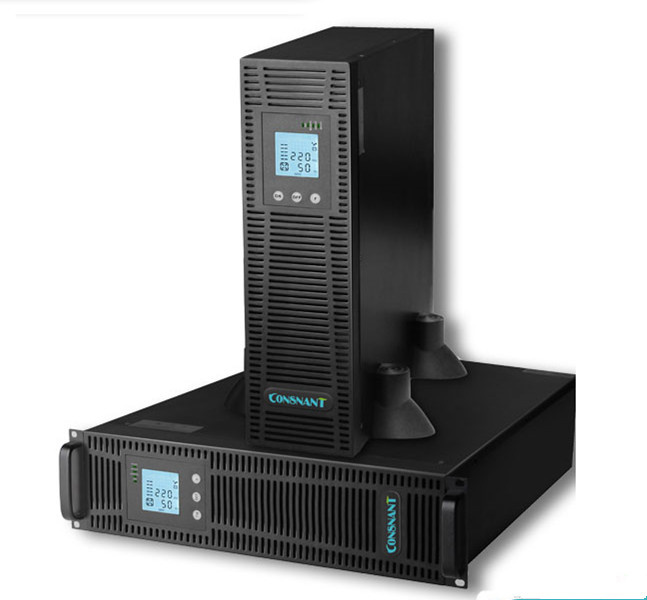

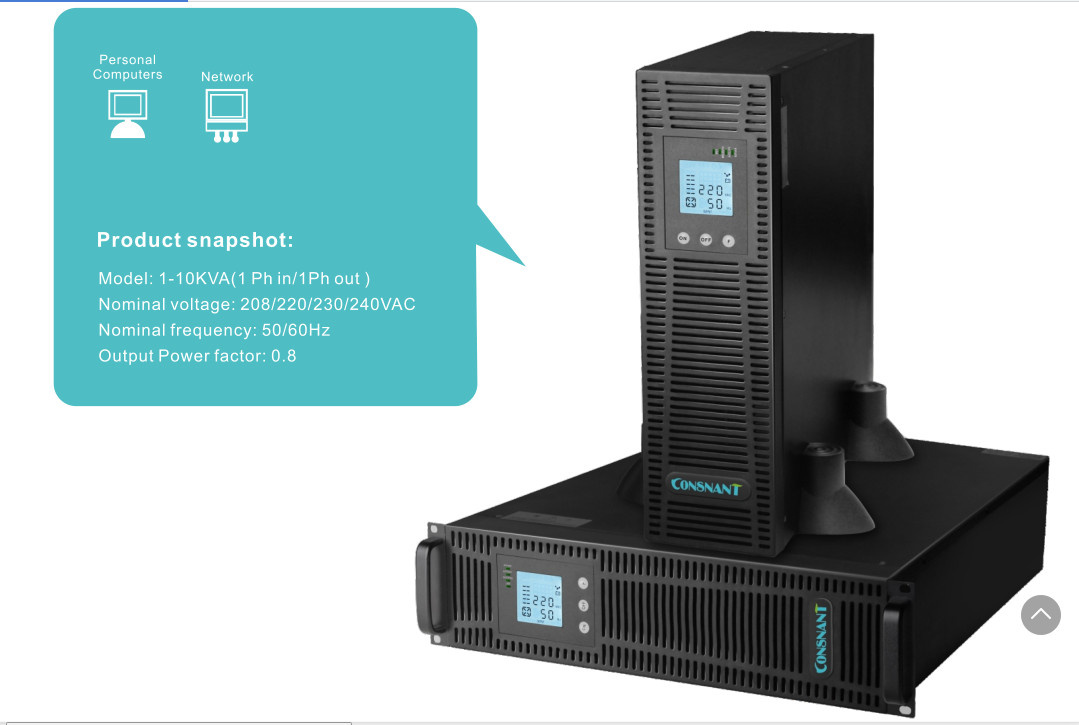

Rack-Tower convertible:- Rack-Tower convertible, the lug required for rack installation and the stent required for tower installation were random standard configuration.
- Unique optional angle LCD screen patented design, the perfect match tower/rack conversion installation mode. Through the function buttons on the panel, user can easily select the direction of the tower installation mode or rack mounted mode is in the consistent with the LCD screen text display, and do not need to turn the LCD screen, which can be easily view the LCD display data contents from normal human standing perspective.
ECO(Economic Operation Mode)Function:- The power to the load is supplied from the mains input when the mains input within a fixed range, and the inverter is idle until the mains input fails. With ECO(economic operation mode) can be highly efficient energy-saving, reduce user costs.
Various choice and Installation Management:- Large LCD display, show loading power, batteries capacity, input and output factor; and error code, and easy for user to operate and maintain.
- RS232 local monitor. The RS232 is standard with UPS provide free monitoring software.
- USB port is optional. Through the USB cable can be connected with computer, and use the bundled monitoring software can be easy realizing the local monitoring
- USB communication port is optional. For CNH110RT series UPS, in addiction to the fixed USB interface, you can also choose Goldfinger snap-gauge structure port interface. User can invest by stages, purchase when you have demand.
- SNMP card is optional. SNMP can connect UPS with Etherne for remote monitor.
DSP Full-digital Control:- Adopt digital control, each performance index excellent, to avoid the analog device failure risk, and increase the control system stability.
Flexible Setting and change due to demand:- Extensive expansion capabilities, comprehensively meet customer's requirements
- Online maintenance function, can be safety to maintain while continuously provide the power to the loads
Intelligent Power Monitoring and Management Software WinPower 2003:- Support Microsoft Windowsoft95/Me/2000/XP/Unux operating system. Suit for TCP/IP local area network;
- Support timing boot up/ shut off UPS function;
- Support timing UPS self-est function;
- Support graphically displayed UPS status function in real time;
- Support multi-language and English platform;
| CNH110RT 1-10KVA |
| Model | 1K | 1KS | 2K | 2KS | 3K | 3KS | 6KS | 10KS |
| Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8KW |
| Nominal Voltage | 220/230/240VAC Single phase 2 wire+G |
| Nominal Frequency | 50/60Hz |
| Input |
| Voltage Range | 115~300VAC | 120~275VAC |
| Frequency Range | 50Hz: (46~54Hz); 60Hz: (56Hz~64Hz) |
| Power Factor | >0.98 | 0.99 |
| Output |
| Voltage Precision | 220/230/240×(1±2%)VAC |
| Frequency Precision | 50/60Hz±0.05Hz |
| Power Factor | 0.8 | 0.8/0.9(Optional) |
| Harmonic Distortion | Linear load <3% Non-linear<6% |
| Overload Capacity | Load>110% for 47s;
Load>150% for 25s;
Load>200% for 300ms | 105%<=125% for 60s;
125<=150% for 30s;
Load>150% for 0.5s
3:1 |
| Current Crest Ratio | 3:1 |
| Transfer time | 0ms(AC mode↔DC mode);(AC mode↔Bypass<4ms) |
| Battery |
| DC Voltage | 36VDC | 72VDC | 96VDC | 192VDC or 240VDC |
| Recharge Time | 5hours to 90%(it means standard model which battery inside UPS) |
| Charging Current | 1A | 4A/8A | 1A | 4A/8A | 1A | 4A/8A | 4A |
| Panel Display |
| LCD Communication | UPS status, input/output voltage and frequency, battery voltage, capacity, load temperature, history recods, adjust voltage, ECO mode |
| Communication Port | RS232, SNMP Card(Optional0, USB port(Optional) |
| Working Environment |
| Temperature | 0ºC~40ºC |
| Relative Humidity | 0~95%(Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Elevation | 1500m |
| Noise Level | <45dB | <50dB | <50dB |
STANDARD:Conform to GB/IEC regulation: EMC:GB7260.2/IEC62040-2 -GB/17626.2~5/IEC61000-4-2~5SAFETY:GB4943Note:Peoduct specifications are subject to change without further notice.
