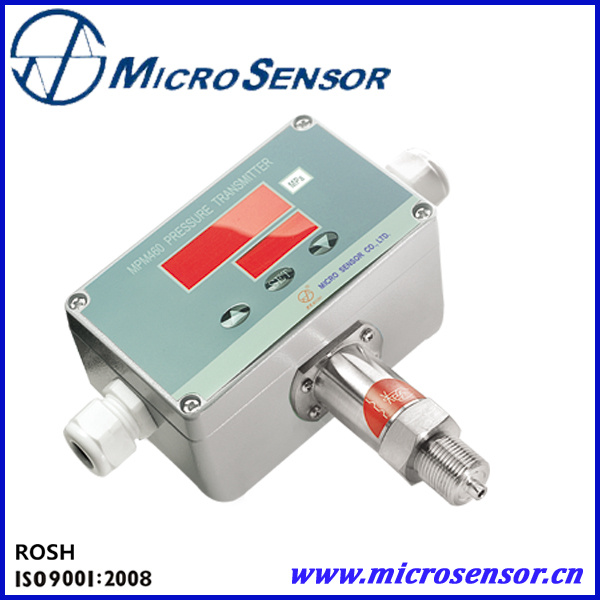

                                 Intelligent Pressure Transmitting Controller MPM460

Features:
     1.Wireless transmitting;
     2.High accuracy;
     3.IP65;
     4.Easy operation;
     5.Optional pressure port;
     6.LED display

Applications:
    1.Chemical industry;
    2.Ocean;
    3.Aviation;
    4.Metallurgy;
    5.Drainage;
    6.Science

Options:
     1.Gauge, sealed gauge, absolute;
     2.Flush diaphragm;
     3.RS485 communicator;
     4.Fixed flange

 Description:
MPM460 Pressure Transmitting Controller is an intelligent multi-functional product, it can be used in outdoors and bad-environment spots to measure, transform and control pressure in chemical industry, metallurgy, drainage, power supply, environment, aviation and other fields.

Specification:
Pressure range: Gauge -0.1…0~0.01…100MPa
Overpressure: 1.5 time FS or 110MPa(min. Value is valid)

Output signal: Analog 4~20mADC, 0~10/20mADC or 0/1~5VDC; Digital RS485
Accuracy: +0.25%FS(typ. ); +0.5%FS(max. ) including analog output's lin., rep. And hys.
Zero temp. Drift: +0.03%FS/º C(≤ 100kPa) +0.02%FS/º C(>100kPa)
FS temp. Drift: +0.03%FS/º C(≤ 100kPa) +0.02%FS/º C(>100kPa)

Relay quantity: 1~5
Load: 240V/5A(AC)or 30V/5A(DC)
Relay life: >100000 times
Indicator: 4 digit 0.56 inch LED digit indicator; Display range: -1999~9999
4 digit 0.36 inch LED situation display indicator
Power supply: 220VAC± 15% or 220VDC or 24VDC

Environment temp.: -10º C~60º C Frequency: 0~300Hz
Media temp.: -10º C~80º C Acceleration: ≤ 3× 9.81ms-2

Storage temp.: -40º C~125º C Impact: ≤ 10× 9.81ms-2

Pressure port: Stainless steel 1Cr18Ni9Ti Diaphragm: Stainless steel 316L
Electronic housing: Aluminum-alloy Sealing: Viton or full-welded

Order Guide

MPM460

Multi-functional Intelligent Pressure Transmitting Controller

MPM460W

Multi-functional Intelligent Level Transmitting Controller

MDM460

Multi-functional Intelligent Differential Pressure Transmitting Controller

Range

Pressure range: mH2O, kPa or MPa

[0~XmH2O]Lm

Level

0~1200mH2O, X=actual measuring level, L=cable length(unit: m)

[0~X]kPa or MPa

Pressure

-0.10~0.01100MPa, X=actual measuring pressure

Differential pressure

Pressure  (kPa)

Overpressure kPa

Pressure  (kPa)

Overpressure kPa

+

-

+

-

0~35

70

35

0~700

1400

700

0~70

150

70

0~1000

2000

1000

0~100

200

100

0~2000

4000

1000

0~200

400

200

0~3500

7000

1000

0~350

700

350

Code

Output signal

E

4~20mADC

F

1~5VDC

J

0~5VDC

Q

0~10mADC

U

0~20mADC

R4

RS485 interface

Code

Construction material

Diaphragm

Pressure port

Housing

22

SS 316L

SS

Aluminum-alloy

24

SS 316L

SS 316L

Aluminum-alloy

25

Tantalum

SS

Aluminum-alloy

35

Tantalum

Hastelloy C

Aluminum-alloy

Code

Others

C1

M20×1.5 male, face type seal

Only MPM460

C3

G1/2 male

C4

G1/4 female

Only MDM460

C5

M20×1.5 male, waterline seal

Only MPM460

G

Gauge

A

Absolute

S

Sealed gauge

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male,

Jn

Relay quantity, n=1~5

V1

Power supply 24VDC

V2

Power supply 220VAC

F1

Fixed flange

Only MPM460W

MPM460    [0~200]kPa      F         22  C3AJ1V1                                    the whole spec
