Intelligent Pulse 12V 50A Battery Charger 800ah

Name: Intelligent Pulse 12V 50A Battery Charger 800ah
Brand: all-electronics-online.com
SKU: 804228375
Availability: InStock
Rating: 4.7 (89 reviews)

Price:	US $ 48/Piece
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V 50A
Charger Current:	10A
AC Input:	220V
Protection:	Anti-Access, Overload, Short Circut
Weight:	3.5kg
DC Output Voltage:	12V
Type:	Ni-MH Battery
Charger Type:	Electric Charger
Nominal Voltage:	12V
Size:	AAA
Socket Type:	as Per Your Request

Product Description

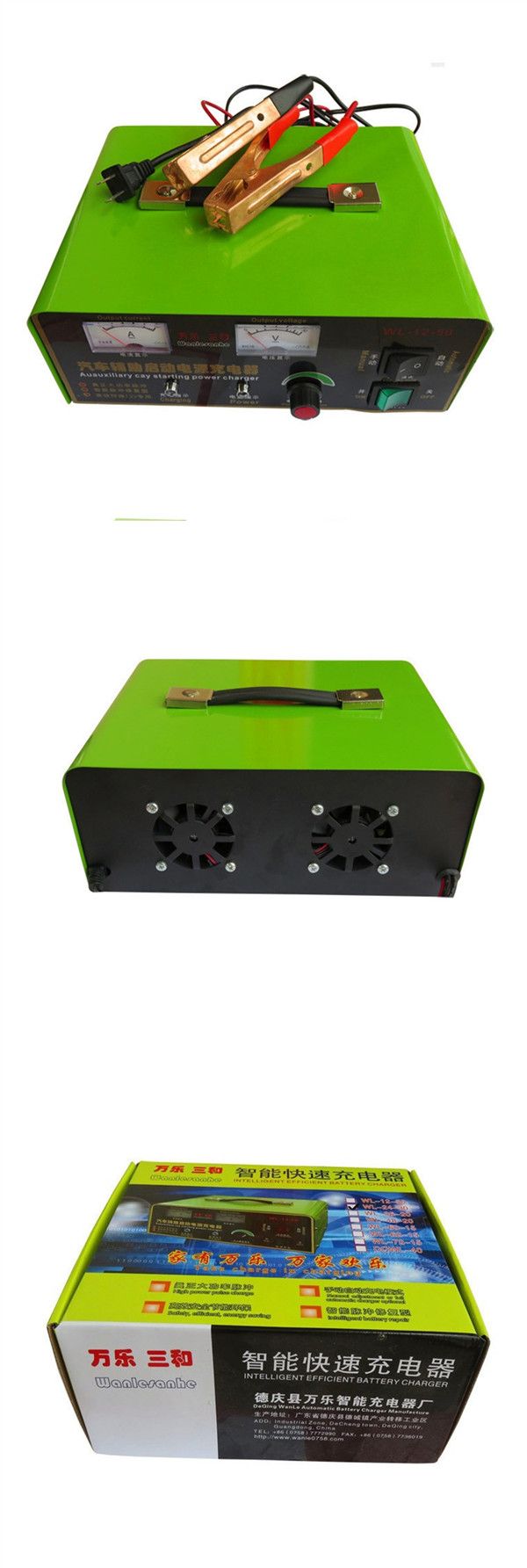

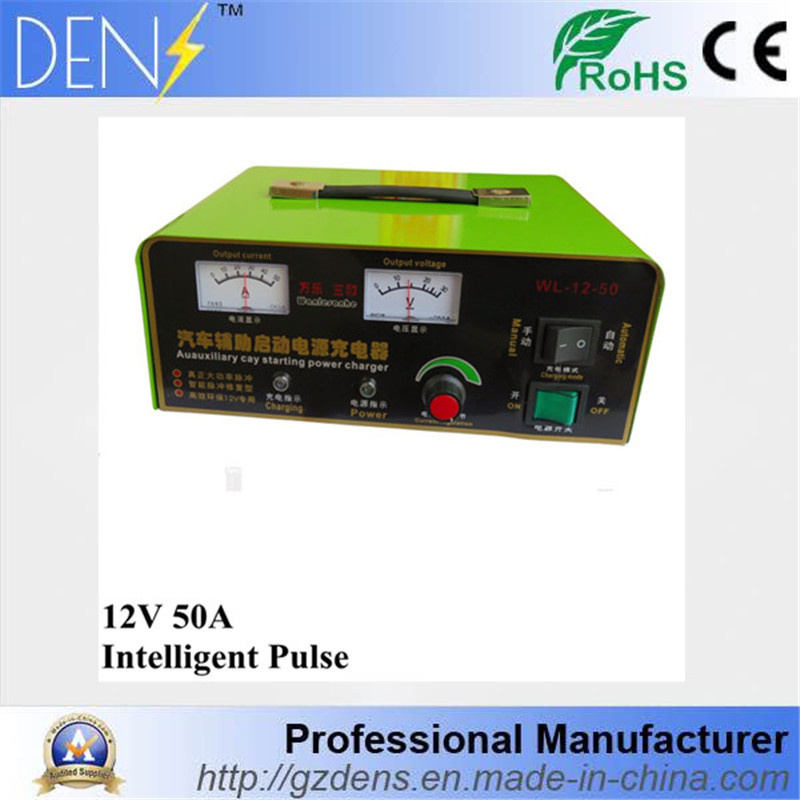

Intelligent Pulse 12V 50A Battery Charger 800AH

Describition

1,this product is applicable to the 12V Below 8 0 0AH lead acid battery ,including maintenance-free,GEL,UPS,wet batteries;

2,Advanced pulse width modulation (PWM) technology is used to automatically charge batteries through a 4-stage charging cycle

3,The battery life can be significantly improved by digital pulse repairing method for the power chips of micro computers

4,Constant voltage charging will be arranged to provide various protections and avoid over-voltage,over-current,over-beating and electrode-positive,ect.

5,When the red indicator light of charging stops flashing or is dark,and as well as the current indicator fell to about 1 bars condition,the charging mode will change to floating charging,means the battery charging being finished.

6,The 12V input when automatic charging mode,Full electric voltage of 13.8V to 14.3V,about 16V input when manual charging mode,must be artificial monitoring in case of overcharge if manual mode charging,suggest stop charging when the battery beating.

7,Do not block cooling hole or use the charger with the cooling fan off.

Advantage

1,There has strong fan,the speed can be 4500/min;

2,Stable performance,stopped automatic when charge full,pulse auto revive and maintenance battery;

3,Overheating protection:when the temperature of charger is over 105 ° C,the charger will stop working,when the temperature reduce to 80° C or turn off the power 10 minutes the charger can work again;

Short circuit protection:when there has short circuit the charger stopped output and has a beep alert;

4,when the battery single cell voltage is lower than 1.5V the charger can't start and has a beeb alert,avoid damage battery;

5,when the polarity of charger is adverse with battery,the charger will close automatic and has beeb alert.

The difference between manual and automatic mode

Manual: It can be used for small capacity,Low temperature(under 0 ° C) and large Internal resistancethe battery,charging current is bigger than automatic so it take less time than automatic,but there must has human monitoring to avoid damage battery,when the battery shell has temperature must stop charging!using manual mode can't more than 1 hour!

Automatic:pulg AC power first then connect battery with charger,it will recognize volgate automatic,telligent and convenient.

Highly recommended:in the winter(under 0 ° C),use automatic mode to charge full first then use manual mode for 0.5-1 hours.

LED screen: it shows both voltage and current, charging Percentage and differnt charging mode with Chinese.

Alligator clips: red is anode,black is cathode

Introduction of 5-stage mode

No-load mode: when there has no load connected with charger,the LED Screen will show voltage only,the power is about 2W;

Constant current: means the battery voltage is lower than the set voltage of charger,then the charger supply constant charging current to maintenance both battery and battery charger;

Constant Voltage: advanced pulse width modulation (PWM) technology,control the charger's current and output voltage accurate,avoid overcharge;

Floating charge mode: when the battery is going to be charged full,the charger will stop charging,but still supply constant floating voltage and small current to battery;

Trickle charge mode: when the battery voltage and current is approaching the set voltage and current,it will turn to trickle floating charge from automatic mode,it means charge full,also can be charged with floating mode.

Important note: there has only 220V for output voltage,please make sure will be suitable for your country's AC power,if you need 110V,we can customize for you,please feel free to concact us.

We will offer the right adapter of output pulg for your country!

Parameters

Input Voltage	150-250V(110V must be customized)
Output voltage	12v
Output current	55A peak
Frequency	50-60HZ
Capatity	6-800ah
Power	600w
Length of output wire	80cm
Length of input wire	120cm
dimension	255205105cm
Net weight	3.5kg
