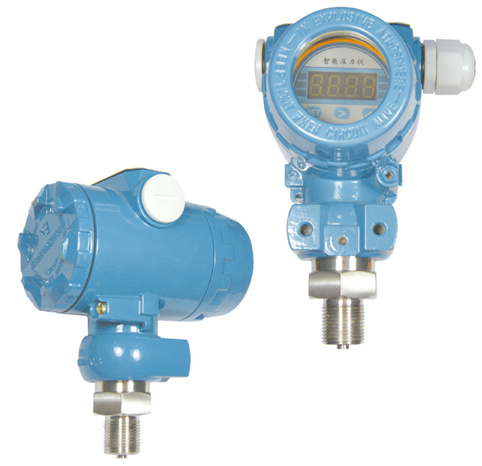

Intelligent Smart Pressure Transmitter with Display Hart RS485 (PCM460)

Intelligent Smart Pressure Transmitter with Display Hart RS485 (PCM460)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: PCM460
Markets: North America,South America,Eastern Europe
Pressure Reference: Gauge, Absolute, Sealed Gauge
Output: 4 to 20mA + Hart, 4 to 20mA + RS485
Supply: 24VDC
Housing Material: Copper Aluminum Alloy
Sensor Material: 316L
Accuracy Grade: ±0.5%F.S.
Pressure Range: -100kpa...0~35kpa...100MPa

Product Description

Piezoresistive pressure chip employed
High sensitivity
MEMS technology
CE certificate
Cost effective
Fast delivery

Pressure Range

Nominal Range-100kPa, 35kPa, 70kPa, 100kPa, 160kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa
Pressure ReferenceGauge pressure | Absolute pressure | Sealed gauge pressure
Overpressure300%F.S.(70kPa) | 200%F.S.(<25MPa) | 150%F.S(25MPa)
Output Signal

Output4 to 20mA + Hart protocol | 4 to 20mA + RS485-MODBUS
Specification

Accuracy (linearity, hysteresis and repeatability)±0.5%F.S.(typical)
Supply24VDC(typical)
Compensated Temp.-10ºC - 70ºC(typical)
Medium Temp.-30ºC - 100ºC
Ambient Temp.-40ºC - 85ºC
Storage Temp.-40ºC - 125ºC
Zero Temp. Coefficient ±1.5%F.S.max.(@-20ºC - 85ºC)
Sensitivity Temp. Coefficient±1.5%F.S.max.(@-20ºC - 85ºC)
Housing materialCopper aluminum alloy
Sensor materialStainless steel 316L
ProtectionIP65
WeightApprox.(1500g)

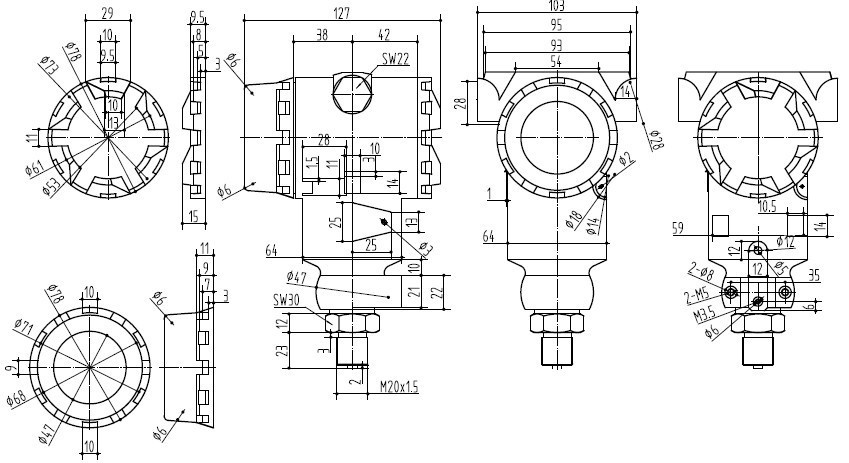

Drawing (in mm)

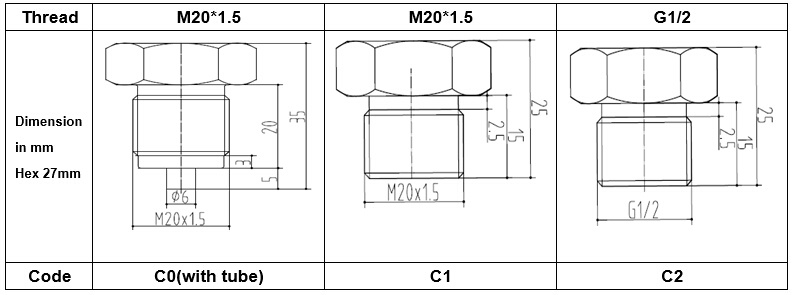

Pressure port

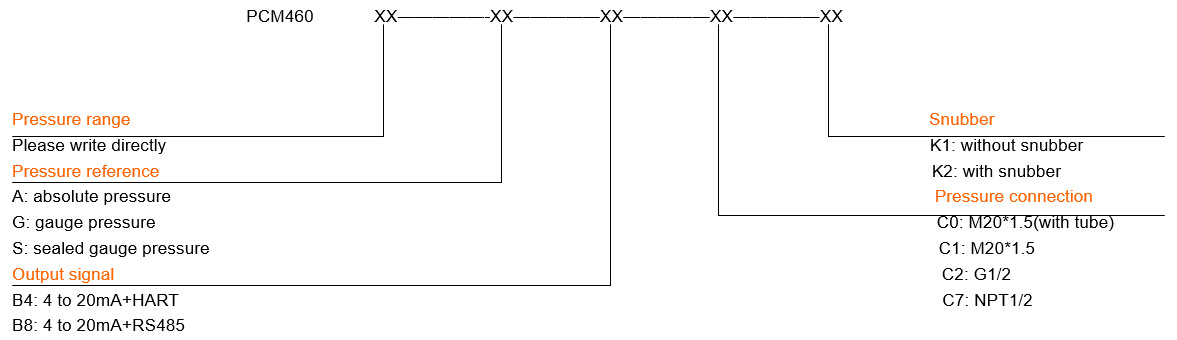

How to order
