Intelligent Temperature Controllers Hb701 Series 72x72x64mm

Name: Intelligent Temperature Controllers Hb701 Series 72x72x64mm
Brand: all-electronics-online.com
SKU: 694750405
Availability: InStock
Rating: 5 (86 reviews)

Price:	US $ 10.75-24.83/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HB701
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hole Size:	68*68mm
Application:	Plastic Extruding, Reflow Oven, T Controller
Input Signal:	K. E. J, PT100, Cu50.
Mounting:	Panel Type
Power Supply:	AC100-240V
Demension Size:	72X72X64mm
Control Mode:	2-Position Relay Control or Pid Relay/SSR Control
Alarm Mode:	1 Alarm or 2 Alarms
Control Type:	Digital
Type:	Temperature Controller
Usage:	Control Temperature
Material:	Plactis Housing

Product Description

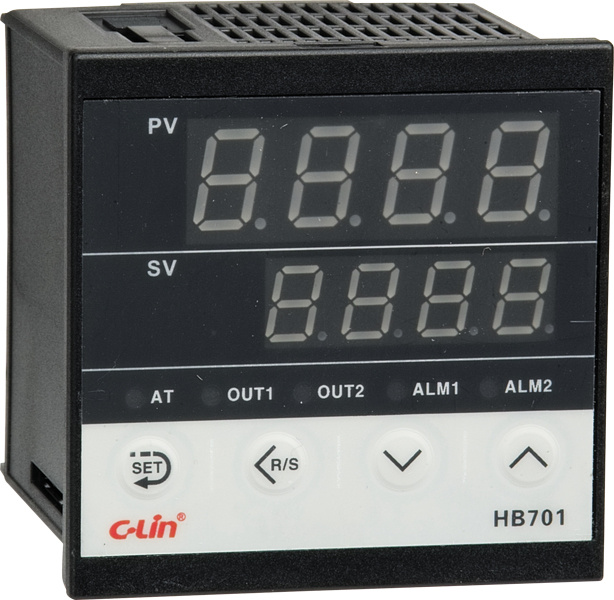

Intelligent Temperature Controller

HB series intelligent digital temperature controller is developed according to International DIN standard whose core is a new micro- processor. The advanced technology of the surface mounting and superb production processing makes the controller reliable performance and excellent control accuracy. The controller has a strong capability of anti-jamming and quick disturbance response. All the above functions can reach all kinds of temperature -control requirements for our users. It can be widely used in the automatic control systems for the temperature, flow, pressure and liquid level of many industries such as mechanical, chemical, ceramics, light industry, metallurgy petrochemical, heat treatment, etc.

Main Features

(1)full-scale software zero adjustment, automatic cold junction compensation.
(2)adopting industry and experts self-tuning PID, self-adaptive technology.
(3)four-digit two colors LED digital window displays measured value and setting
value respectively.

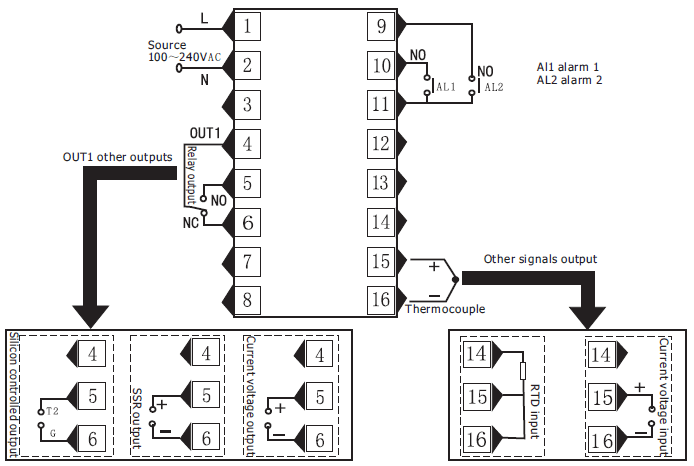

Connections

Specification

Model	HB701
Input Signal	thermocouple:K,E,J
Input Signal	RTD:Pt100, Cu50
Control Mode	2-digit relay on-off control
	PID adjust relay on-off control
	PID adjust drive SSR voltage control
Alarm Mode	1 alarm relay contact output
Alarm Mode	2 alarm relay contact output
Working Power	AC100-240V
Outline Dimension	727264mm
Hole Size	68*68mm
Installation Mode	Panel Mounting
Application	places such as plastic extruding machine;reflow soldering;shoes machine, etc.
