| Prod Model: |
Tower Star Series RT 1K-10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
12 Months |
| Display: |
LED/LCD Indicators |
| Frequency: |
50Hz/60Hz |
| UPS Type: |
Rack Mount Type |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

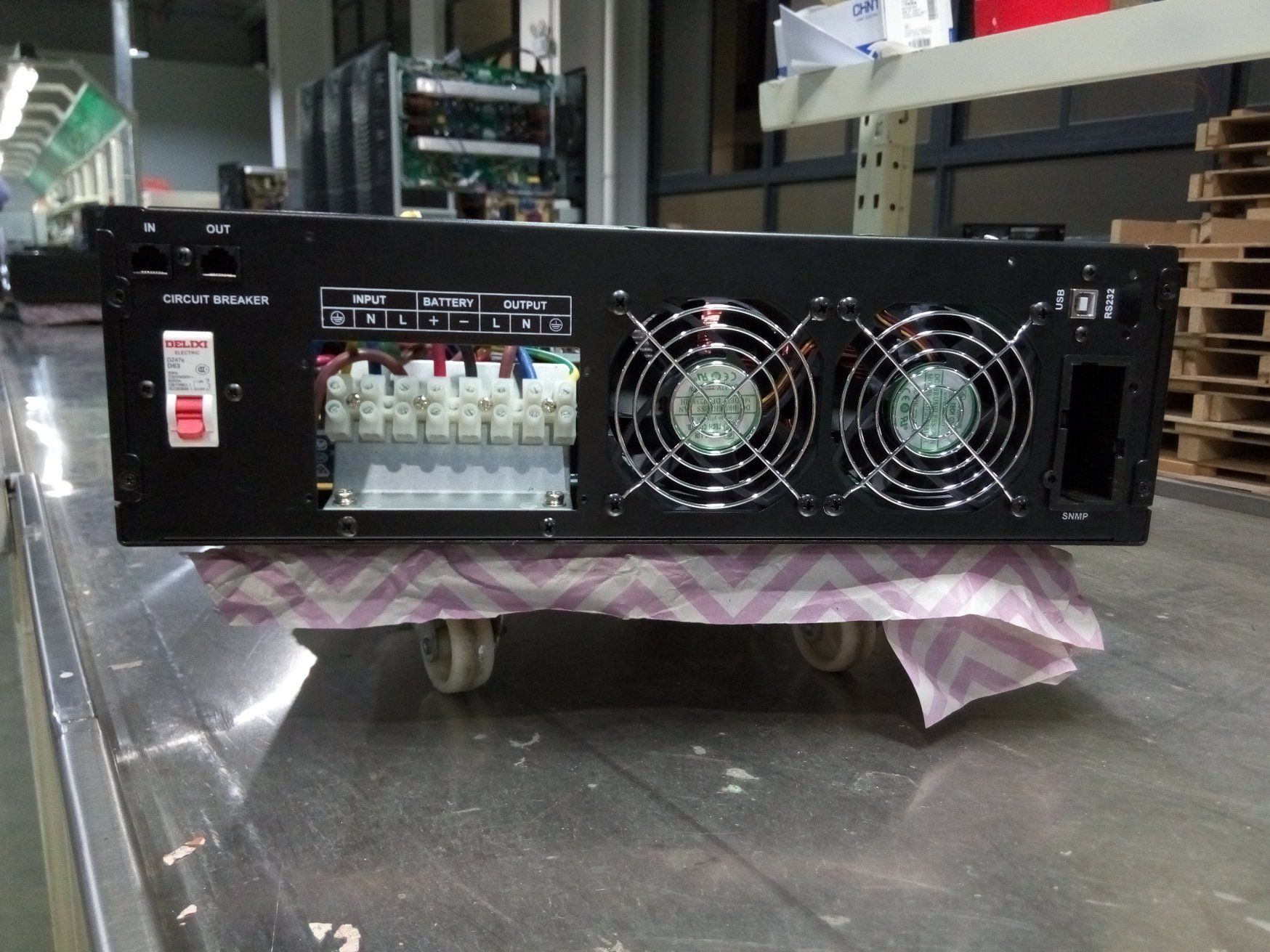

Intelligent UPS Rack Mounted 2u 3u high frequency online UPS
High Frequency Online UPS Rack Tower Star Series RT 1K-10KVA(1Ph in/1Ph out)
Key Features:
1:Full digital control (DSP)
2:Rack Mount - Tower Convertible
3:Automatic battery charging in UPS off mode
4:Input neutral and live wires reverse detection
5:Protection against all types of power problems
6:Adjustable charging current via LCD or software
7:Diverse options of accessories, intelligent management
8:High frequency and double conversion online technology
9:Automatic startup function, Long-term type power design
10:Allowable start UPS by cold start or direct current start
11:With ECO (economic operation mode) can be highly efficient energy-saving, reduce user costs
12:Active Input Power Factor Correction (PFC), UPS can correct the input power factor. Under full load, the input power factor can reach over 0.95 so that the electric environment of the users will not be polluted.
Applications
Servers, Military,Medical Systems,Network sensitive electronic equipment,Electronic,Telecom
,communication,water pump,microwave oven,squeezer,air-condition,fridge,Wind Power System etc.
Technical Specification
MODEL(RT Series) | RT1K | RT1KL | RT2K | RT2KL | RT3K | RT3KL | RT6KL | RT10KL |
| Input | Rated Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8000W |
| Voltage | 90 ± 5 ~290 ± 5Vac | 176 ~ 276Vac |
| Current | 6A(max) | 12A(max) | 16A(max) | 31A(max) | 60A(max) |
| Frequency | 40 ~ 60 Hz |
| Power factor | Conformity EN60555-2(≥0.95) | ≥0.95(MAX) |
| Output | Voltage | 220Vac ( 1 ± 2%) | 220Vac ( 1 ± 1%) |
| Current | 4.55A | 9.1A | 13.6A | 27.3A | 54A |
| Frequency | (50 ± 2)Hz | (50 ± 1)Hz |
| Power Factor | 0.8 lag |
| Waveform | Sine Wave |
| Waveform | Linear ≤ 7% when RCD 100% loading (Non-line) |
| Distortion | Linear ≤ 3% when RCD 100% loading (line) |
| Overload protection | 105%< <125% → 50s | 100%-125%, 1 minutes to |
| 125%< <150% → 25s | transfer to bypass; >150%, |
| >150% → 300s | 100ms to transfer to bypass |
| Transfer Time | Oms |
| Type of Battery | Sealed lead acid maintenance-free |
| External Battery Voltage | 3x7 Ah | 36Vdc | 6x7 Ah | 72Vdc | 8x7 Ah | 96Vdc | 192Vdc/240Vdc |
| Working | Operating | 0-40ºC |
| Environment | Temperatures(ºC) |
| | Relative | 0-90(%) |
| | Temperature(ºC) |
| | Altitude | <1500m |
| Communication | 9pin D trpe comector (RS232) |
| Size (WXDXH) mm | 482x450x88 | Standard Type (3U): 482x680x132.5 | 482x680x132.5 |
| Long Backup Type (2U): 482x450x88 |
| Weight (kg) | 14.5 | 8 | 22 | 9.8 | 26 | 9.8 | 20 | 25 |
