| Prod Model: |
ZC-521GWT |
| Color: |
White |
| Interface: |
4ge+2pots+WiFi+CATV |
| Voice Feature: |
SIP and H.248 Protocols |
| Application: |
FTTH/FTTB/FTTX Network |
| Model Name: |
Zc*521gwt |
| Type: |
Wireless |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
| Support Network: |
WiFi |
| Usage: |
Fiber Optic |
Product Description
Original New ZC-521GWT GPON ONU 4GE+2POTS+CATV+WIFI
Same as ZTE F668
ZC-521GWT is a GPON Home Gateway Unit with brand new appearance, it's a fast, convenient, flexible, secure and highly integrated broadband connection device. ZC-521GWT support routing and bridging function, it's very suitable for home and small business users.
ZC-521GWT support optical fiber access with 2.5Gb/s downstream and 1.25Gb/s upstream two-way data transmission, conform with point-to-multipoint data service of ITU-T G.984.2 and ITU-T G.984.5, client support IEEE802.11b/g/n 300Mbps wireless connection, 2CH VOIP voice, 1 HOST USB2.0 interface, 1 CATV and 4 self-adaptive 10/100 Base-T LAN interface which conform with IEEE802.3 and 802.3u.
Special Features
Upstream Interface1 PON Interface
n 1 optical fiber access port
n Conform with ITU-T G.984.2, ITU-T G.984.4 and ITU-T G.988
n Downstream: 2.5Gbps(wavelength: 1490nm)
Upstream: 1.25Gbps(wavelength: 1310nm)
n Average luminescence power: 0.5-5dBm(zero luminescence power:-45dBm)
Receiving Sensitivity: up to -28dBmDownstream Interfacel LAN Interface
n 4 10/100/1000Base-T RJ-45 Ethernet interface
n Support straight crossed cable, support auto-negotiation
l Wireless
n IEEE 802.11n,IEEE 802.11g,IEEE 802.11b
n Two built-in antenna
n The highest connecting rate: 300Mbps
n Coverage: indoor 100m max, outdoor 300m max.
n Transmitting Power
11B _POWER = 15.5dBm
11G_POWER = 15.5dBm
11N_HT20_POWER= 15.5dBm
11N_HT40_POWER = 14.5dBm
n EVM
11B_ EVM =-10dB
11G_ EVM =-30 dB
11N_HT20_EVM =-29 dB
11N_HT40_EVM =-29 dBCATV
BIDI (fiber wavelength 1550nm/1310nm)
RF frequency range:47MHz - 1000MHz
RF output impedance :75ΩUSB Interface
l 1 USB 2.0 HOST interface which can provide 5V voltage with max current 1A
l Support external storage deviceVoice Interface
l Support SIP protocol/H.248 protocol
l Support multi voice encoding format: PCMU, PCMA, G.722, G.723, G.726-32, G.729
l Support voice value-added services: call forwarding, call waiting, call identification, abbreviated dialing, hot line service, do not disturb service, alarm clock, call barring, three-way callingPower Supply
l Power Consumption: 8.5W
l External Power Adapter
n Input: 100-240V~50/60Hz 0.6A
n Output: DC12V/1.5A

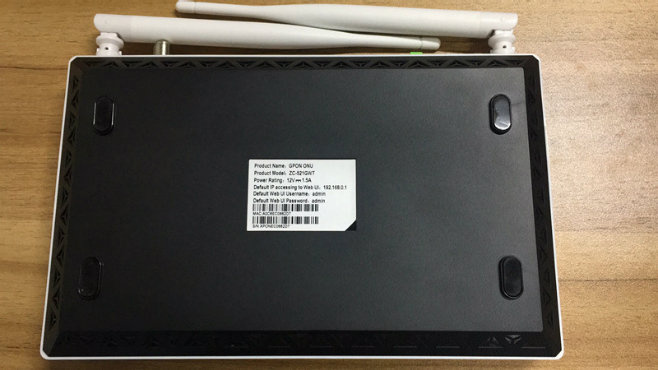

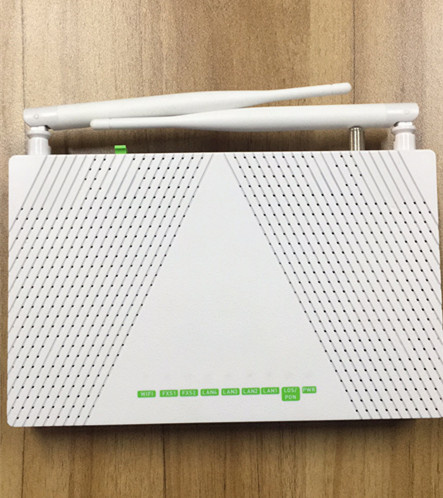

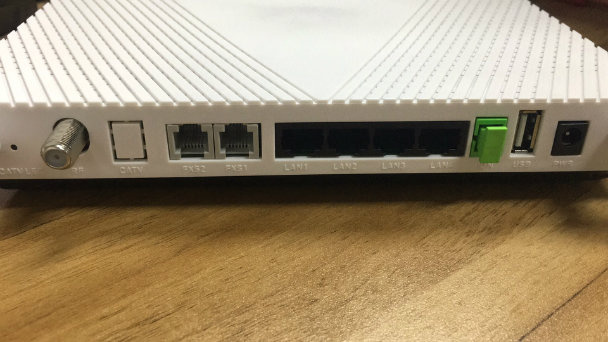

n Lightning protection grade: 4KVDetailed Images

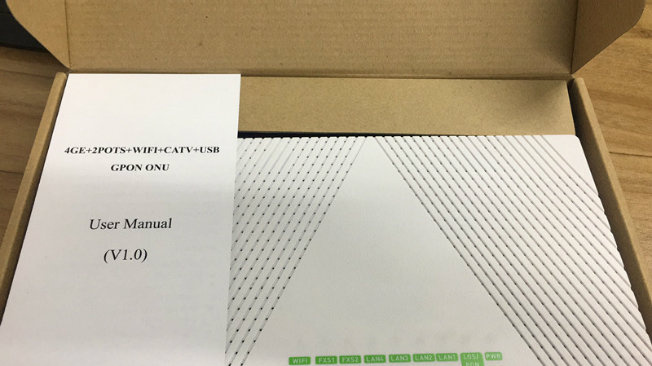

Packing & DeliveryPackaging:
