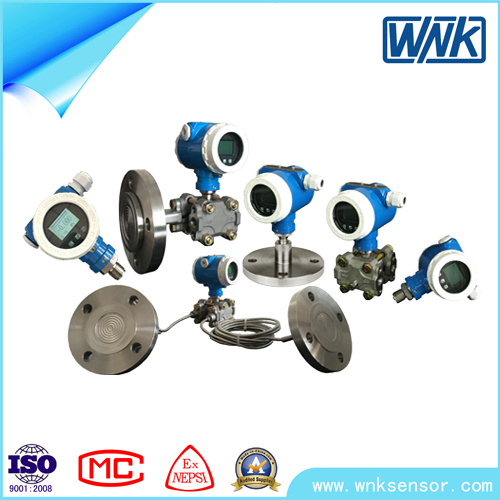

Intrinsic Safe Smart High Accuracy Pressure Transmitter with Local Display
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
WNK51 |
| Range Down: |
100:1 |
| Output Signal: |
4~20m, 4~20mA/Hart, Profibus-PA |
| Housing Material: |
Aluminum Alloy |
| Stability: |
±0.15% of Url for 5 Years |
| Temperature Drift: |
±0.03% of Url/10oc |
| Protection Class: |
IP66/67 |
| Type: |
Gauge Pressure Transmitter |
| Measuring Medium: |
Gas, Steam, Liquid |
| Accuracy Grade: |
0.075% |
| Pressure Range: |
0.1bar~700bar |
Product Description
WNK59 Smart Gauge/Absolute Pressure Transmitter With Flush Diaphragm| Features | Applications: |
| 1. High reference accuracy up to 0.075%, higher on request. | 1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement. |
| 2. Long-term drift ≤±0.25%URL for 5 years. |
| 3. Range down ratio 100:1; higher on request. | 2. Level,volume or mass measurement in liquids. |
| 4. Replaceable display unit & electronic module. |
| 5. Universal electronics. | 3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow) |
| 6. Menu-guided operation. |
| 7. Factory default data recovery is supportive |
| 8. Hart, PROFIBUS-PA or FF protocol for option. | 4. High pressure up to 700bar. |
WNK59 Smart Gauge/Absolute Pressure Transmitter
Technical Data |
| Applicable media | liquid, gas and steam |
| Pressure range | -100KPa~70MPa |
| Accuracy | 0.075%, higher on request |
| Stability | ±0.25% of URL for 5 years |
| Temperature drift | ±0.045% of URL/10ºC |
| Output signals | 4~20mA, Hart, PROFIBUS-PA for option |
| Housing material | Aluminum14 |
| Mechanical connection | M20×1.5;G1/2;1/2NPT |
| Protection class | IP66/67 |
| Ex-proof | Exia II CT4, other option per request |
| Power Supply | 10.5-55V DC 10.5-30V DC |
| Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header |
| Storage temperature | -45 to 85ºC,-40 to 80ºC for LCD header ; |
| Measurement | with display: 95*126*52 (mm) |
| without display: 95*115*52 (mm) |
| Net Weight | 1.7kg (without bracket or process connection) |
Booking information| Model | Product details |
| WNK59 | Smart pressure transmitter |
| Code | Approval |
| A | For non explosion-proof areas |
| 1 | ExiaIICT6 |
| 2 | ExiaIICT4 |
| 3 | ExdIIBT6 |
| For other approvals or more information, please contact with us |
| Code | Output code |
| A | 4…20mA |
| H | 4…20mA,HART |
| P | PROFIBUS-PA |
| F | FF |
| Code | Display |
| A | No display |
| L | LCD |
| Code | Housing; Cable entry; Protection |
| A | Aluminum14,M20×1.5,IP66/67 |
| B | Aluminum14,G1/2,IP66/67 |
| C | Aluminum14,1/2NPT,IP66/67 |
| Code | Sensor range, for gauge pressure | Code | Sensor range, for absolute pressure |
| 1C | 100mbar (10kPa/1mH2O) | 2C | 100mbar (10kPa/1mH2O) |
| 1E | 250mbar (25kPa/2.5mH2O) | 2E | 250mbar (25kPa/2.5mH2O) |
| 1F | 400mbar (40kPa/4mH2O) | 2F | 400mbar (40kPa/4mH2O) |
| 1H | 1bar (100kPa/10mH2O) | 2H | 1bar (100kPa/10mH2O) |
| 1K | 2bar (200kPa/20mH2O) | 2K | 2bar (200kPa/20mH2O) |
| 1M | 4bar (400kPa/40mH2O) | 2M | 4bar (400kPa/40mH2O) |
| 1P | 10bar (1MPa/100mH2O) | 2P | 10bar (1MPa/100mH2O) |
| 1S | 40bar (4MPa/400mH2O) | 2S | 40bar (4MPa/400mH2O) |
| 1U | 100bar (10MPa/1000mH2O) | 2U | 100bar (10MPa/1000mH2O) |
| 1W | 400bar (40MPa/4000mH2O) | 2W | 400bar (40MPa/4000mH2O) |
| 1X | 700bar (70MPa/7000mH2O) | 2X | 700bar (70MPa/7000mH2O) |
| Code | Calibration,Unit |
| 1 | Sensor range,mbar/bar |
| 2 | Sensor range,kPa/MPa |
| 3 | Sensor range,mmH2O/mH2O |
| 4 | Sensor range,psi |
| Code | Diaphragm material |
| 1 | 316L |
| 2 | Alloy C-276 |
| X | Other special requirement |
| Code | Process connection, screw thread |
| GA | Male thread G1/2, inner hole 3mm,316 |
| GB | Male thread G1/2, inner hole 11.4mm,316 |
| GC | Female thread G1/2, inner hole 3mm,316 |
| GD | Female thread G1/2, inner hole 11.4mm,316 |
| NA | Male thread 1/2NPT, inner hole 3mm,316 |
| NB | Male thread 1/2NPT, inner hole 11.4mm,316 |
| NC | Female thread 1/2NPT, inner hole 3mm,316 |
| ND | Female thread 1/2NPT, inner hole 11.4mm,316 |
| MA | Male thread M20×1.5, inner hole 3mm,316 |
| MB | Male thread M20×1.5, inner hole 11.4mm ,316 |
| JX | Other special requirement |
| For other special connection screw thread, please contact with us. |
| Code | Process connection material |
| 3 | 316 |
| H | Alloy C |
| Code | Overvoltage protection |
| A | No |
| M | Overvoltage protection |
| Code | Mounting bracket |
| A | No |
| U | Mounting bracket for pipe |
| Typical model#:WNK59AHL A1P21 MA3 AU |
For more information, please contact us for product manual.WNK59 smart pressure transmitter installation diagram (unit : mm)
