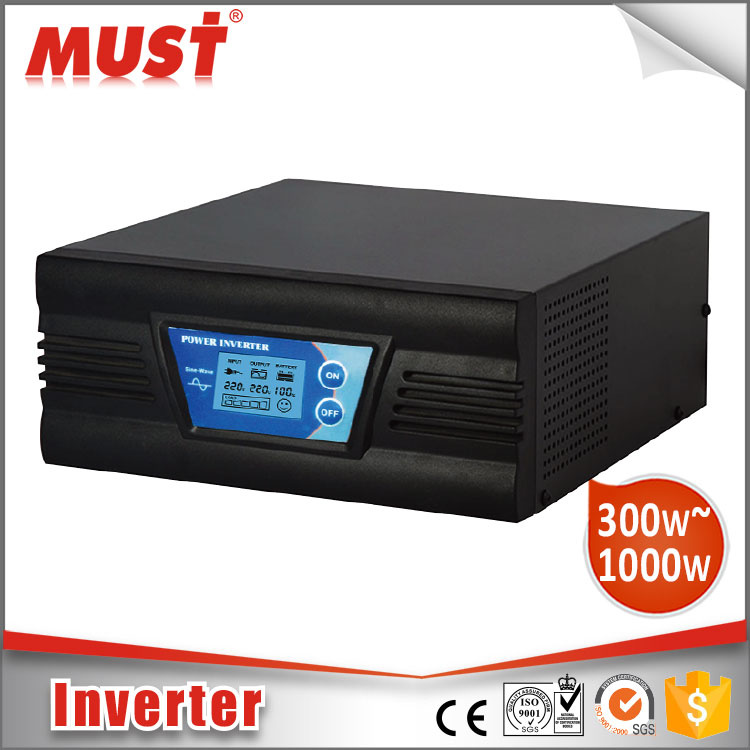

Inverter 1000W 24VDC 12VDC Pure Sine Wave

Name: Inverter 1000W 24VDC 12VDC Pure Sine Wave
Brand: all-electronics-online.com
SKU: 746876475
Availability: InStock
Rating: 5 (113 reviews)

Price:	US $ 45/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EP20-1KW
Markets:	Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wave:	Pure Sine Wave
Input Voltage:	145-275VAC
Output Voltage:	230VAC/50Hz
Low Frequency Inverter:	Yes
Inside Bigger Transformer:	Yes
With AVR Function:	Yes
Charge Current:	20A Max
Carton Size:	380340200
G.W:	13 Kg
Display:	LCD

Product Description

Sine wave power inverter
12VDC/24VDC
Pure sine wave.
Low frequency, inbuilt transformer.
AVR function
Charge current Max. 20A.
Support inductive load, motor, generator.
Input range: 145-275vac
Output: 230vac+/-10%
LED panel
Transfor time: 5ms
Protection: Automatic self-test, discharge protection, over charging protection, short-circuit protection. Low voltage, over voltage, over load, over heating protection etc.

MODEL		EP20-300W	EP20-600W	EP20-800W	EP20-1KW
Default Battery System Voltage		12VDC	12VDC/24VDC	12VDC/24VDC	12VDC/24VDC
INVERTER OUTPUT	Reted Power	300W	600W	800W	1000W
	Waveform	Pure sine wave
	Nominal Output Voltage RMS	100V/110V/120VAC 220V/230V/240VAC(±10% RMS)
	Output Frequency	5OHz/60Hz±0.3 Hz
	Inverter Efficiency(Peak)	>80%
	Line Mode Efficiency	>95%
	Power Factor	1.0
	Typical Transfer Time	Typical 2~6ms ,10ms max
AC INPUT	Voltage	220VAC
	Selectable Voltage Range	96~132VAC 145~275VAC(For Personal Computers)
	Frequency Range	50Hz/60Hz (Auto sensing 44~68Hz)
BATTERY	Nominal Input Voltage	12VDC	12VDC/24VDC	12VDC/24VDC	12VDC/24VDC
	Minimum Start Voltage	10.5VDC /21.0VDC
	Low Battery Alarm	10.5±0.3V /21.0VDC±0.6V
	Low Battery Cutoff	10.0VDC±0.3V /20.0VDC±0.6V
	High Voltage Alarm	15.5VDC±0.3V /31.0VDC±0.6V
	High Battery Voltage Recover	15.0VDC±0.3V /30.0VDC±0.6V
CHARGER	Charger Voltage	14.0V±0.2/28.0V±0.4
	Overcharge Protection S.D.	15.5VDC/31.0VDC
	Maximum Charge Current	15A~25A
BYPASS & PROTECTION	Nominal Input Frequency	50Hz or 60Hz
	Overload Protection (SMPS Load)	IPS automatically shutdown if overload exceeds 120% ofnormal value for 30 seconds IPS automatically resume work if overload comes back to rated load
	Output Short Circuit Protection	FUSE
	Bypass Breaker Rating	10A
	Max Bypass Current	10Amp
MECHANICAL SPECIFICATIONS	Dimensions (WHD)	265120295mm
	Net Weight (kg)	7.0kg	10.5kg	12kg	12.5kg
	Shipping Dimensions(WHD)	316185377mm
	Shipping Weight (kg)	7.5kg	11kg	12.5kg	13kg
OTHER	Operation Temperature Range	0°C to 40°C
	Audible Noise	60dB MAX
	Display	LED or LCD Optional
	Standard Warranty	1 year

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
