| Prod Model: |
ZBTG-3.7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Request: |
Custom-Made |
| Power: |
3.7/5.5kw |
| Voltage: |
380V/440V |
| Input Frequency: |
50/60Hz |
| Output Frequency: |
0.00-600.00Hz |
| Control Mode: |
SVC,V/F Control,Torque Control |
| Protection Class: |
IP30 |
| Type: |
Distribution Metering Box |
| Structure: |
Fixed Board |
| Certification: |
Ce |
| Shell Material: |
Ggd |
| Brand: |
Chziri |
Product Description

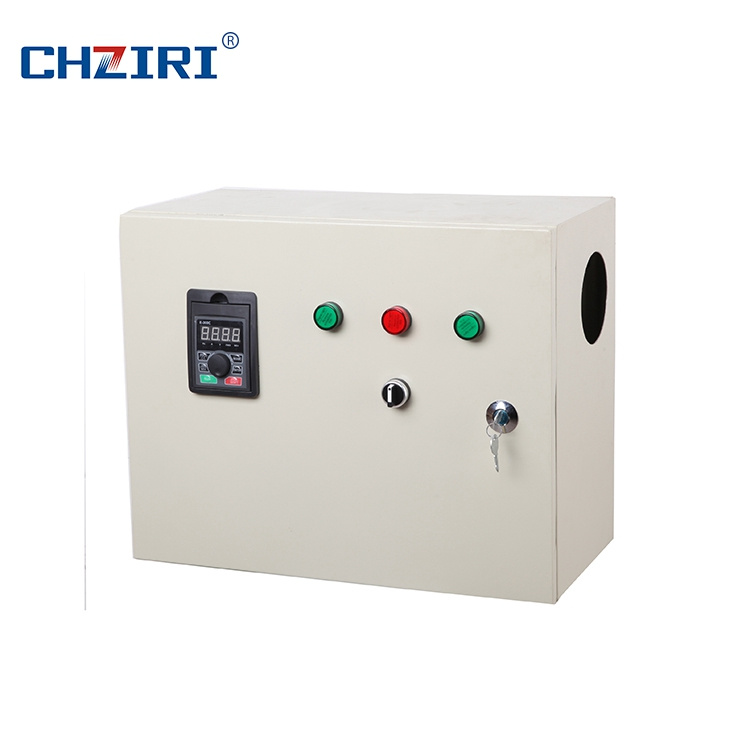

Inverter control cabinet
ZIRI Electrical can produce inverter cabinet and soft starter cabinet . We can also provide clients with customized control panel .Welcome to send inquiry to us !
Using condition
Power Supply: Electric supply r, self-connected power network, diesel generator set, 3phase AC 380V , (-10%,+15%),50HZApplicable motor: three-phase asynchronous motor, variable frequency motorStart frequency: can start frequentlyProtection class: IP41 or IP20
Environment condition
Altitude ≤ 2km (used and downgraded if altitude beyond of 2km), Environment temperature : -25ºC~ +40ºCRelative humidity: ≤90%, no condensationVibration: ≤0.5G
Applicable Industry The frequency converter control panel (VFD electric control panel / electrical control panel) can widely use in metallurgy, chemical industry, petroleum, water supply, mine, building material, electrical motor industry, such as pumps, fans, air compressor, rolling mill, injection molding machine, conveyer belt and other machinery and equipments.
Characteristics Analysis1, save energy
Inverter control motor compared with the traditional control of the motor, energy conservation is the most practical significance, you can achieve energy-saving effect.
2,Lower operating cost.
The traditional motor are consists of three parts: initial purchase cost, maintenance cost, and energy cost. The Energy costs account for about 77% of the motor's operating costs. After install the frequency and soft starter start to reduce the impact of the device. The energy costs can be reduced by 44.3%.The maintenance and repair volume also reduced . So the operating costs will be greatly reduced.
3,Extend motor's life
In addition, the frequency conversion control can reduce the unit start when the current fluctuation, this fluctuation current will affect the power grid and other equipment, the inverter can effectively reduce the peak starting current to a minimum. Starting from 0HZ, the start-up time can be adjusted to reduce the impact on the electrical components and mechanical parts of the motor at start-up, thus enhancing the reliability of the system and prolonging the service life of the motor. In addition, the frequency conversion control can reduce the unit start when the current fluctuation, this fluctuation current will affect the power grid and other equipment, the inverter can effectively reduce the peak starting current to a minimum.
4,Reduce motor's noise
According to the requirements of the motor operating conditions, the installation of frequency inverter, the motor speed significantly slowed down, so effectively reduce the noise of the motor running.
Why you choose the products from CHZIRI Electrical ?
low voltage frequency inverter and soft starter manufacturer and exporter .
More than 10 years experience and professional devoting the automation control system . we want to be the best to serve our clients.
CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
Key parts inside the CHZIRI Frequency Inverter are imported .We use Infenion IGBT ,Fans are from Germany company ,Capacitors are imported from Japan .
CHZIRI frequency inverters and soft starters are easy and convenient to operate .
CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
CHZIRI Frequency Inverters and Soft starters are selling to all over the world . CHZIRI Products earn good reputation and sell well in the market .
CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .Choke and remote control cables.
CHZIRI Electrical can also provide clients with customized control panel .Such as frequency inverter switchgear and soft starters cabinets.
CHZIRI Electrical located in Liushi,Wenzhou -Capital city of low voltage electrical appliances in China . you can buy different kind of electrical products from our city . Such as breakers ,contactors .relays .fuses . indicators. Pushbutton and so on .
CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper .
OEM service can be offered .
Prompt delivery :5-12 days after receipt your money.
Warranty time :12 ~16 months .
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
