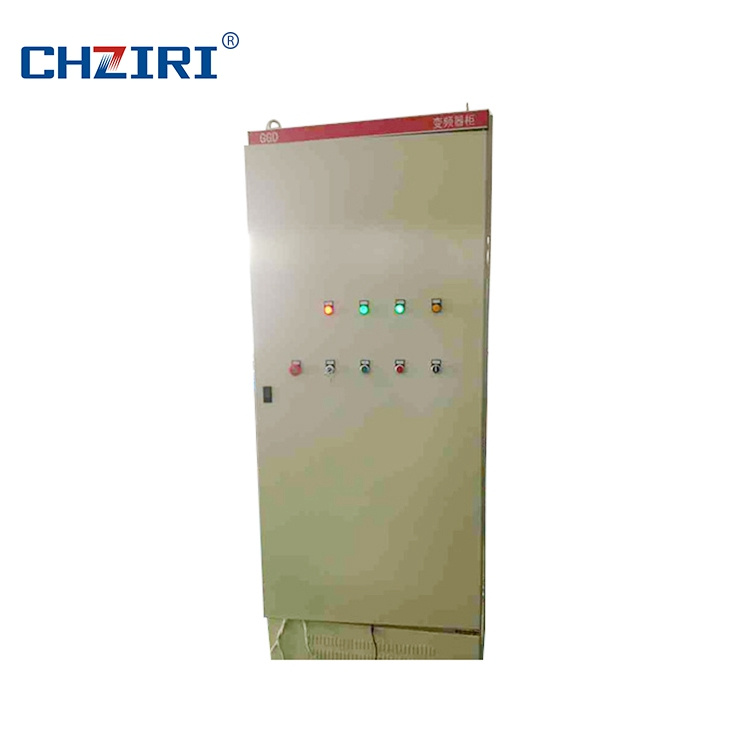

Inverter Panel 55kw for Pump System
| Price: |
US $ 2250/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
ZBTG-55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Ggd Cabinet |
| Request: |
Custom-Made |
| Power: |
55kw |
| Voltage: |
380V/440V |
| Input Frequency: |
50/60Hz |
| Output Frequency: |
0.00-600.00Hz |
| Control Mode: |
SVC,V/F Control,Torque Control |
| Protection Class: |
IP20 |
| Output Type: |
Triple |
| Main Circuit Type: |
Voltage |
| Application: |
VFD Control Panel |
| Principle Of Work: |
Control Panel |
| Switch Mode: |
Frequency Inverter Cabinet |
| Function: |
Energy Saving |
| Brand: |
Chziri |
Product Description

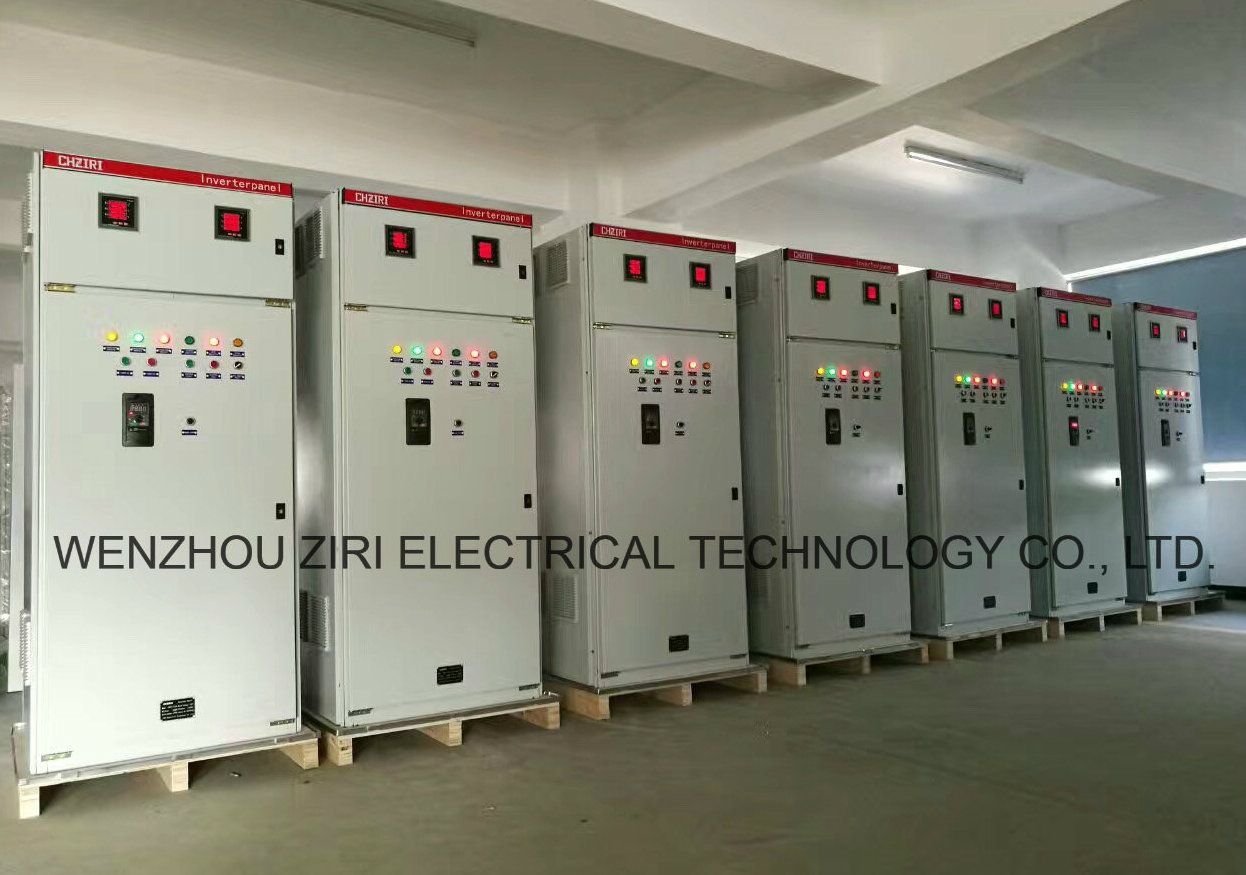

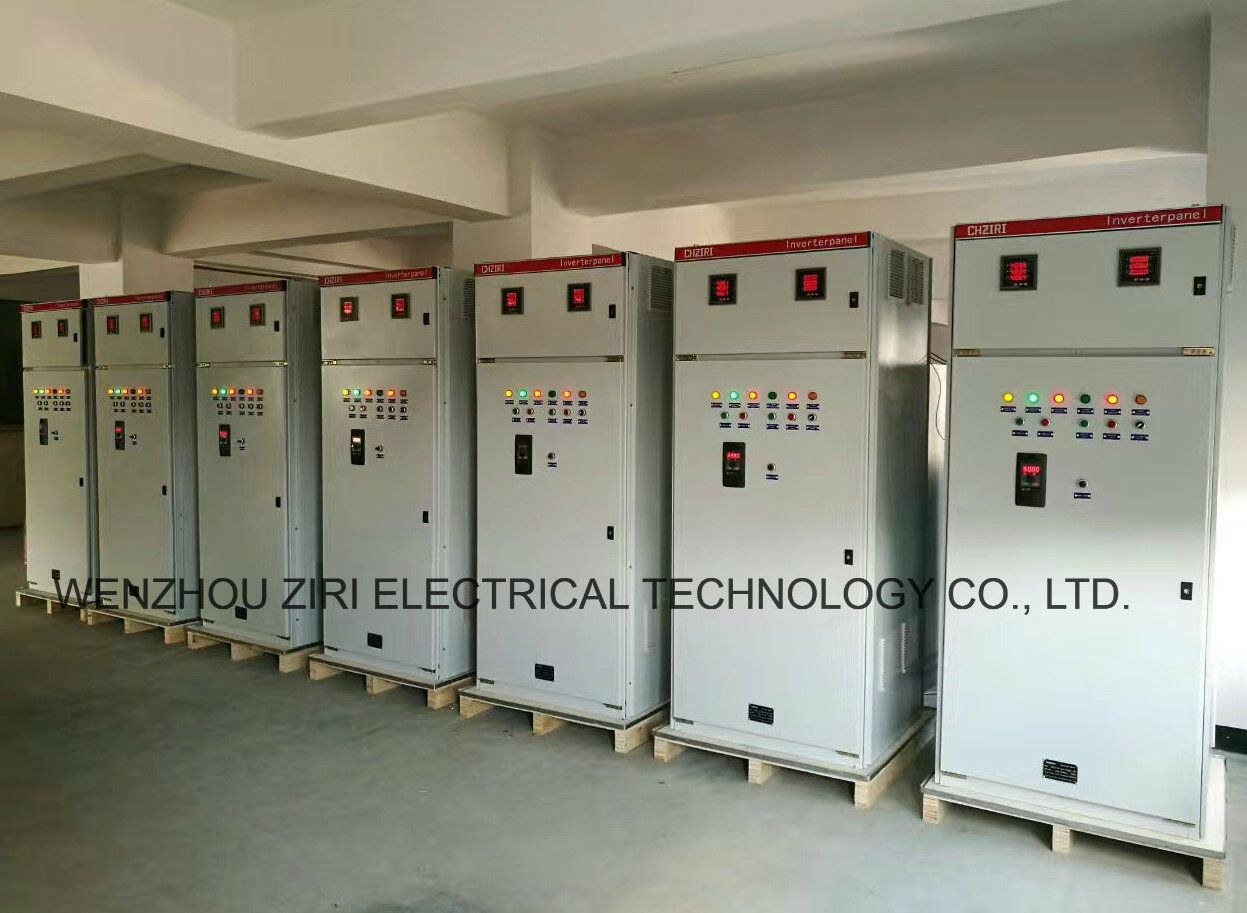

Inverter control cabinet The frequency inverter control panel adopts the enclosed cabinet structure, adopts the frame skeleton, the surface coating spray, and easy to install the cabinet, the upper end can configure the bus bar . the keypad of frequency inverter leads to the front foot of cabinet and can operate directly, it can set local and remote control or PC/PLC communication control .the inverter control cabinet can display different kinds of function .
Frequency inverter is a dedicated accessory of inverter cabinet ,the variable frequency control the speed and the main technical parameters depends on the specification of built-in inverter and external configuration. Inverter cabinet have big difference according to the use of different application and different functions

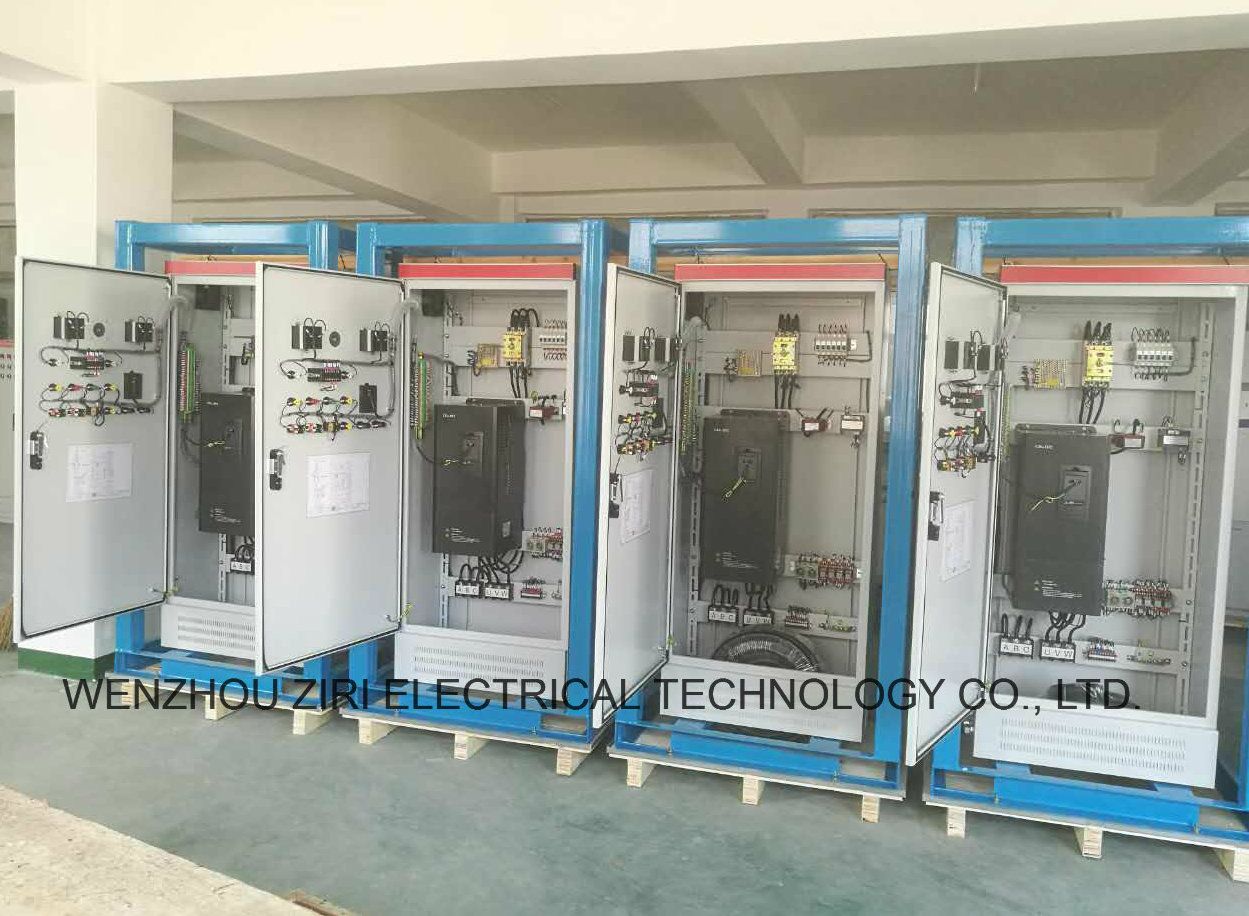

According to the needs of the operating conditions, we can install AC input reactor, output reactor, DC reactor, EMI filter, braking unit, breaking resistor, contactor, intermediate relay, thermal relay, PLC, GOT , Electricity meter , cooling fan and ect inside the control cabinet .

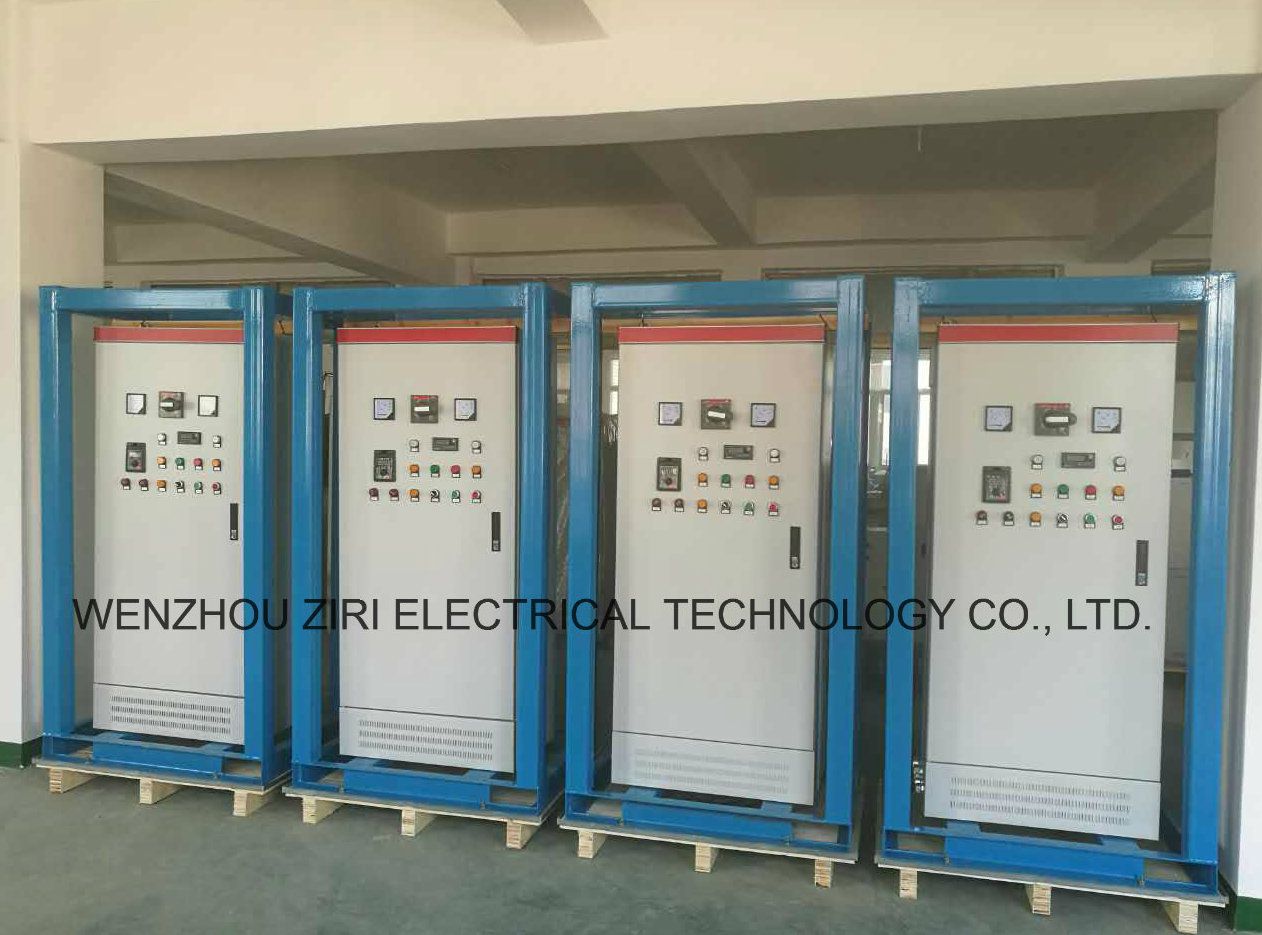

According to the system working conditions, we can set a variety of control button and indicators. Such as forward, reverse, motor speed boost, motor speed deceleration, jog forward, jog reverse, manual / automatic, emergency stop, frequency conversion, power frequency, PLC control, touch screen and so on in the front door of the panels .
Using condition
Power Supply: Electric supply r, self-connected power network, diesel generator set, 3phase AC 380V , (-10%,+15%),50HZ
Applicable motor: three-phase asynchronous motor, variable frequency motor
Start frequency: can start frequently
Protection class: IP41 or IP20
Environment condition
Altitude ≤ 2km (used and downgraded if altitude beyond of 2km),
Environment temperature : -25ºC~ +40ºC
Relative humidity: ≤90%, no condensation
Vibration: ≤0.5G
Applicable Industry
The frequency converter control panel (VFD electric control panel / electrical control panel) can widely use in metallurgy, chemical industry, petroleum, water supply, mine, building material, electrical motor industry, such as pumps, fans, air compressor, rolling mill, injection molding machine, conveyer belt and other machinery and equipments.
CHZIRI Clients
Why you choose the products from CHZIRI Electrical ?- low voltage frequency inverter and soft starter manufacturer and exporter .
- More than 10 years experience and professional devoting the automation control system . we want to be the best to serve our clients.
- CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
- Key parts inside the CHZIRI Frequency Inverter are imported .We use Infenion IGBT ,Fans are from Germany company ,Capacitors are imported from Japan .
- CHZIRI frequency inverters and soft starters are easy and convenient to operate .
- CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
- CHZIRI Frequency Inverters and Soft starters are selling to all over the world . CHZIRI Products earn good reputation and sell well in the market .
- CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .Choke and remote control cables.
- CHZIRI Electrical can also provide clients with customized control panel .Such as frequency inverter switchgear and soft starters cabinets.
- CHZIRI Electrical located in Liushi,Wenzhou -Capital city of low voltage electrical appliances in China . you can buy different kind of electrical products from our city . Such as breakers ,contactors .relays .fuses . indicators. Pushbutton and so on .
- CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper .
- OEM service can be offered .
- Prompt delivery :5-12 days after receipt your money.
- Warranty time :12 ~16 months .
ZIRI Electrical can produce inverter cabinet and soft starter cabinet . We can also provide clients with customized the control panel .Welcome to send inquiry to us !
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
