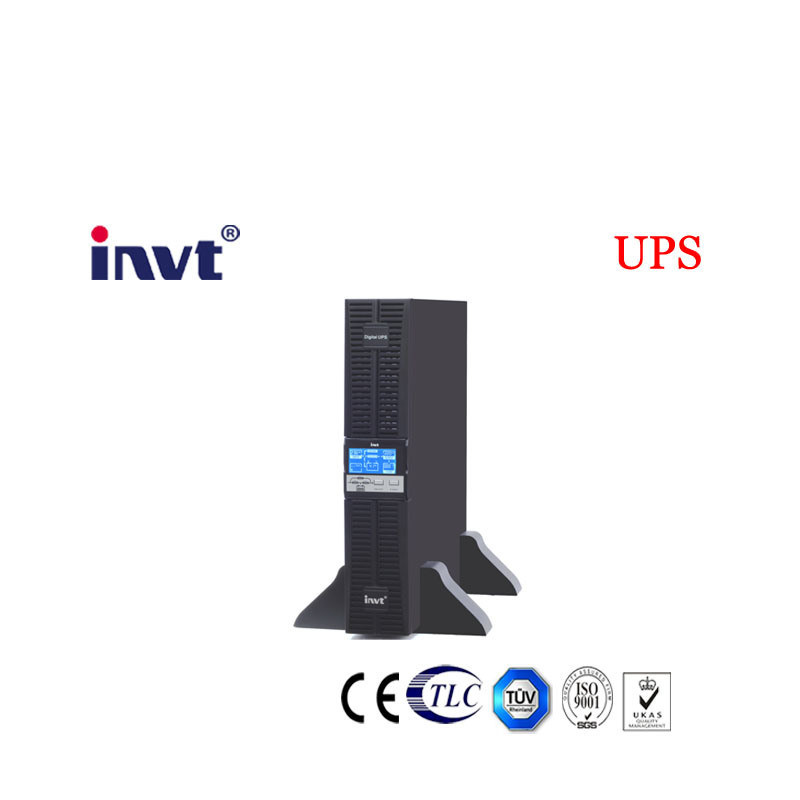

Invt Hr 1-10kVA 0.9pf Rak Mount UPS

Name: Invt Hr 1-10kVA 0.9pf Rak Mount UPS
Brand: all-electronics-online.com
SKU: 675022741
Availability: InStock
Rating: 4.6 (81 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HR11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power Factor:	>0.8
Output Voltage:	220V or 110V
Input Power Factor:	>0.99
Operating Humidity:	20-90 Non-Condensing
Crest Factor:	3
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Classification:	Small
Brand:	Invt

Product Description

Invt Hr 1-10kVA 0.9pf Rak Mount UPS

HR series online rack mounted UPS 1-6kVA characteristics
1.19 inch rack mounted design.
2. Online double conversion technology.
3. IGBT PFC technology.
4. Wide input range.
5. Zero transfer time.
6. Compete protection function.
7. Advanced battery management.
8. Cold start.
9. Compete protection function.
10. Fan speed adjustment automatically.
11. Optional external battery bank.
12. EMI/RFI noise filter.
13. Shutdown and restart schedule.

Model	HR111K	HR112K	HR113K	HR116K
Rated Power
Power	1kVA/0.7kW	2kVA/1.4kW	3kVA/2.1kW	6kVA/4.2kW
Input
Nominal voltage	110VAC/220VAC			220VAC
Voltage range	60-138VAC/115-300VAC			176-276VAC
Frequency range	46-54Hz(default), user adjustable within 40-60Hz			46-54Hz
Power factor	0.97			0.98
Output
Voltage	110VAC/220VAC ± 2%			220VAC ± 1%
Frequency	50/60Hz± 0.2Hz			50/60Hz± 0.05Hz
Waveform	Pure sine wave
Distortion	Less than 2% under linear load
Overload capability	110%-150% for 30 seconds, 150% for 300 mS			105%-130% for 10min, 130% for 1min
Crest factor	3: 1
Battery
Type	Internal			External
Nominal DC voltage	36VDC	96VDC		240VDC
Bypass
Automatic transfer	Overload time up and UPS failure
Transfer time	0mS
LCD/LED information and audible alarm
Status	Load percentage, battery state, utility state, inverter and bypass state, overload, system fault.
Audible alarm	Bypass mode, battery mode, battery low, overload, fault
Communications
DB9 port	RS232
Intelligent slot	WebPower, AS400 card and WinPower CMC
Environment
Operating temperature	0-40 0 C
Operating humidity	20-90 non-condensing
Weight
Net(kg)	15.3	10.3	11.2	18.3
Dimension
WDH(mm)	48245088(2U)			482600130(3U)

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
