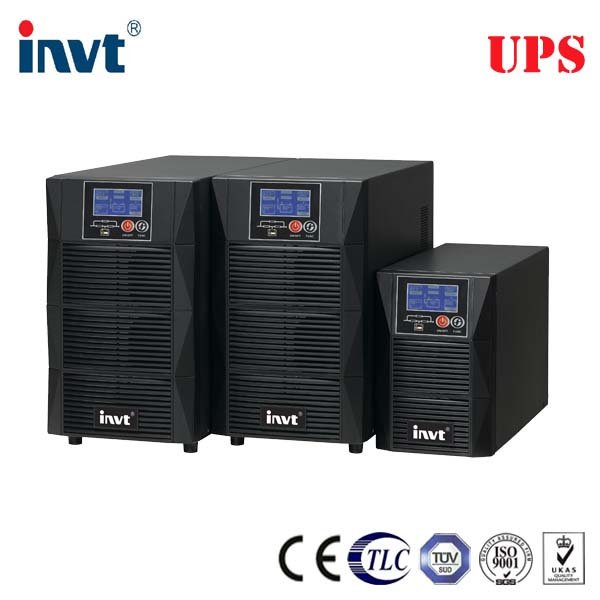

| Prod Model: |
HT11 UPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output PF: |
0.9 |
| Power Range: |
1~3kVA |
| Output Voltage: |
120V/220V |
| DC: |
36V/72V/96V |
| Output Wave: |
Pure Sine Wave |
| Name: |
Uninterruptible Power Supply 1kVA UPS 20kVA UPS |
| UPS Type: |
1kVA UPS-3kVA UPS |
| Moniting: |
Snmp Card |
| Eco Efficiency: |
98% |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Application: |
Computer |
| Classification: |
Backup |
| Output Capacity: |
1-3kVA |
| Brand: |
Invt |
Product Description
Features
High frequency and double conversion on-line technology:
1. Wide input voltage range, True online UPS
2. Battery cold start.
3. DSP technology, advantaged battery management
4. Automatical fan speed adjustment. Overload and short circuit protection
5. LCD status display, more information and history log
6. Complete protection functions
7. Network/Fax/modem surge protections
8. EMI/RFI noise filter
9. Smart Rs232 port with monitoring software
10. PFC technology
11. Intelligent slot for SNMP adaptor(optional)
| | HT1101S | HT1101L | HT1102S | HT1102L | HT1103S | HT1103L |
| INPUT | |
| Cold Start | YES, default frequency=50Hz or settable |
| Acceptable Input Voltage | 110VAC~288VAC |
| | 100% load@>176VAC |
| 80% load@>154VAC |
| 70% load@>132VAC |
| 50% load@>110VAC |
| Phase | Single phase in,single phase out |
| Transfer Voltage Range | (200VAC/208VAC/220VAC/230VAC/240VAC) |
| -Line low transfer | 110VAC |
| -Line low recovery | 121VAC |
| -Line high transfer | 288VAC |
| -Line high recovery | 281VAC |
| Input Current | |
| -Rating(nominal input voltage) | 4.8A | 9.6A | 14.4A |
| Input Power Factor | ≥0.97 |
| Input Frequency Range | 40~70Hz |
| OUTPUT | | | |
| Frequency adaptable | Settable |
| Power | |
| -Power(kVA) max | 1 | 2 | 3 |
| -Power(kW) max | 0.9(0.8 for 200VAC/208VAC) | 1.8(1.6 for 200VAC/208VAC) | 2.7(2.4 for 200VAC/208VAC) |
| Output Voltage | |
| -Waveform(Bat. Mode) | Pure Sine Wave |
| -Nominal voltage | 200/208/220/230/240VAC |
| -Voltage regulation | ± 1 % |
| -Transient response | ≤5% (0% - 100% -0%) |
| -Transient recovery | ≤10ms (0% - 100% -0%) |
| -Voltage distortion | ≤1% THD, linear load |
| | ≤5.5% THD, non-linear load | ≤5% THD, non-linear load | ≤5% THD, non-linear load |
| Output Frequency | |
| -Synchronization range | ±5Hz default |
| -Slew rate | 0.5~5Hz/s,2 Hz/s default |
| -Battery mode | (50±0.1) Hz default |
| Transfer Time | |
| -Line mode to battery mode | 0 |
| -Inverter to bypass | 2ms |
| Efficiency | |
| -Line mode with battery full charged | 86%@100% load, 87%@50% load | 91%@100% load, 88%@50% load | 88%@100% load, 90%@50% load |
| -ECO mode | 94.0% | 95.0% | 95.0% |
| -Battery mode | 83%@100% load, 84%@50% load | 87%@100% load, 88%@50% load | 87%@100% load, 89%@50% load |
| Noise(1m away) | <43dB@<60%load,<47dB@>60%load | <45dB@<60%load,<50dB@>60%load | <45dB@<60%load,<50dB@>60%load |
| Overload Capability(Inverter) | 105%~130%: Transfer to bypass after 1 mins. |
| 150%: Transfer to bypass after 30s |
| Overload Capability(Battery Mode) | 105%~130%:shutdown after 10s |
| 150%:shutdown after 5s |
| Overload Capability (Bypass Mode) | <130%: Long time |
| >130%&<150%:Shutdown after 10min |
| >150%&<180%:Shutdown after 5 seconds |
| Crest Ratio | 3:1 |
| BATTERY | |
| Rating/Type | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/7Ah | Depend on the capacity of external batteries |
| Quantity | 3 | 6 | 8 |
| DC Voltage | 36VDC | 72VDC | 96VDC |
| Back-up Time | 6mins @80% load | Depend on the capacity of external batteries | 6mins @80% load | Depend on the capacity of external batteries | 5.5mins @80% load | Depend on the capacity of external batteries |
| Battery-Low Voltage | 33VAC~35VDC depending on load | 66VDC~70VDC depending on load | 88VDC~94VDC depending on load |
| Charger | | |
| -Charging voltage | float:41VDC/boost:42VDC | float:82VDC/boost:84VDC | float:109VDC/boost:112VDC |
| -Charging current (max) | 1A | 8A | 1A | 8A | 1A | 8A |
| -Charging time | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries |
| Leakage current | <1mA | <1mA | <1mA |
| INDICATOR & ALARM | |
| -Display | LED+LCD |
| -Alarm | two short one long |
| -Fault | Continuous beeping |
| INTERFACE | |
| -Smart RS232 | Standard Cable support INVT Power Monitor Software |
| -SNMP(option) | Power Managment from SNMP Manager and Web Browser |
| OPTION | |
| -Intelligent Kits | DB9 port, dry contact |
| -USB | B-type USB port |
| -SNMP Kits | pluggable type |
| MECHANICAL | |
| -W*D*H (mm) | 144*353*222 | 190*374*336 | 190*426*336 |
| -W*D*H (mm)(shipment) | 240*448*320 | 285*470*420 | 285*521*420 |
| -Net Weight (KG) | 12 | 6 | 21 | 10.5 | 25.6 | 11.5 |
| -Package Weight(KG) | 13 | 7 | 22 | 12 | 27 | 13 |
| Color | Black default |
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
