Invt Variable Frequencyinverter AC Drive

Name: Invt Variable Frequencyinverter AC Drive
Brand: all-electronics-online.com
SKU: 812871295
Availability: InStock
Rating: 4.8 (76 reviews)

Price:	US $ 200-500/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BD600
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Folinn
Application:	Motor

Product Description

invt variable frequencyinverter AC drive
Know Much More about FOLINN
1994 Wenling city, The first Chinese rivate enterprise founded, Fuling started its frist step.
2000"Taizhou Fuling Motor Co., Ltd" Founded
2001 ISO9001:2000/CE approved
2004 Honored as one of the Zhejiang High-Tech Enterprise
2007 Elected as one of the first council members of CEEIA inverter department. Posted on inverter industry authority magazine "Inverter World", Honored as one of the "China TOP 10 Brands", chosen as the "member of the year of 2007" by CEEIA
2009 Become "The Best Commercial Partner of Infineon"
2010 Renamed as "Taizhou Fuling Electric Co., LTD" and registered capital increased to 5000000 USD Dollars
2011 Elected as one of the second council members of CEEIA inverter department DZB 10HV series inverter has been approved as the "Zhejiang Tech Innovation Special Item"
2012Newly increase 2 more brands: "FUREEN" AND "B&B Power"
2013 Won the honor of "Low Voltage frequency Inverter Ten Domestic Brands"
2014Got 16 of patent certificate, 3 of software copyright, 7 of trademark registration company was renamed from" Taizhou Fuling Electric Co., LTD" to "Zhejiang New Folinn Electric Co., Ltd"

Why choose Folinn?

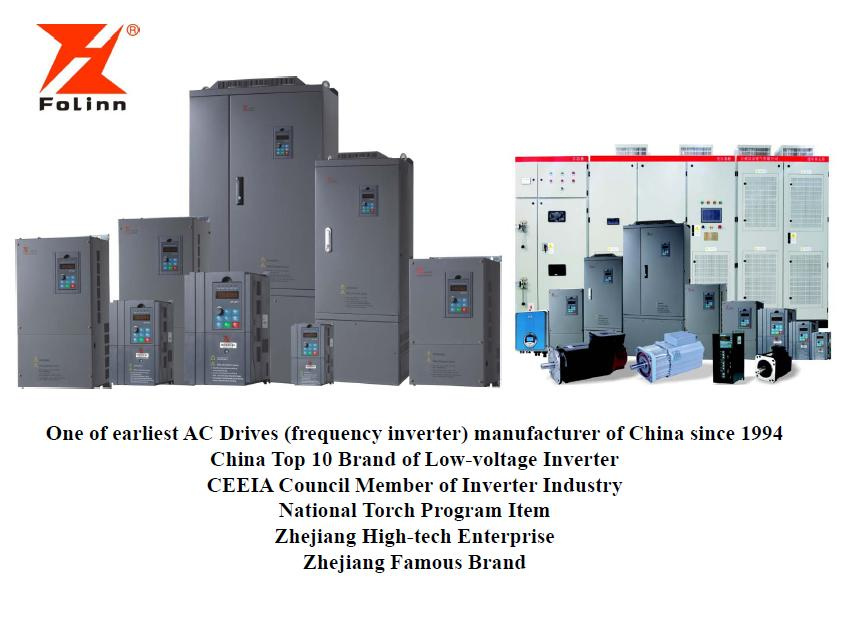

1.    One of earliest inverter (AC drive) manufacturer in China since 1994(more than 20 years history)
2.    TOP 10 inverter manufacturer in China with many years continuous.
3.    CEEIA Council Member of Inverter Industry in China
4.    National Torch Program.
5.    National High-tech Enterprise.
6.    Annual sales volume is 450 million.
7.    Own technology
8.    Quality technology
More than 10 times checking and test.
Every product is with a particular series number in order to tracking and tracking procedures.

Introduction
BD600 series is latest version for high performance vector inverter based on BD300. Multiple control modes. New vector control algorithm can achieve stability at slow speed, stronger load capacity at low frequency. Support SVC, VC and V/F control, and achieved using multiple PG cards. Stronger functions of motor control has clearly raised.

Product Features
Outstanding performance.

Larger torque output when low frequence.
Fast dynamic response.
Super strong overload capacity

Accurate motor parameter self learning
BD 600 series inverter can accurately provide dynamic or static self- learning of motor parameter, simple debugging, easy operating, high control accuracy and response speed.

Rapid current limit
Rapid current limiting function can limit current rapidly within the current protection value, to ensure the safety of the equipment, and avoid over-current alarm caused by sudden loading or interference.

Over-excitation gain and oscillation suppression gain

Rapid RUN/STOP
Excellent current and voltage control technology can realize rapid RUN/STOP, restrain over voltage and overcurrent.

Overvoltage stall protection & Overcurrent stall protection

Support both asynchronous motor and synchronous motor

Asynchronous motor
Synchronous motor (by using extension card)

Support multiple control mode
Speed sensorless vector control (SVC), sensor vector control (VC), V/F control.

Flexible and practical analog input / output
Each analog input (AI1~AI3) can set 4 point curves.

High-speed pulse input and output fuctions
High speed pulse specification: voltage range 9V-26V, frequency range 0~100KHZ. BD600 can setting 2 pint curves, high control precision. HD/HDO high pulse input/output terminal can be used for DI/DO.

Swing frequency control function

Frequency source binding & compose

Run command source are free to bind any frequency source. 10 kinds of main-auxiliary frequency source, flexible to adjust and compose.
For example : A+B, A-B, AB switch ect

None-stop when instantaneous power off

Simple PLC

Multiple motor switch
2 group of motor parameters, and control 1 motors by on inverter.

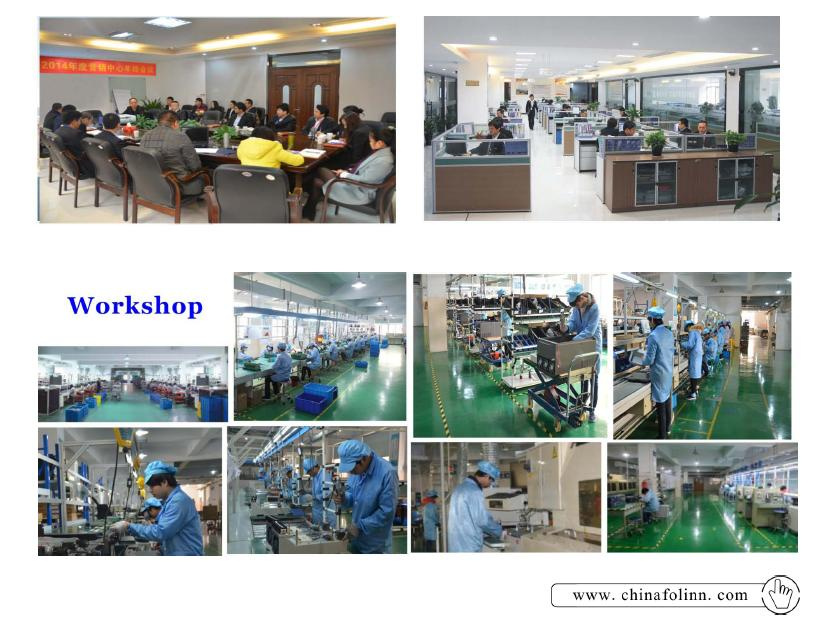

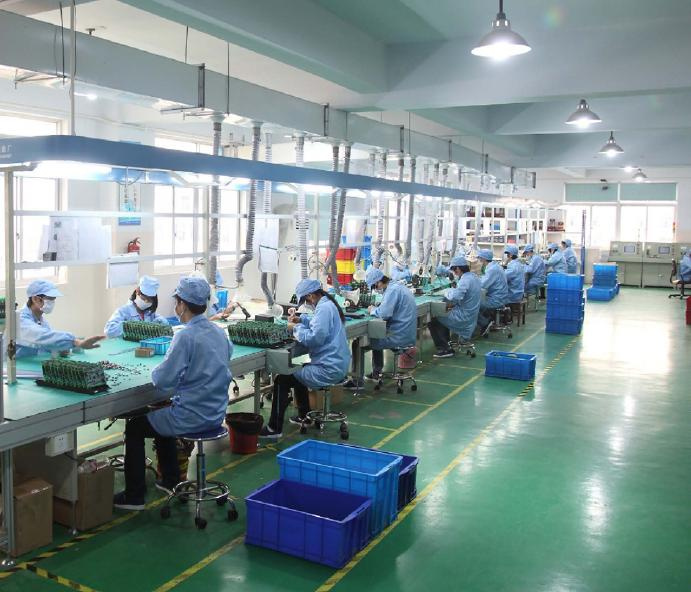

Our factory

Models		Rated power(KW)		Rated input current(A)	Rated output current(A)	Suitable Motor(KW)
Input 1PH 220V±15% 47HZ~63HZ
BD600-0R5G-2		0.55		5.4	4.0	0.55
BD600-0R7G-2		0.75		8.2	5.0	0.75
BD600-1R5G-2		1.5		14.0	7.0	1.5
BD600-2R2G-2		2.2		23	10.0	2.2
Input 3PH 220V±15% 47HZ~63HZ
Models	Rated power(KW)			Rated input current(A)	Rated output current(A)	Suitable Motor(KW)
BD600-0R5G-2	0.55			3.8	3.2	0.55
BD600-0R7G-2	0.75			4.9	4.1	0.75
BD600-1R5G-2	1.5			8.4	7.0	1.5
BD600-2R2G-2	2.2			11.5	1.0	2.2
BD600-3R7G-2	3.7			18	15	3.7
BD600-5R5G-2	5.5			24	23	5.5
BD600-7R5G-2	7.5			37	31	7.5
BD600-011G-2	11			52	45	11
BD600-015G-2	15			68	58	15
BD600-018G-2	18			84	71	18
BD600-022G-2	22			94	85	22
BD600-030G-2	30			120	115	30
BD600-037G-2	37			160	145	37
BD600-045G-2	45			198	180	45
BD600-055G-2	55			237	215	55
BD600-075G-2	75			317	283	75
Input 3PH 380V±15% 47HZ~63HZ
BD600-0R7G/1R5P-4			0.75/1.5	3.4/5.0	2.5/3.7	0.75/1.5
BD600-1R5G/2R2P-4			1.5/2.2	5.0/5.8	3.7/5.0	1.5/2.2
BD600-2R2G/3R7P-4			2.2/3.7	5.8/10.5	5.0/8.5	2.2/3.7
BD600-3R7G/5R5P-4			3.7/5.5	10.5/14.6	8.5/13	3.7/5.5
BD600-5R5G/7R5P-4			5.5/7.5	14.6/20.5	13/18	5.5/7.5
BD600-7R5G/011P-4			7.5/11	20.5/26	18/24	7.5/11
BD600-011G/015P-4			11/15	26/35	24/30	11/15
BD600-015G/018P-4			15/18.5	35/38.5	30/37	15/18.5
BD600-018G/022P-4			18.5/22	38.5/46.5	37/46	18.5/22
BD600-022G/030P-4			22/30	46.5/62	46/58	22/30
BD600-030G/037P-4			30/37	62/76	58/75	30/37
BD600-045G/055P-4			45/55	92/113	90/110	45/55
BD600-055G/075P-2			55/75	113/157	110/150	55/75
BD600-075G/093P-2			75/93	157/180	150/170	75/93
BD600-093G/110P-2			93/11	180/214	170/210	93/110
BD600-110G/132P-2			110/132	214/256	210/250	110/132
BD600-132G/160P-2			132/160	256/307	250/300	132/160
BD600-160G/200P-2			160/200	307/385	300/380	160/200
BD600-200G/220P-2			200/220	385/430	380/430	200/220
BD600-220G/250P-2			220/250	430/468	430/465	220/250
BD600-250G/280P-2			250/280	468/525	465/520	250/280
BD600-280G/315P-2			280/315	525/590	520/585	280/315
BD600-315G/350P-2			315/350	590/665	585/650	315/350
BD600-350G/400P-2			350/400	665/785	650/754	350/400
BD600-400G/500P-2			400/500	785/965	754/930	400/500
BD600-500G/630P-2			500/630	965/1210	930/1180	500/630
BD600-630G/710P-2			630/710	1210/1465	1180/1430	630/710

Any question, pls tell Jane with many thanks.

Our Vision

To create a first-class enterprise in the electrical control field and low-carbon happy life

Core Values

Win-win Cooperation Value Creation

Quality Policy

Absolute Quality, Brand Creation

Core Values

Scientization, Systematism, Standardization, Professionalization, Informationization

Development History

1994 In Wenling, the city with the first Chinese private enterprise founded, Fuling started its first step

2000 "Taizhou Fuling Motor Co., Ltd" officially founded

2001 ISO9001: 2000 approved / CE approved

2004 Honored as one of the "Zhejiang Hi-Tech Enterprises"

2007 Elected as one of the first council members of CEEIA Inverter Department, Posted on inverter industry authority magazine "Inverter World" Honored as one of the "China Top 10 Brands", Chosen as the "Member of the Year of 2007" by CEEIA

2009 Became "the Best Commercial Partner" of Infineon

2010 Renamed as "Taizhou Fuling Electrical Co., Ltd" and registered capital increased to 5, 000, 000 USD

2011 Elected as one of the second council members of CEEIA Inverter Department DZB10HV series inverter has been approved as the "Zhejiang Technology Innovation Special Item"

2012 Newly increases 2 more brands: "FUREEN" and "B&B Power"

2014 Company was renamed from "Taizhou Fuling Electric Co., Ltd" to "Zhejiang New Folinn Electric Co., Ltd"

Company Profile

Zhejiang New Folinn Electric Co., Ltd. Founded in 1994, is located at Wenling, the youngest costal city in China, a well-known manufacturing base in Yangtze River Delta. Honored as a Zhejiang Hi-Tech Enterprise, we focus on R&D, manufacturing, sales and service for motor auto controlling products.

Taizhou Fuling is specialized in manufacturing HV(LV) & Low Voltage (LV) inverter, servo drive products, and new energy products. Based on our own solid industrial auto controlling technology and creative concept, we concentrate on driving technology improvement, device manufacture and

Update, devoting ourselves to providing every customer with the best quality product and service and pushing this industry forward. We stand on the principle of "Quality & Innovation is the industry's life", and realize it in our company moving steps, in order to keep ourselves and our customers growing together. Fuling sales network has been reached out all major parts of China and some other countries in Europe, South-East Asia, MID-East, America, and Oceania.
