IP 65 Ce Certification of Quality Infrared Beam Sensor Proximity Sensor

IP 65 Ce Certification of Quality Infrared Beam Sensor Proximity Sensor
Price: US $ 2-15piece/pieces
Min Order: 1piece/pieces
Pay Type: T/T,Western Union,Paypal
Prod Model: AE3JK

Product Description

IP 65 CE certification of quality infrared beam sensor proximity sensor

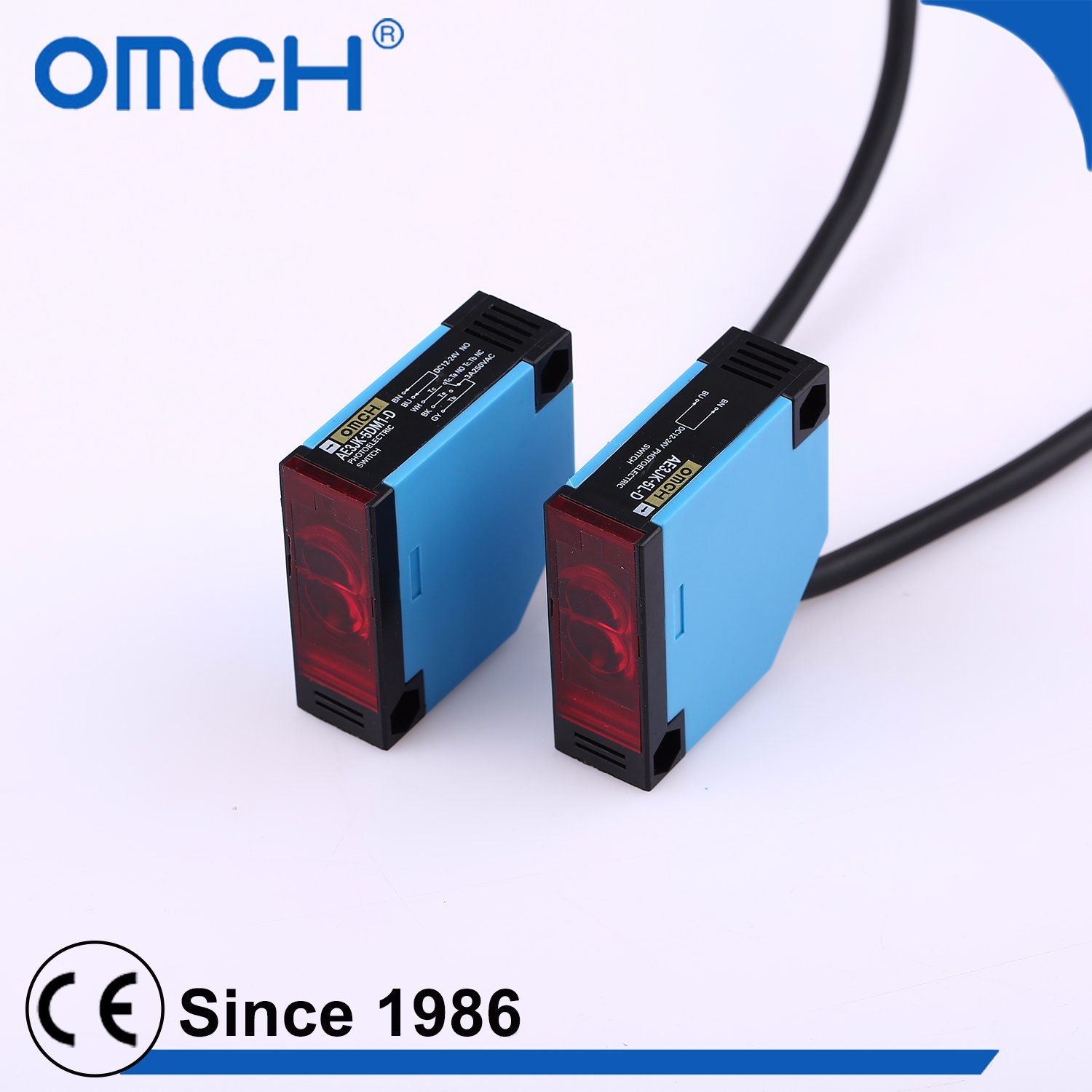

PRODUCT DISPLAY







PRODUCT DESCRIPTION


Feature
We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use



Type and Specification
We sincerely welcome agents from all over the world

Dimension

18X50X50

Mounting way

Through beam type

Type

DC type

NPN

NO

AE3JK-5DN1-50L

NC

AE3JK-5DN2-50L

NO+NC

AE3JK-5DN3-50L

PNP

NO

AE3JK-5DP1-50L

NC

AE3JK-5DP2-50L

NO+NC

AE3JK-5DP3-50L

AC type

Two wire

NO

AE3JK-5DA1-50A

NC

AE3JK-5DA2-50A

relay output

DC iNO

AE3JK-50M1-D

AC iNO

AE3JK-50M1-A

DC NC

AE3JK-50M2-D

AC NC

AE3JK-50M2-A

Detection distance

5m±10%

Set distance

Opaque Object

Standard detection object

Fixed

Response time

DC:1ms; AC:30ms



 DelP2 distance:

10% below of the detection distance

Detection object

Magnetic metal (the detection distance decreases when it is non-magnetic metal)

Supply voltage

DC type: DC12-24V(6-36V) Impulse(p-p) 10% below

Ac type: AC110-220V (36-250V) 50/60Hz

Consumption current

N.P type:13mA below   D type:0.8mA below   A type:1.7mA below

Control output

N.P type:300 mA below   D type:200mA below   A type:400mA below

Loop protection

N.P.D type: reversal connection protection, surge absorption, load short-circuit protection

A type: surge absorption

Ambient temperature humidity

During operation,storage: individually-30~+65(No freeze,no drew),

During operation,storage: Individually35~95%RH

Insulation resistance

50 MΩ about(DC500 megameter) between charging and housing

Withstand voltage

AC1000V50/60Hz 1 min between charging and housing

Temperature influence

Temperature range-30~+65,at+23,+/-15% detection distance

Temperature range-25~+60,at+23,+/-10% detection distance

Voltage influence

Inside+/-15%rated supply voltage range, at rated supply voltage value;

Inside +/-10% detection distance

Protection structure

IP65 ICE specification

material

Housing: Nickel plated brass; Detection surface: ABS
