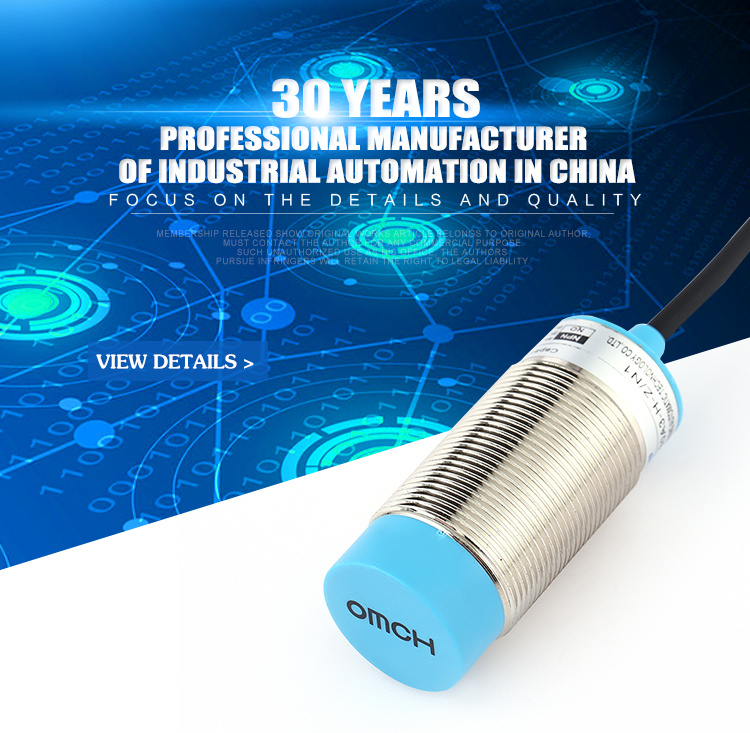

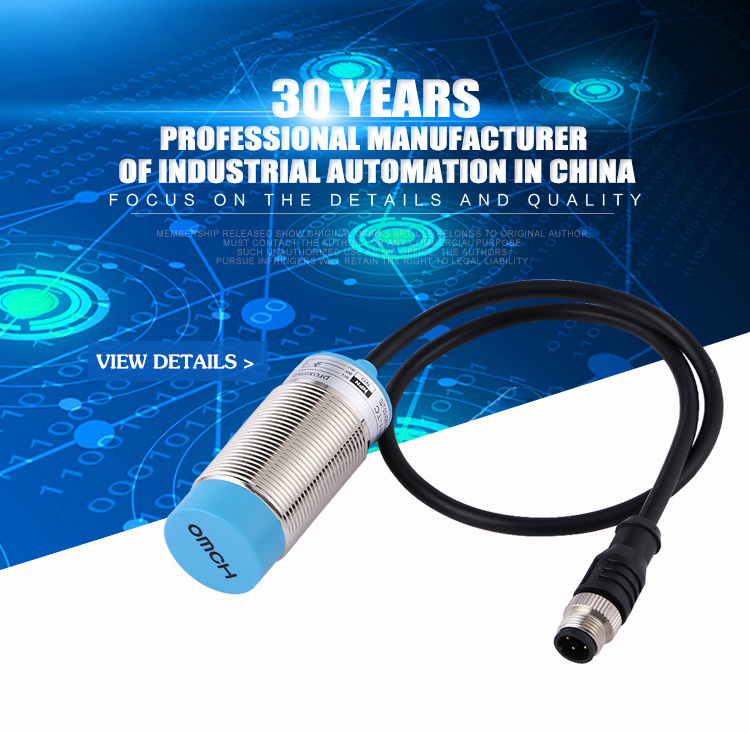

IP 67 30mm Waterproof Capacitive Proximity Sensor

Dimension

M30x1.5

Mounting wP2

flush type

Non-flush type

 TYPE

------------

DC
TYPE

NPN

     NO

HLJC30A3-10-Z/N1

HLJC30A3-H-Z/N1

     NC

HLJC30A3-10-Z/N2

HLJC30A3-H-Z/N2

NO+NC

PNP

     NO

HLJC30A3-10-Z/P1

HLJC30A3-H-Z/P1

     NC

HLJC30A3-10-Z/P2

HLJC30A3-H-Z/P2

 NO+NC

Two Wire

     NO

     NC

AC
TYPE

Two Wire

     NO

Three wire

     NC

 NO+NC

 Detection distance

10 mm+/-10%

20 mm+/-10%

 Set distance

0~8mm

0~18mm

 Standard detection object

Iron50*50*1

 Response frequency

DC:>=0.5kHz AC:25Hz

DC:>=0.5kHz AC:25Hz

 DelP2 distance:

10% below of the detection distance

Detection object

Magnetic metal (the detection distance decreases when it is non-magnetic metal)

Supply voltage

DC type: DC12-24V(6-36V) Impulse(p-p) 10% below

Ac type: AC110-220V (36-250V) 50/60Hz

Consumption current

N.P type:13mA below   D type:0.8mA below   A type:1.7mA below

Control output

N.P type:300 mA below   D type:200mA below   A type:400mA below

Loop protection

N.P.D type: reversal connection protection, surge absorption, load short-circuit protection

A type: surge absorption

Ambient temperature humidity

During operation,storage: individually-30~+65(No freeze,no drew),

During operation,storage: Individually35~95%RH

Insulation resistance

50 MΩ about(DC500 megameter) between charging and housing

Withstand voltage

AC1000V50/60Hz 1 min between charging and housing

Temperature influence

Temperature range-30~+65,at+23,+/-15% detection distance

Temperature range-25~+60,at+23,+/-10% detection distance

Voltage influence

Inside+/-15%rated supply voltage range, at rated supply voltage value;

Inside +/-10% detection distance

Protection structure

IP65 ICE specification

material

Housing: Nickel plated brass; Detection surface: ABS
