IP Network Broadcast Terminal for IP Network Public Address System

Prod Model:	CY-102C
Service:	OEM
Warranty:	3 Years
Item:	IP Network Public Address System
Usage:	School
Type:	Wired
Support Network:	Ethernet
Information Content:	Voice
Certification:	RoHS
Condition:	New

Product Description

IP network broadcast terminal for IP Network Public Address System

Usage:
1. Rack-mounted mono IP network audio encode and decode terminal with LCD screen and button. DB-212A is marked with the COM base on DB-212.
2. The terminal can be set with external audio source and microphone to play, USB playing, recording remotely. It's suitable for playing audio source, broadcast in local place such as playground's BCU, lecture rooms and weak current equipment places to manage their power.

Description:

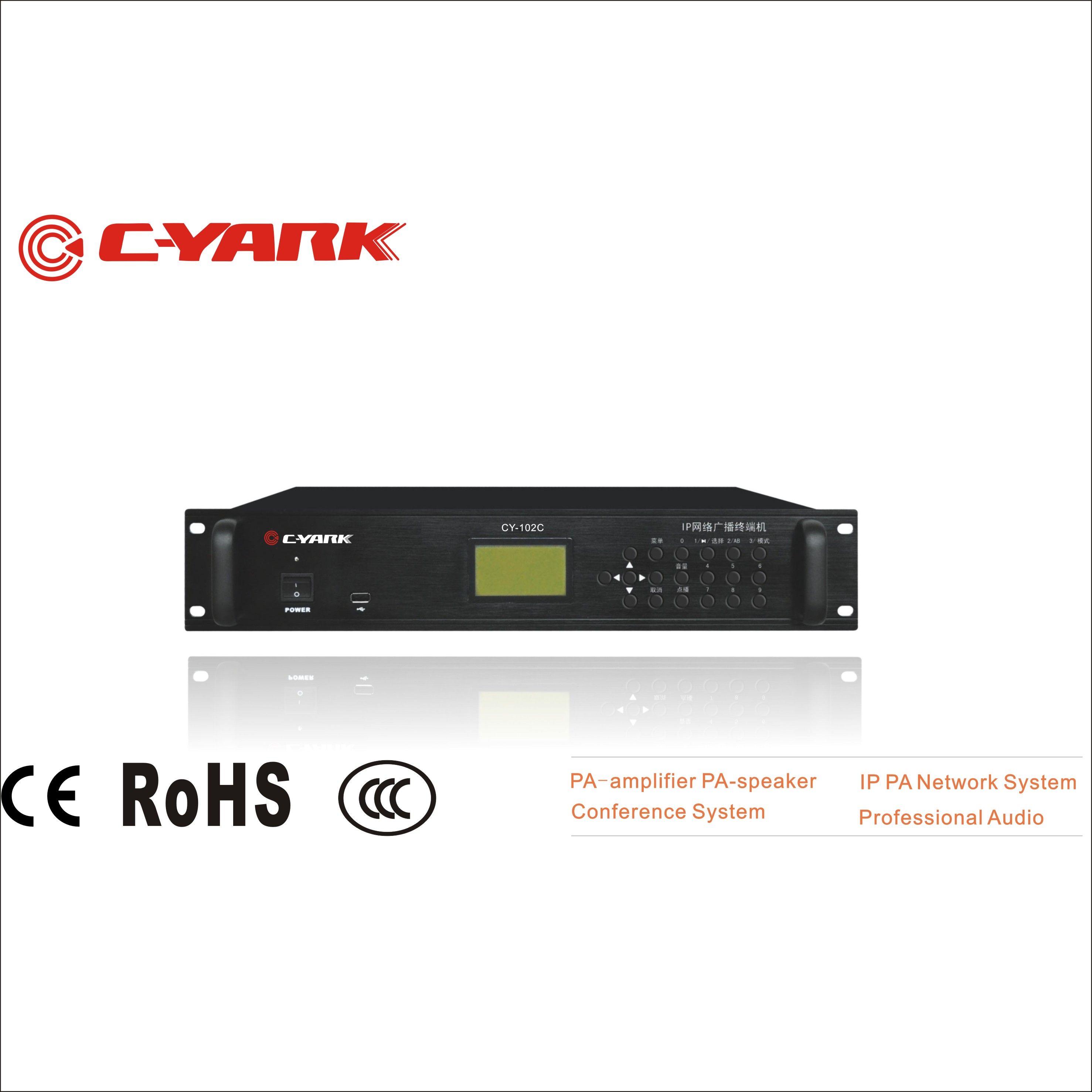

1. Standard rack mount design with black aluminium brush panel. Highlight LCD screen and operation keyboard for humanize interface.
2. The audio use DXUA form and built in hardware decode core to gather the real-time signal and decode audio.
3. It can receive paging and can broadcast by computer to call one or more IP terminal, zones, region.
4. The board integrated with 19 operation buttons for playing audio files in server and control play, pause, fast forward, rewind and kinds of playing modes.
5. With 1 MIC, 1 AUX input, 1 AUX output and built in 2x20W amplifier to connect constant impedance speaker directly. It can also support DHCP to gain the IP address automatically.
6. The terminal has priority division for emergency broadcast.
7. The terminal with built in intelligent management function to connect peripheral equipment such as power amplifiers. It can turn on or off the external power amplifier automatically according to the sound.
8. With power amplifier rear control interface and controlling interface for turn on or off. It can connect with multiple power amplifier and can control their power directly without need of setting with power sequencer.
9. The priority is divided into 3 levels. The higher priority can override the lower level.
10. 2 groups of 10/100M RJ45 network changeover interface which can be input or output.
11. The terminal can set the standby time from 1-99 minutes. User can set the time to turn off the amplifier after the task finished according to each zone's situation.
12. Terminal feedback function for connecting terminal or IP software to send the audio to any pointed one or more terminals by network.
13. 1 group USB port for flash disk playing and recording.
14. Support bi-directional talk back and with howling cancel function.
1. It can be set with TF card module to ring automatically when the network is broken. It can set the timing broadcast task automatically from server into TF card to insure the ring bell is the newest timing task when network is broken.
2. 2A-24V cutting module and can forcefully turn on the volume controller.
3. With infrared controller for convenient operation.
