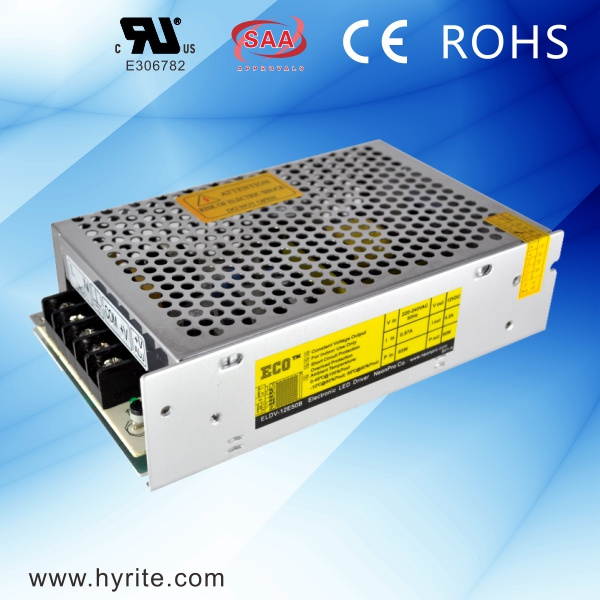

IP20 AC/DC 12V 60W LED Driver for LED Strips

Name: IP20 AC/DC 12V 60W LED Driver for LED Strips
Brand: all-electronics-online.com
SKU: 728321505
Availability: InStock
Rating: 4.3 (115 reviews)

Price:	US $ 5.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E60B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V or 110VAC
Output Voltage:	12V
Output Current:	5A
Power Factor:	0.65
Efficiency:	85%
IP Rating:	IP 20
Weight(Kg):	0.42
Packing Information:	60 PCS/ Carton, G.W 25 Kg
Outputtype:	Constant Voltage
Size:	1299842mm
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-250V
Brand:	Neonpro

Product Description

IP20 AC/DC 12V 60W LED driver for LED Strips

Brief Introduction
*Switching power supply/Indoor driver for LED module, strip, flex ribbon, bar light, *panel light, LED-neon tube, pixel lamp, perforating lamp
*Constant voltage output
*Mesh case (or electric fan) for ventilation
*100% burn-in test

Technical Specification

Model no.	ELDV-12E60B
Input voltage	220-240VAC 50Hz/60Hz or 110VAC
Max. power	60W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
Output voltage	12VDC ± 5%
Output current	3.5A
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Weight(kg)	0.42
Packing information	60 Pcs/ Carton, G.W 25 KG

More about Hyrite

Shipping Method
*Ocean or Air transportation
*International Express:DHL FedEx TNT UPS EMS etc.

Our services and advantages
*24 hours Service for customers all over the world
*More than 20 years sales and manufacturing experience for LED Power Supply and Neon transformers in China.
*All of our products are sold to overseas market.
*Our products passed CE ROHS SASO SAA UL BIS approval.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
