IP20 Constant Voltage 100W 12V LED Power Supply

Name: IP20 Constant Voltage 100W 12V LED Power Supply
Brand: all-electronics-online.com
SKU: 780841805
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	US $ 6.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E100B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	12V
Output Current:	8.3A
Output-Type:	Constant Voltage
Power Factor:	0.65
Installation:	Indoor
IP Rating:	IP 20
Cooling:	Free Air Convection
Max. Power:	100W Max
Model No.:	Eldv-12e100b
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	220-240
Brand:	Eco

Product Description

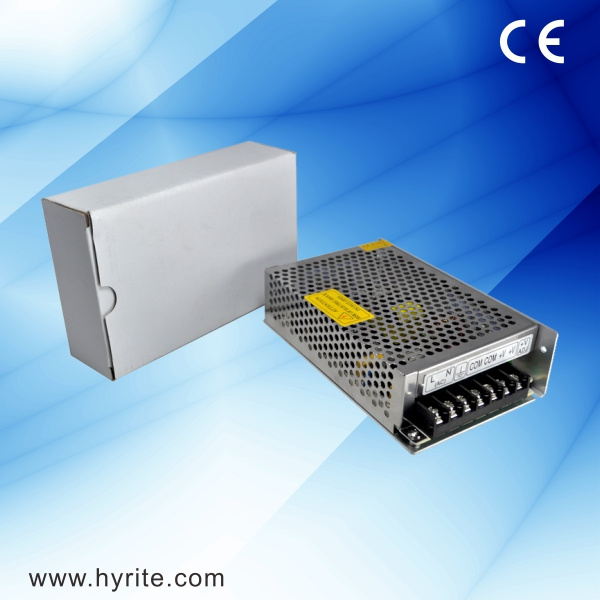

IP20 Constant Voltage 100W 12V LED power supply

Product Features:

Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
Constant voltage output
Mesh case (or electric fan) for ventilation
100% burn-in test
CE
2 years warranty
*5V/12V/24V

Our main products include:

-IP67 Waterproof constant voltage LED power supply with CE SASO SAA
-IP45 Rainproof constant voltage LED power supply with CE
-IP20 Indoor constant voltage LED power supply with CE
-Constant Current led driver for lighting with CE
-Dimmbale LED Driver with CE
-LED Modules with CE UL

Technical Specification:

Model no.	ELDV-12E100B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	100W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	8.3A
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1599842 mm
Weight(kg)	0.54
Packing information	50 Pcs/ Carton, G.W 27 KG

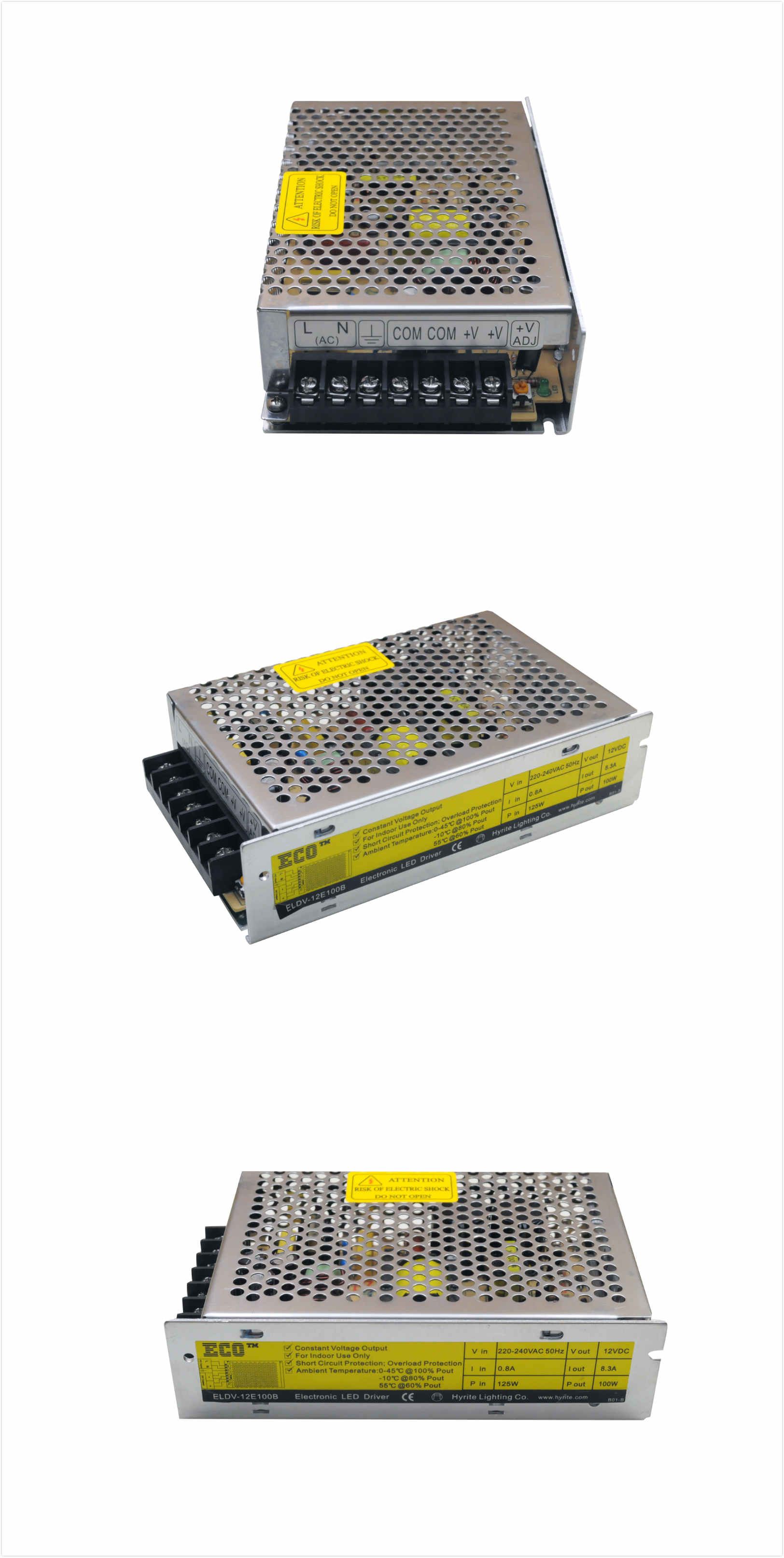

Detailed Pictures:

Application&Workshop:

Payment Terms:
-L/C
-T/T,30% despites before production,70% balance to be paid before delivery
-Western Union

Delivery:100% on schedule,samples can be shipped within 3 days.
OEM Service and Sample Orders are welcome.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
