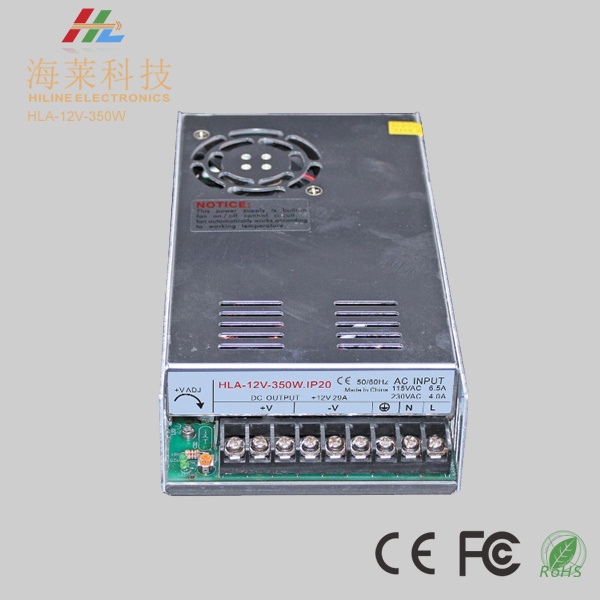

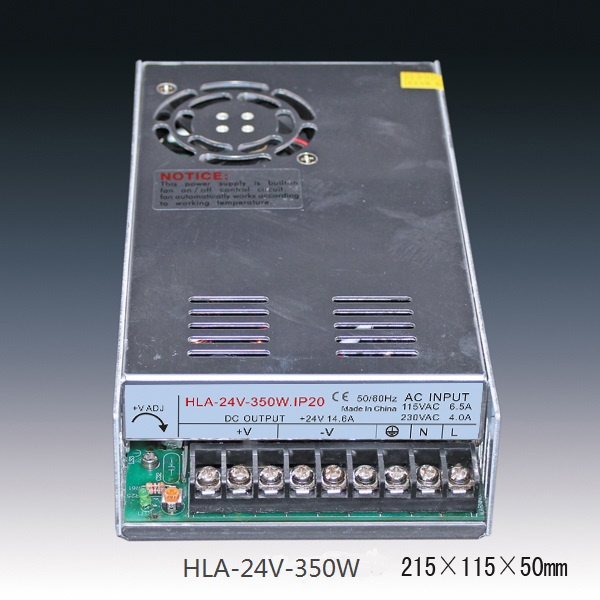

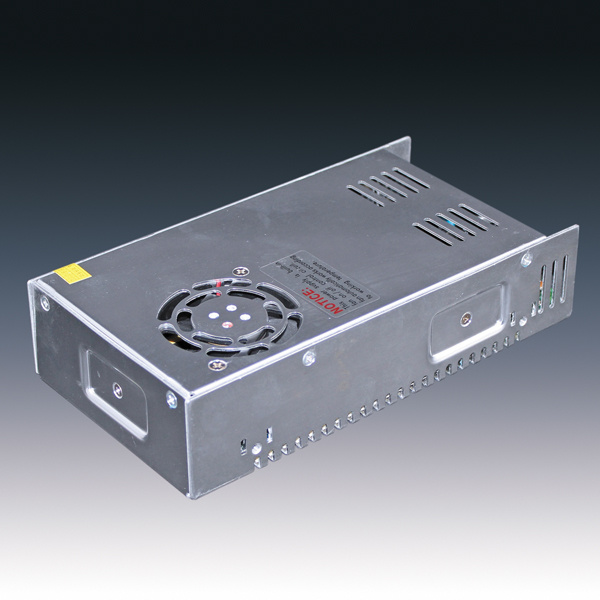

IP20 Indoor Power Supply 12V 24V 350W

Name: IP20 Indoor Power Supply 12V 24V 350W
Brand: all-electronics-online.com
SKU: 803684635
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	US $ 17-22/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLA-12V/24V-350W
Size:	21511550mm
Color:	White
Material:	Aluminum
Voltage:	Adjustable
Usage:	LED Strip LED Module
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Hiline

Product Description

350W 5V 12V24V 48V Switching Mode LED driver Features:

1. Constant Voltage design
2. Protections: Short circuit/Over load/Over current
3. Cooling by free air convection
4. 100% full load burn-in test
5. High Reliability

350W 5V 12V24V 48V Switching Mode LED driver Specifications:

MODEL		HL-12V-350W		HL-24V-350W
OUTPUT	Rated DC voltage	12V		24V
	Rated current	29A		14.5A
	Current range	0~25A		0~12.5A
	Rated Power	300W
	Voltage tolerance	12±0.5V		24±0.5V
	Ripple & Noise	120mV	240mV
	Load regulation	±5%
	Rise time	≤40mS
	Hold up time	0-3S/230VAC
INPUT	Voltage range	110VAC / 220VAC;
	Frequency range	50/60Hz
	Efficiency (Typ.)	80%		83%
PROTECTION	Over Current Short circuit	110%~120%
		Short circuit protection
ENVIRONMENT	Working TEMP.	0ºC~40ºC
	Storage TEMP.	-40ºC-70ºC
	Working Humidity	20~90% RH non condensing
	Vibration	10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
	TEMP. coefficient	±0.03%/ºC(0~50ºC)
SAFETY & EMC	Safety Standards	Design refer to EN61000-3-2,-3
	Withstand Voltage	I/P-O/P:1.5KVAC, I/P-GRUND: 1.5KVAC , O/P-GRUND:500VAC
	Contact current	<3.5mA @ 240Vac/60Hz
	EMC	Design refer to EN55022
OTHERS	MTBF	150KHours (25ºC)
	Dimension	21511550mm(LWH)
	Master Carton	20pcs/CTN

Zhuhai Hi-Line Electronics is located in the beautiful coastal city-Zhuhai, China. It is a high-tech R&D enterprise dedicated to developing, producing various innovative LED RGB lighting products, LED power supply and intelligent controllers.

Our main products include LED RGB digital boarder tube, LED digital video tube, LED strip light, LED digital DMX tube, LED power supply and RGB intelligent controllers for LED lights. These products are widely applied in municipal projects, casinos, stage lighting, home decoration etc which have been receiving good reputation among many parts of the foreign markets, such as American and European areas, Middle East and Southeast Asia etc.

We have been in LED field since 2007; We continuously focus on our tenet "Quality, Honest, Innovative and Efficient". With experienced R&D team and advanced equipments, we can offer our customers with the most-innovative, cost-effective and advanced decorative LED lighting products used for events, parties, home decorations, weddings, exhibitions, business, indoor and outdoor applications. There is no doubt that your satisfaction is our priority concert.

We are warmly welcome you to establish win-win commercial partnership with us to exchange valuable information and explore splendid future in the field of LED lighting.
