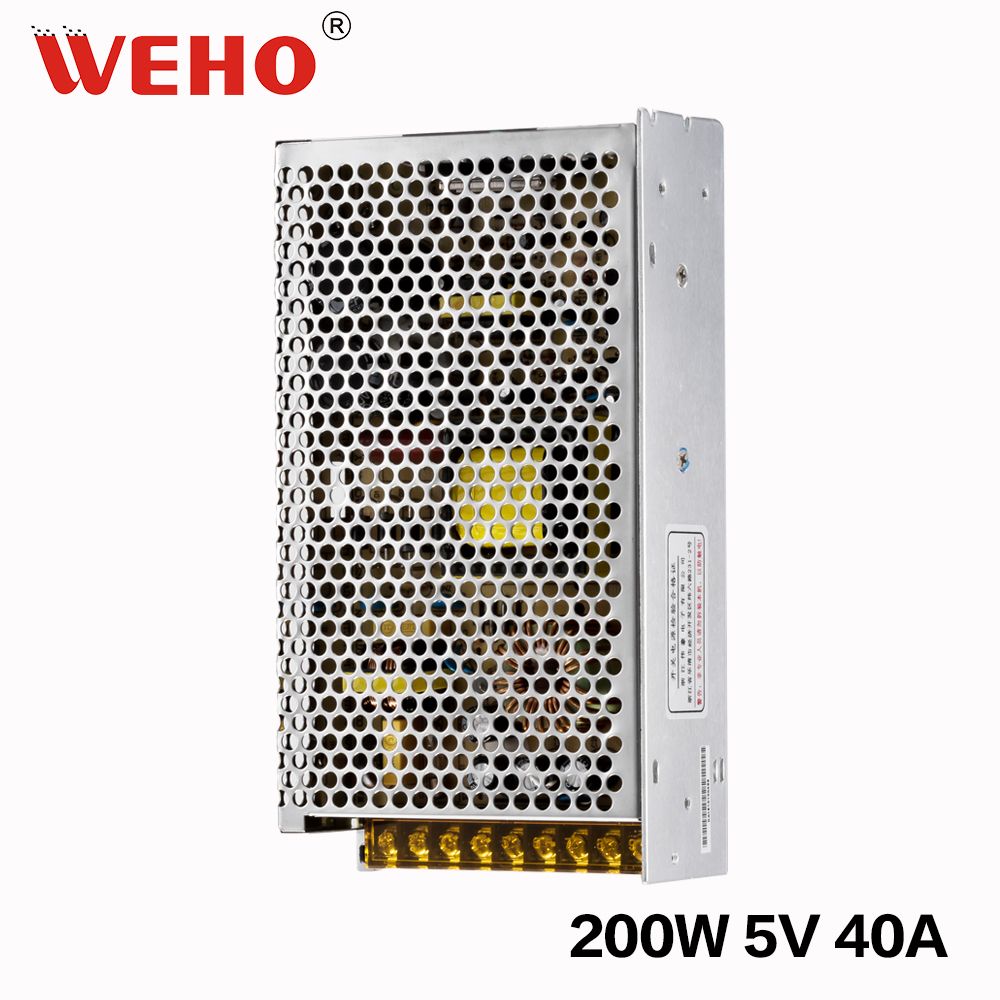

IP20 Single Output 200W 5V 40A Switching Power Supply

Name: IP20 Single Output 200W 5V 40A Switching Power Supply
Brand: all-electronics-online.com
SKU: 832268485
Availability: InStock
Rating: 4.5 (22 reviews)

Price:	US $ 9.6-13.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-200-5
Output Current:	40A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.85kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

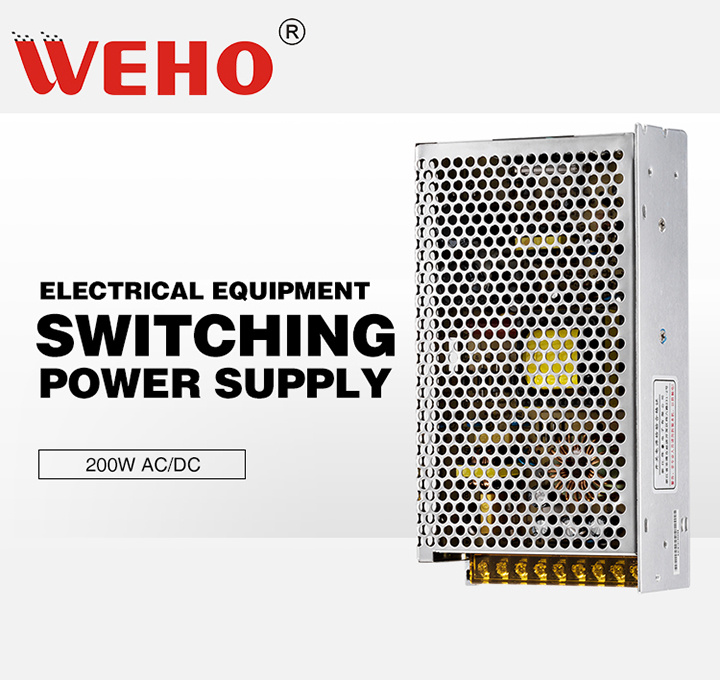

200W 5V DC Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Specifications:

Model	S-200-5	S-200-12	S-200-24	S-200-48
DC output voltage	5V	12V	24V	48V
Rated output current	40A	16.7A	8.3A	4.2A
Output current range	0-40A	0-16.7A	0-8.3A	0-4.2A
Wave and noise	100mVp-p	100mVp-p	150mVp-p	150mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±1%	±0.5%	±0.5%	±0.5%
Efficiency	80%	85%	85%	86%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/176~264VAC selected by switch
Input current	4.5A/115VAC 2.5A/230VAC
AC INnrush current	Cold-start current 20A/115V 35A/230V
Over load protection	105%~150% rated output power
Over load protection	Protection:Hiccup mode,recover automatically
Over voltage protection	5.6~6.6V	13.8~16V	27.5V~32V	55~64V
Over voltage protection	Protection:Shut down output voltage
Setup rise hold up time	200s,100ms,20ms
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10°C~+60°C,20~90%RH
Overall dimension	19911050mm /20pcs per carton
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC standards	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
Weight	0.85Kgs

Our Workshop:

Packaging:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
