IP20 Single Output 75W 5V 15A Switching Power Supply

Name: IP20 Single Output 75W 5V 15A Switching Power Supply
Brand: all-electronics-online.com
SKU: 832288855
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	US $ 5.8-8.3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-75-5
Output Current:	15A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.56kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Output Power:	51 - 100W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

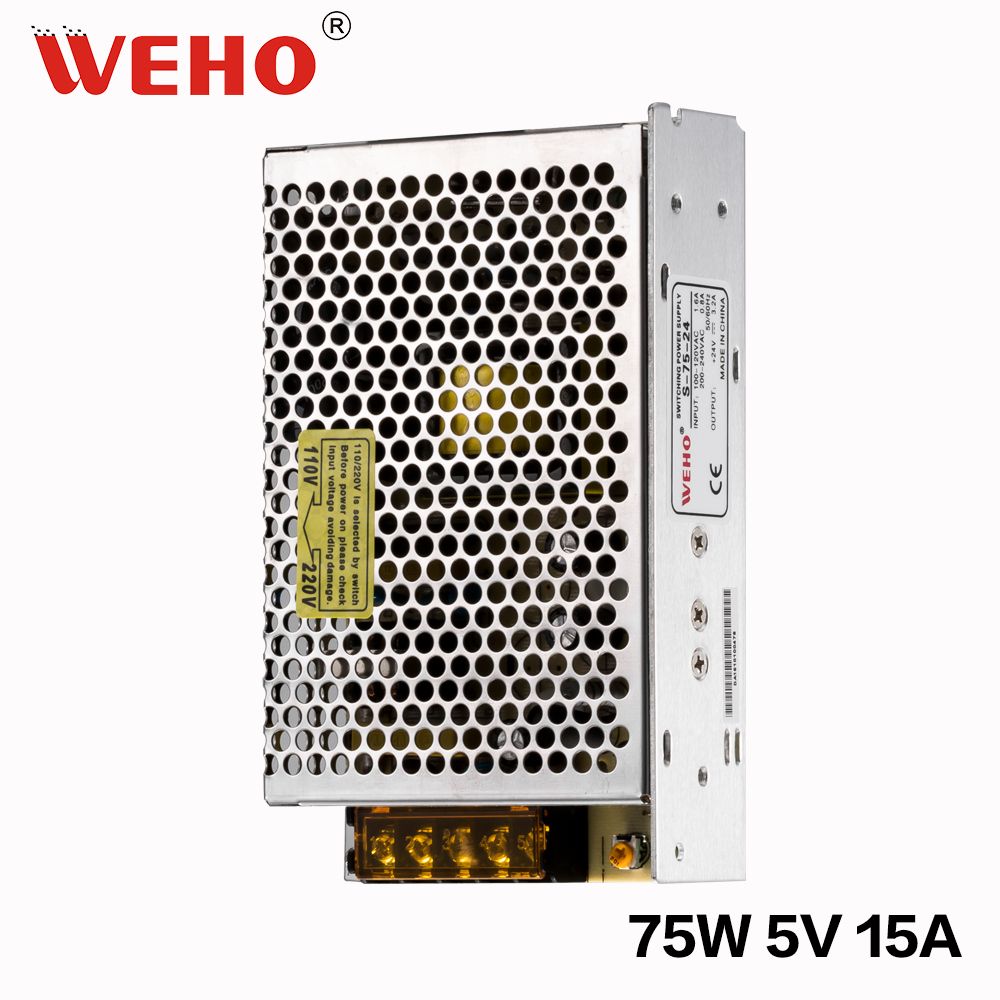

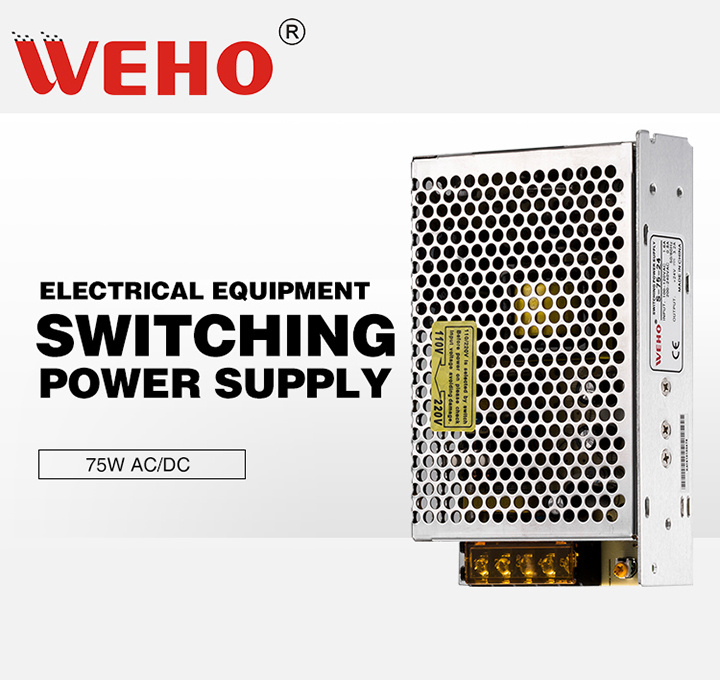

75W 5V DC Switching Power Supply

Features:

1. DC Output 12v 24v 48v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

Model	S-75-12	S-75-15	S-75-24	S-75-48
DC output voltage	12V	15V	24V	48V
Rated output current	6A	5.0A	3A	1.5A
Output current range	0-6A	0-5A	0-3A	0-1.5A
Wave and noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	78%	79%	82%	83%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range:	85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC
AC inrush current:	Cold-start current 15A/115V 30A/230V
Overload protection:	105%~150% Type:plusing hiccup shutdown Reset:auto recovery
Setup rise hold-up time:	200ms,50ms,20ms
Withstand voltage:Input and output internal:	1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance:	Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ
Working temperature	0~50°C
Safety standards:	GB4943 UL60950 EN60950
EMC standards:	EN55022 GB9254,class A
Overall dimension:	1599738mm
Weight:	0.56Kgs

Our Workshop:

Packaging:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
