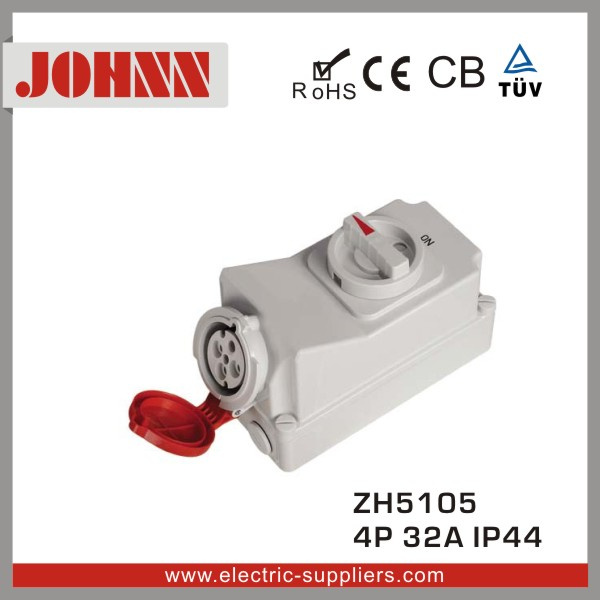

IP44 4p 32A Industrial Socket with Switches and Mechanical Interlock

Name: IP44 4p 32A Industrial Socket with Switches and Mechanical Interlock
Brand: all-electronics-online.com
SKU: 807428015
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZH5105
Rated Current:	32A
Grounding:	Standard Grounding
Color:	Red
Material:	Plastic
Protection Degree:	IP44
Poles:	4p
Copper Core:	Tinned Copper
Feature:	Safe / Waterproof / Durable
Delivery Time:	Within 25 Days After Rec
Delivery Methods:	by Sea / by Air / by
Standard:	Swiss Standard
Certification:	RoHS,Ce,CB,ISO9001
Shape:	EP
Nominal Voltage:	400V
Brand:	Johnn

Product Description

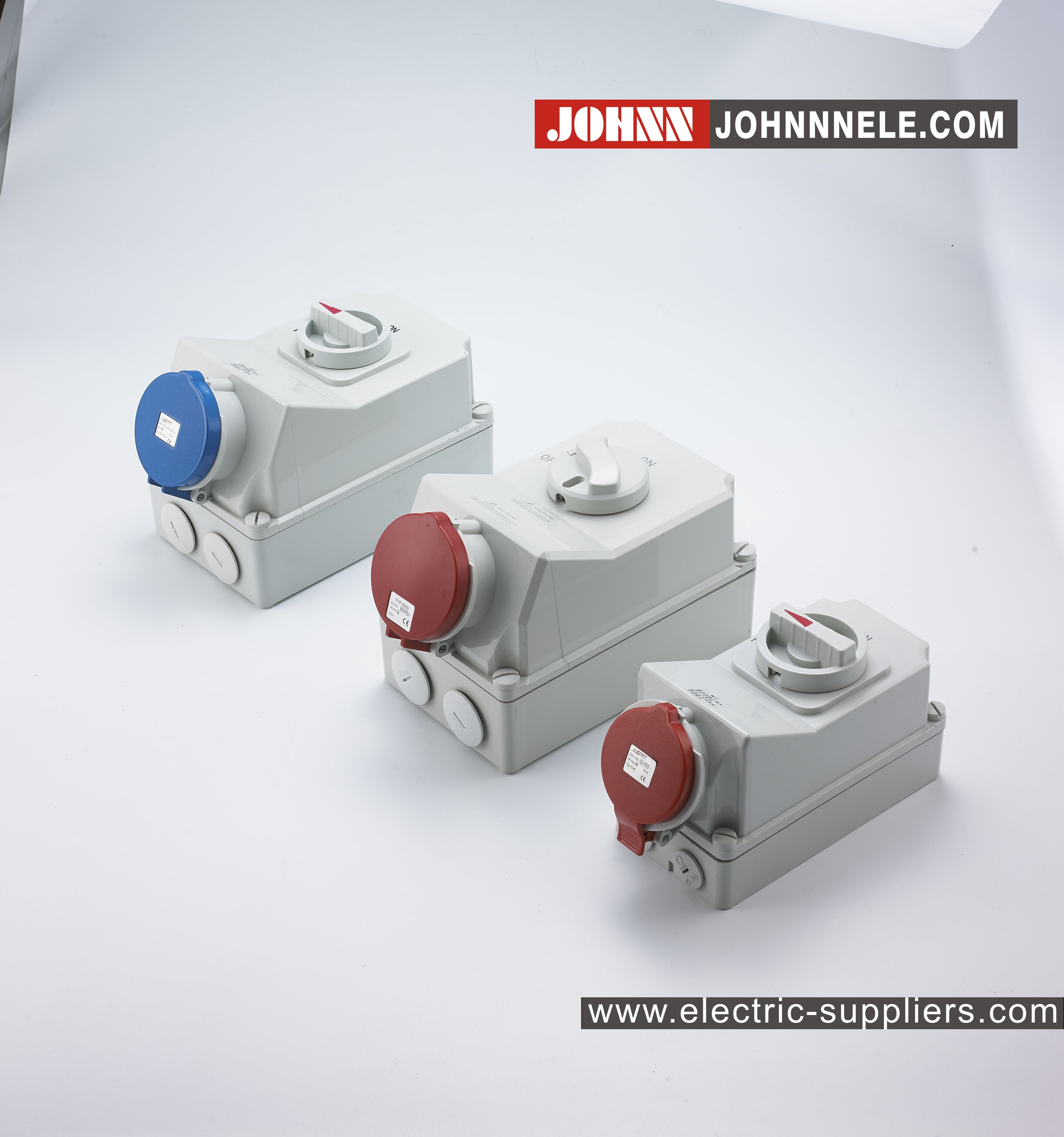

------ Picture of Electrical Industrial Socket ------

----Inspection Equipment----

----Company Information----
As far the company established,we put our whole heart and soul into designing and producing new products meeting the global users,demands."passion,Enthusiasm,Innovation and Devotion"is our corporate,"Spare no effort for pursuit of perfection"is our business philosophy.
Quality is our only faith.During this 12 years,we exported our products to all over the world.Much experience on exporting would help you to finish all kinds of working you required,competitive prices in your market.

---- Detail of Electrical Industrial Socket ----

1. Model Number: ZH5105

2. Color: Red

3. Material: Plastic

4. Poles: 4P

5. Protection Degree: IP44

6. Rated Current: 32A

7. Rated Voltage:400V

8. Copper Core: Tinned Copper

9. Grounding: Standard Grounding

10. Conductor cross sectional area: 4-6mm²

11. Feature: Safe / Waterproof / Durable

12. Certification: Rohs / CE / CB

------ Parameters of Industrial Connector ------

Current	Poles	110V 50a.60Hz	230V 50a.60Hz	400V 50a.60Hz	500V 50a.60Hz	>50-500V 100-300Hz	>50-500V a.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P 6h 9h 9h	3P 4P 5P 9h 6h 6h	3P 4P 5P 7h 7h 7h	3P 4P 5P 10h 10h 10h	3P 4P 5P 2h 2h 2h	PCS/BOX	G/PC
32A	3	ZH5743	ZH5696					1	1100
	4	ZH5460	ZH5104	ZH5105	ZH5106			1	1145
	5	ZH5462	ZH5107	ZH5108				1	1200

Current	Poles	a (mm)	b (mm)	c (mm)	d (mm)	e (mm)	f (mm)	g	h	M	m*
32A	3	225	118	146	208	101	6.3	8	264	2*25	25/32
	4	225	118	146	208	101	6.3	8	264	2*25	25/32
	5	225	118	146	208	101	6.3	8	264	2*25	25/32
Conductor cross-sectional area (mm²) Min To Max 4-6

Line with the German industrial standard DIN VDE 0623, the European / International standard EN / IEC 60309-2.

------ Shipping&Payment ------

1. Delivery Time: Within 25 days after receipt deposit.

2. Delivery Methods: By Sea / By Air / By Express ( DHL, FEDEX, TNT,UPS and etc ).

3. Payment: L/C / T/T / BL / Western Union / MoneyGram.

FAQ

Q-1. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q-2. Are you original Factory?
A: Yes, we have our own factory with many storage.
Q-3. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
