IP44 4p 32A Slopping Panel Mounted Socket for Industrial

Name: IP44 4p 32A Slopping Panel Mounted Socket for Industrial
Brand: all-electronics-online.com
SKU: 806618575
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZH1496
Rated Current:	32A
Grounding:	Standard Grounding
Color:	Red
Material:	Plastic
Protection Degree:	IP44
Poles:	4p
Copper Core:	Tinned Copper
Feature:	Safe / Waterproof / Durable
Delivery Time:	Within 25 Days After Rec
Delivery Methods:	by Sea / by Air / by
Standard:	Swiss Standard
Certification:	RoHS,Ce,CB,ISO9001
Shape:	EP
Nominal Voltage:	400V
Brand:	Johnn

Product Description

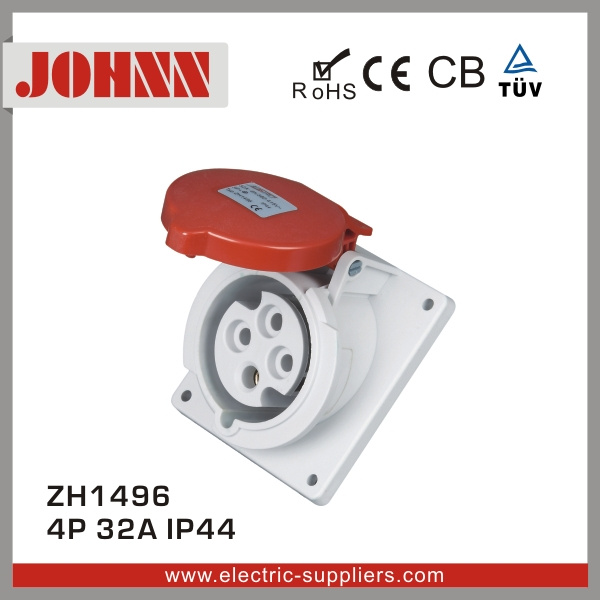

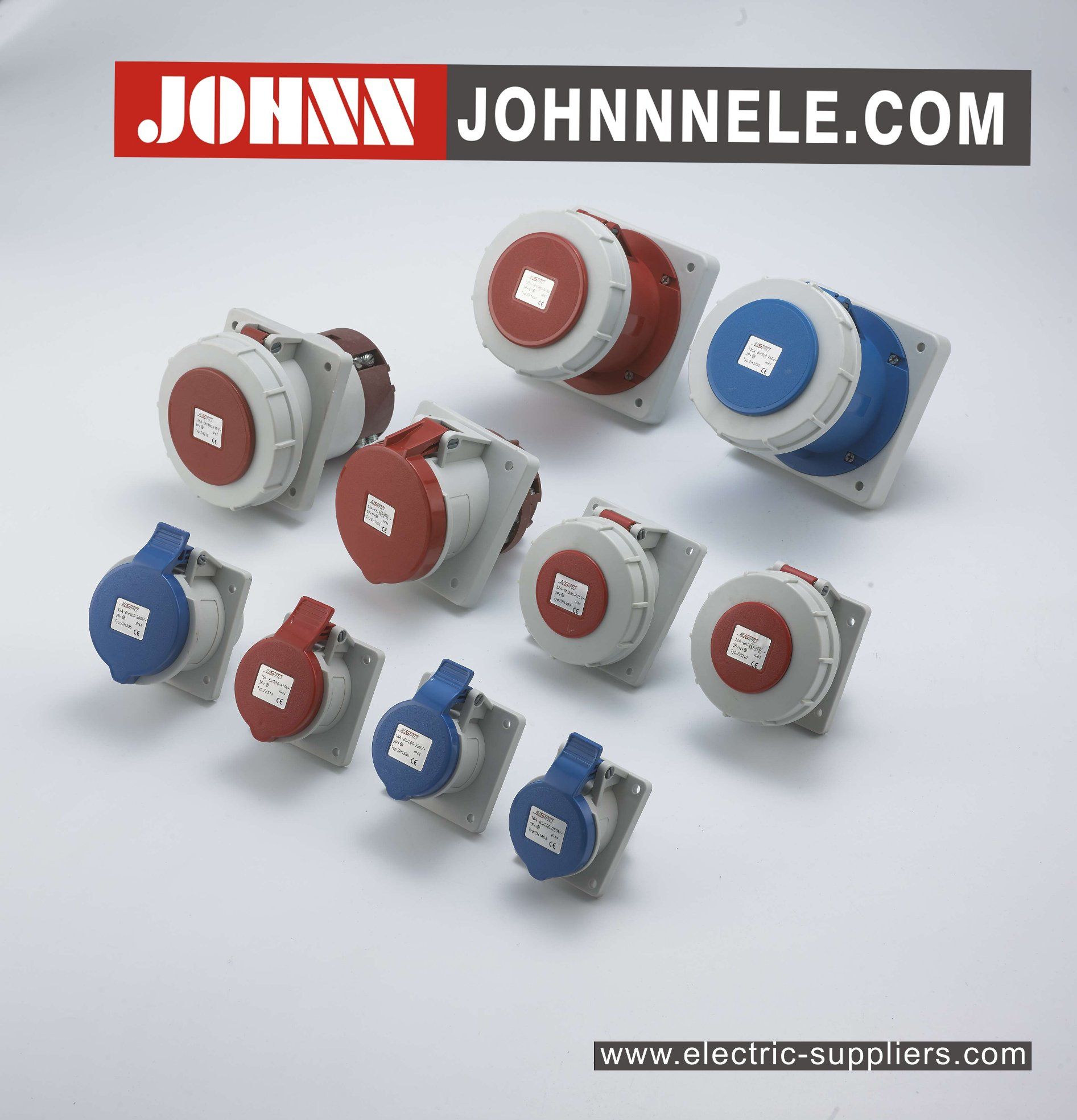

------ Picture of Electrical Industrial Socket ------

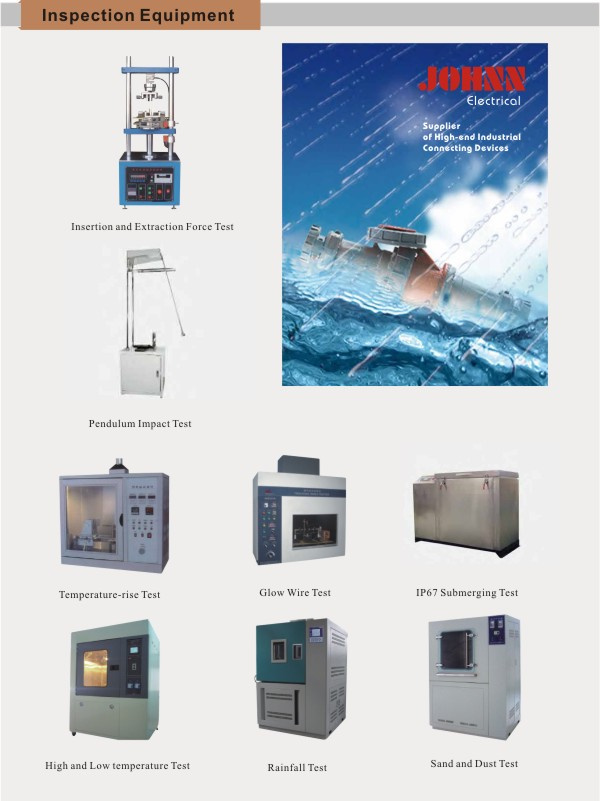

----Inspection Equipment----

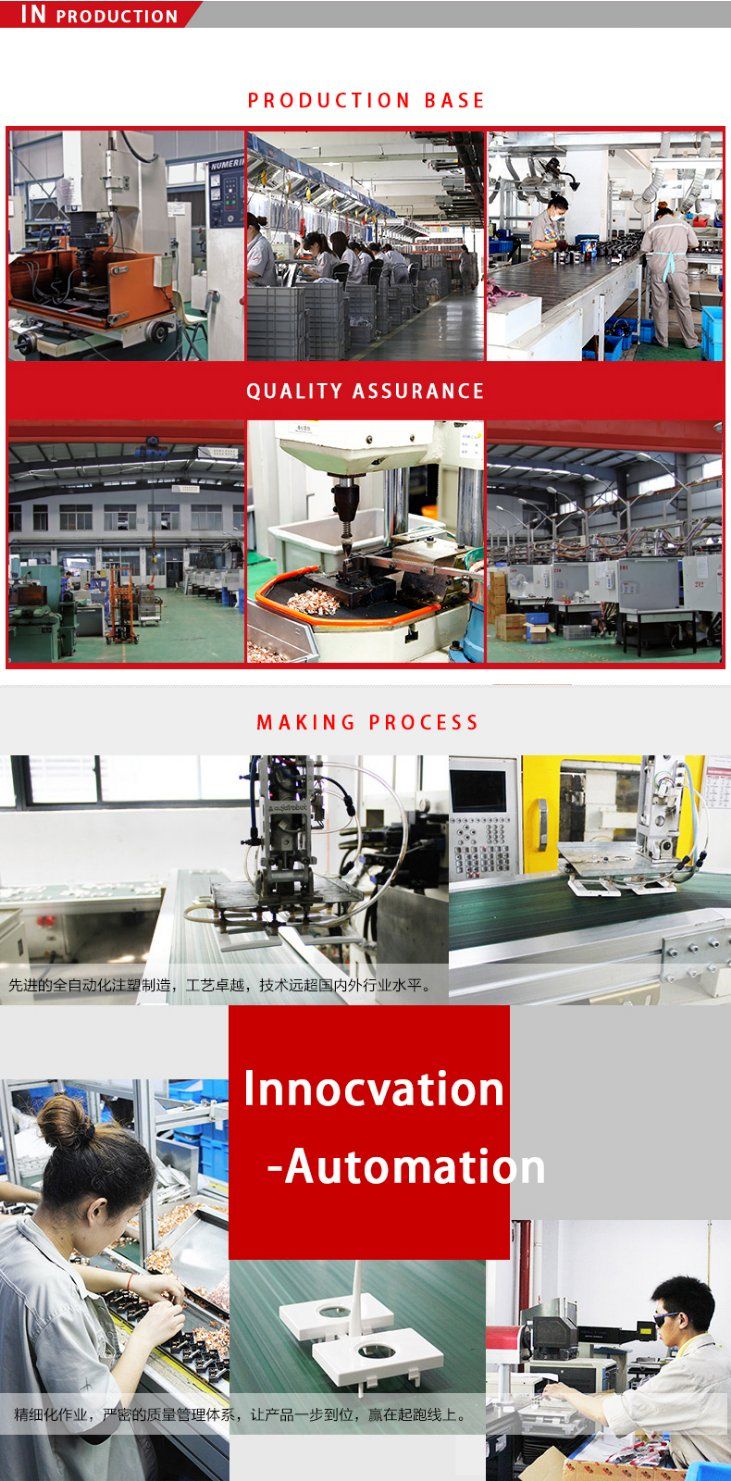

----Company Information----
As far the company established,we put our whole heart and soul into designing and producing new products meeting the global users,demands."passion,Enthusiasm,Innovation and Devotion"is our corporate,"Spare no effort for pursuit of perfection"is our business philosophy.
Quality is our only faith.During this 12 years,we exported our products to all over the world.Much experience on exporting would help you to finish all kinds of working you required,competitive prices in your market.

---- Detail of Electrical Industrial Socket ----

1. Model Number: ZH1496

2. Color: Red

3. Material: Plastic

4. Poles: 4P

5. Protection Degree: IP44

6. Rated Current: 32A

7. Rated Voltage:400V

8. Copper Core: Tinned Copper

9. Grounding: Standard Grounding

10. Conductor cross sectional area: 4-6mm²

11. Feature: Safe / Waterproof / Durable

12. Certification: Rohs / CE / CB

------ Parameters of Industrial Connector ------

Current	Poles	110V	230V	400V	500V	>50-500V	>50-500V	Package Unit	Weight
		50a.60Hz	50a.60Hz	50a.60Hz	50a.60Hz	100-300Hz	a.300-500Hz	Package Unit	Weight
		3P 4P 5P	3P 4P 5P	3P 4P 5P	3P 4P 5P	3P 4P 5P	3P 4P 5P	PCS/BOX	G/PC
		4h 4h 4h	6h 9h 9h	9h 6h 6h	7h 7h 7h	10h 10h 10h	2h 2h 2h	PCS/BOX	G/PC
32A	3	ZH1491	ZH1492	ZH1493		ZH3201	ZH3202	10	236
	4	ZH1494	ZH1495	ZH1496	ZH1497	ZH1489	ZH1487	10	250
	5	ZH1498	ZH1499	ZH1500	ZH3191	ZH3192	ZH3193	10	288

Current	Poles	a	b	c	d	e	f	g.	g.1	h	k	l	l1	α
32A	3	100	92	62	85	77	5.3	8	2	107	51	73	85	20°
	4	100	92	62	85	77	5.3	8	2	107	51	73	85	20°
	5	100	92	62	85	77	5.3	8	2	112	52	73	86	20°
Conductor cross-sectional area (mm²) Min To Max 4-6

Line with the German industrial standard DIN VDE 0623, the European / International standard EN / IEC 60309-2.

------ Packaging ------

1. Model Number: ZH1496

2. PCS/BOX: 10PCS

3. PCS/CTN:60PCS

4. Package Size: 58*42.5*37CM

5. Weight:18/16KGS

------ Shipping&Payment ------

1. Delivery Time: Within 25 days after receipt deposit.

2. Delivery Methods: By Sea / By Air / By Express ( DHL, FEDEX, TNT,UPS and etc ).

3. Payment: L/C / T/T / BL / Western Union / MoneyGram.

FAQ

Q-1. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q-2. Are you original Factory?
A: Yes, we have our own factory with many storage.
Q-3. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
