| Prod Model: |
KA-S63A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| Samples Delivery Time: |
Within 2 Days |
| Bulk Order Delivery Time: |
Within 25 Days |
| Usage: |
All Kinds of Lamps |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse, Garage, Toilets etc. |
Product Description
KA-S63A IP44 Wall Surface Mount Outdoor Light Sensor Switch specifications:1) Power source: 100-130V/AC; 220-240V/AC
2) Power frequency: 50/60Hz
3) Rated load: 800W Max. Tungsten(100-130V/AC)
150W Max. Fluorescent(100-130V/AC)
1200W Max. Tungsten(220-240V/AC)
300W Max. Fluorescent(220-240V/AC)
4) Light-control: <3LUX~daylight (adjustable)
5) Time setting: Min: 10sec Max: 7min± 1min (adjustable)
6) Detection angle: 180° /200°
7) Detection range: 12m Max(<24° C)
8) Working temperature: -10° C~+40° C
9) Detection motion speed: 0.6~1.5m/s
10) Working humidity: <93%RH
11) Installation height: 0.5m~3.5m
12) Power consumption: 0.45W(static 0.1W)
KA-S63A features:1) Detection field: Detection range can be adjusted according to consumer's desire, but the moving orientation in the field has great relation with the sensitivity;
2) Can identify day and night automatically: Its working light-control can be adjusted, when you turn it to daylight, it can work all day and night. If you turn it to night, it can only work in the circumstance less than 10LUX.
3) Time setting is added continually: When it receives the second induction signal after the first induction, it will recompute time from the second induction.
4) Time setting is adjustable: The working time setting can be adjusted according to the customer's desire, the minimum time is 10sec, the maximum is 7min± 1min;
KA-S63A introduction:This sensor adopts high sensitivity detector, IC and SMD technology; It utilizes the infrared energy from human body as its control signal source; When one enters the detection field, it can start the controlled load at once; It can identify day and night automatically; And it gathers automatism, convenience, safety, energy-saving and practicality.

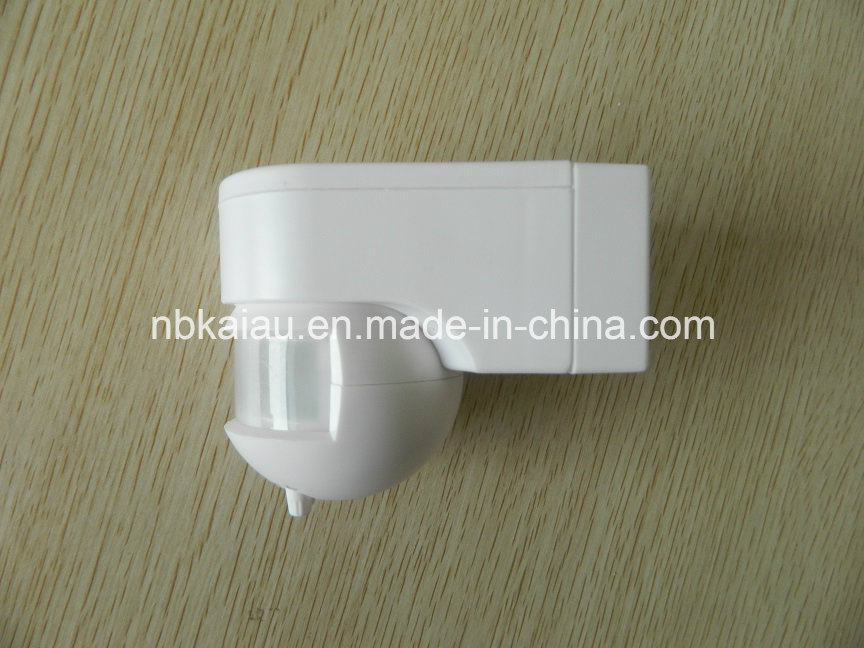

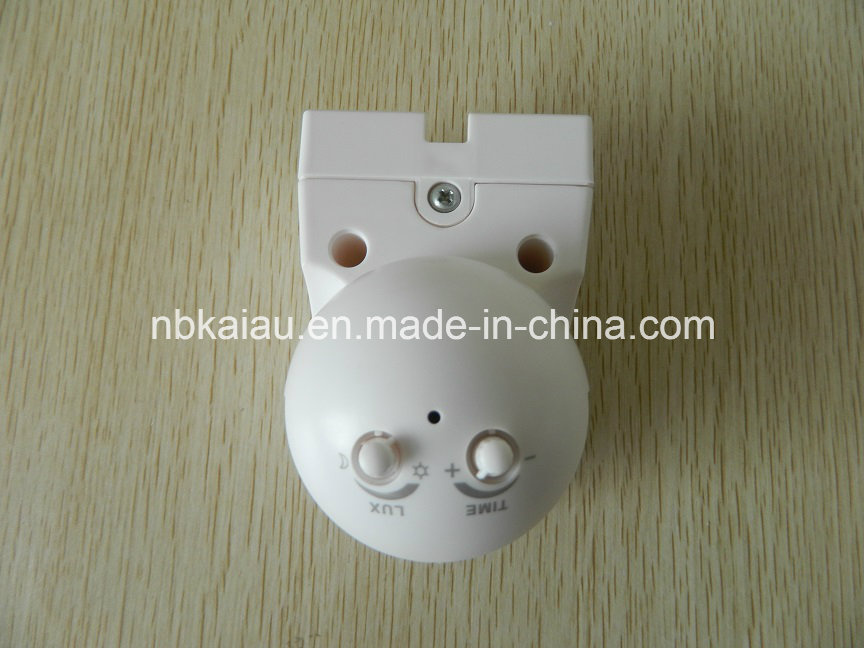

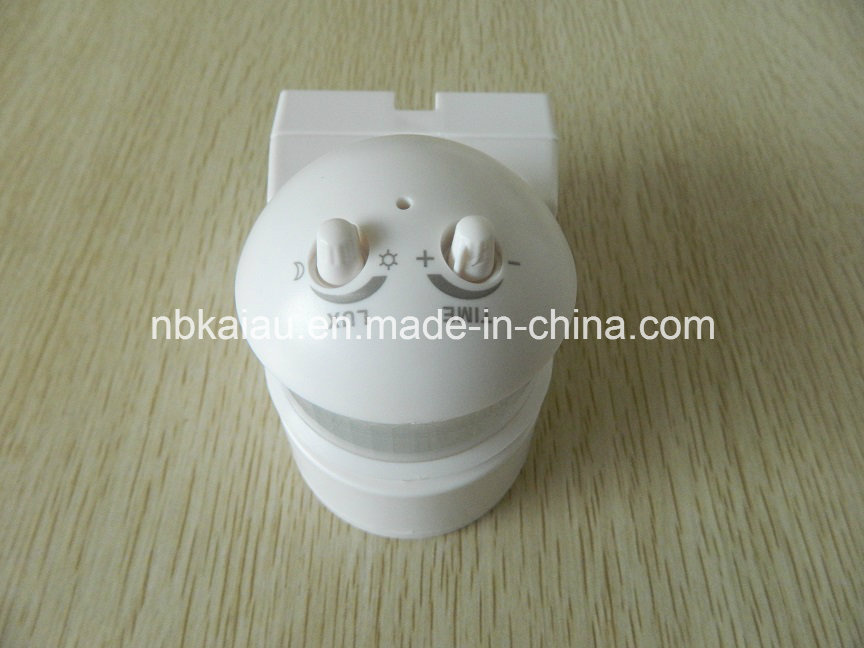

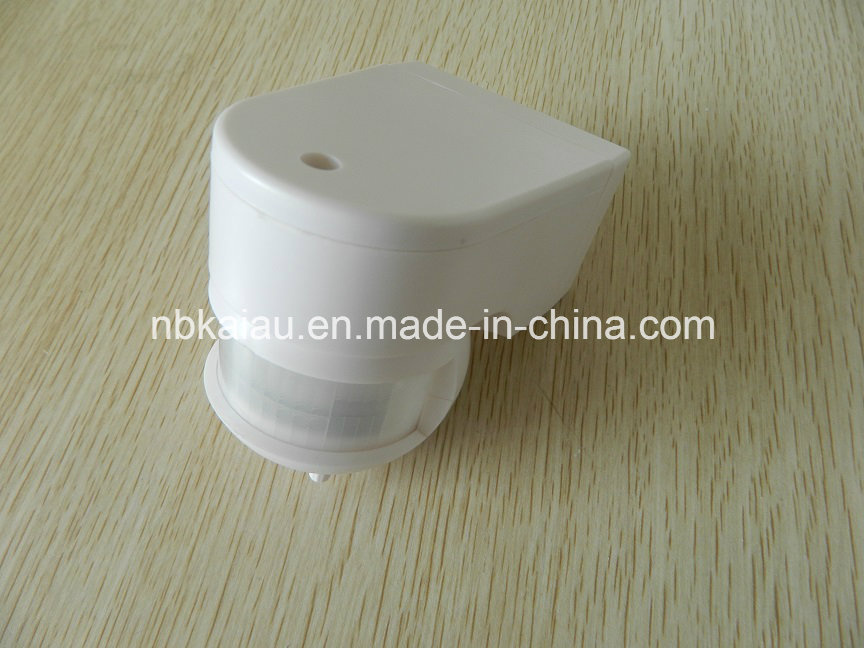

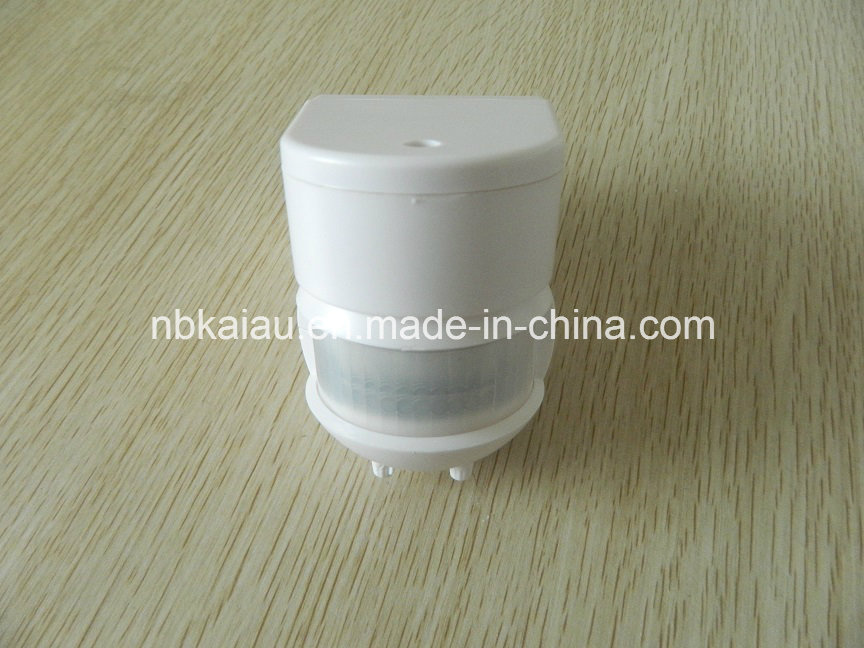

KA-S63A Actual Photos:
