| Prod Model: |
Top Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Communicate Interface: |
RS232, Snmp Card(Optional) |
| Altitude: |
< 1500m |
| Color: |
White |
| Nominal Frequency: |
Nominal Frequency |
| Nominal Voltage: |
220/230/240VAC |
| Cooling System: |
Option: Fans,Heat Exchanger, Air Conditioner |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

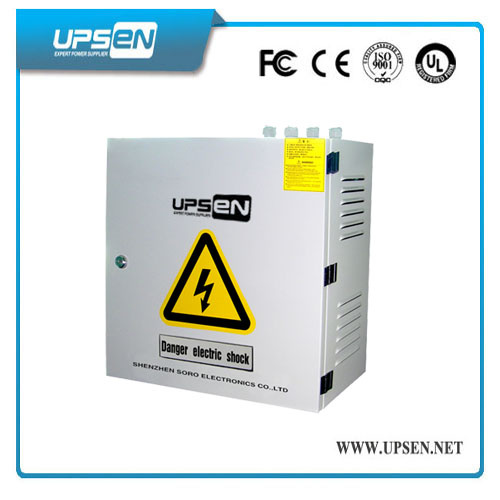

IP55 available outdoor ups with pure sine wave
Model: Outdoor Online UPS Top Star Series 1K-100Kva (1ph in / 1ph out) (3ph in / 1ph out) (3ph in / 3ph out)
Outdoor UPS Quick View
1: Outdoor UPS with Single Phase 220Vac 230Vac 240Vac or Three Phase 380Vac 400Vac 415Vac Input and Output
2: Outdoor UPS with Pure Sine Wave Output and Double Conversion tech
3. Outdoor UPS Equiped Air Conditioned Cabinet to Put Batteries
4: Outdoor UPS with IP55 Protection Level
5. Outdoor UPS can be used in bed enviroment like high temperature (+50 ° C) / low temperature (-15 ° C), severe dust, moisture, rain, mist erosion situation etc.
Key Features
1:UPSEN Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave 2:AC power supply for outside communications / network equipment.
3:IP55, with isolation inverter.
4:With pure sine wave output and battery room inside.
5:Protections: against short-circuit, overload, battery reverse polarity, low-voltage, and over-voltage protection, etc
6:with overload automatic recovery function
7:Optional: EPO / SNMP / Relais I/O Card / GPRS Card / Environmental Card / Input Isolation Transformer
Applications
UPSEN outdoor UPS is mainly used in the corner of the city, traffic light,remote roads, mountains, bad environment,etc.
Technical Specification
| Top Star Series |
Model | |
T1K |
T2K |
T3K |
T6K |
T10K |
Capacity |
Capacity |
1KVA/700W |
2KVA/1400W |
3KVA/2100W |
6KVA/4200W |
1000KVA/7000W |
Input |
Nominal voltage |
220/230/240VAC |
Nominal frequency |
50/60HZ |
Voltage Range |
115~295VAC(± 3VAC) |
176~297VAC(± 3VAC) |
Frequency Range |
50HZ(46~54HZ), 60H(56HZ~64HZ) |
Power Factor |
0.98 |
Output |
Voltage Precision |
220/230/240X (1± 2%)VAC |
Frequency Precision |
50/60HZ± 0.05Hz |
Power Factor |
0.7 |
THDI |
< 3% (Linear load) < 6% (Non-linear load) |
Overload Capability |
Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. |
Crest Factor |
3:1 |
Transfer Time |
0ms(AC to DC ) |
Battery |
DC Voltage |
36VDC |
96VDC |
96VDC |
240VDC |
240VDC |
Charge Current |
4A/8A(optional) |
4.2A |
4.2A |
Internal Battery Capacity |
(38/65/80/100AH/120AH)optional |
Panel Display |
LED/LCD Digital Display |
Display input and output voltage, frequency, battery voltage, battery capacity, load percentage |
Communications |
Communicate Interface |
RS232, SNMP card(optional) |
Enviroment |
Temperature |
0~40° C |
Humidity |
0~95% Non-condensing |
Storage Temperature |
-25° C~55° C |
Altitude |
< 1500m |
Acoustic Noise ( within 1 meter) |
< 50dB |
Physical |
Weight(KG) |
85 |
125 |
125 |
150 |
155 |
Dimensions (LxWxH)mm |
900×640×900 |
900*640*1185 |
900*640*1185 |
940*940*1770 |
940*940*1770 |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

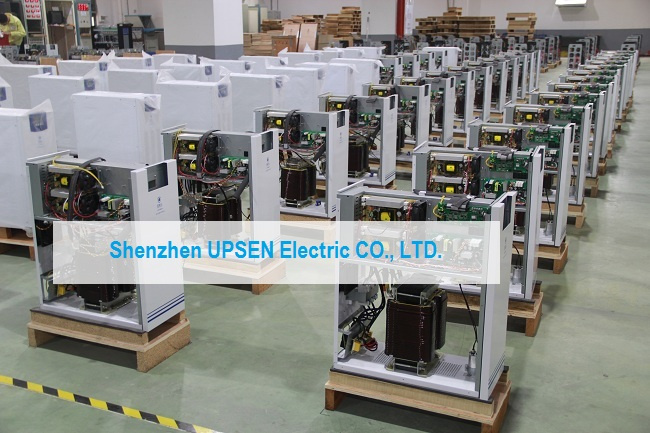

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
