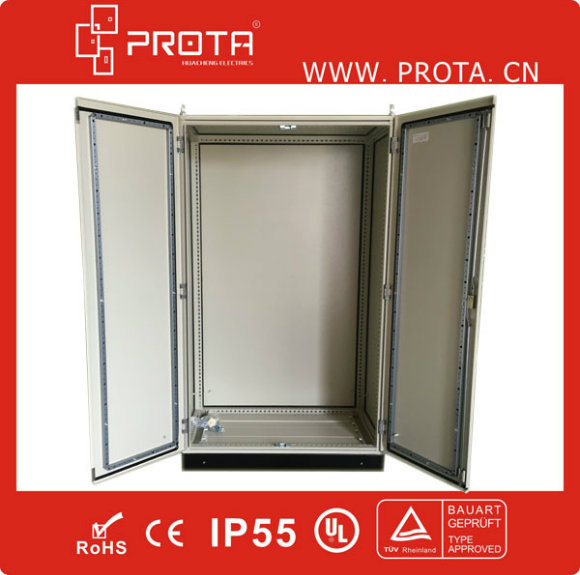

IP55 Floor Standing Cabinet Electrical Enclosure with Two Doors
| Price: |
US $ 200-600/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
PR9D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cold-Rolled Sheet Steel |
| Color: |
Ral7032 & Ral7035 |
| Surface Finish: |
Ral7032/Ral7035/Customize |
| Thickness: |
2.0mm |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Certification: |
RoHS,IP55 |
| Brand: |
Prota.OEM |
Product Description
IP55 Floor Standing Cabinet Electrical Enclosure with two doors1,Surface:the whole cabinet is phosphate coated and the exterior is expoxy thermosetting textured power-coated.
2,Material and thickness:cold-rolled sheet steel
Body: 1.5mm
Galvanized mounting plate: 2.5mm
Back panel and side panels: 1.5mm
Front door: 2.0mm
Craftsmanship Feature:
1,Special tube of the door strengthening system can be fixed to the door with screws.
2,The main structure is weleded with overall section bars,which ensures not only the high intensity,but also the protection level of IP55.
3,Double doors in both the left and the right side.Standardized modulated design is very convenient for utilization and installation.
4,The rectangle frame not only intensifies the front door, but also could be used to install the electronic components.
5,The crossing-lock locks the front door with three points, by up, middle and down.
Selection Table:| Model No. | H(mm) | W(mm) | D(mm) |
| PR9D 128/4 | 1200 | 800 | 400 |
| PR9D 128/8 | 1200 | 800 | 800 |
| PR9D 168/4 | 1600 | 800 | 400 |
| PR9D 168/5 | 1600 | 800 | 500 |
| PR9D 168/6 | 1600 | 800 | 600 |
| PR9D 188/4 | 1800 | 800 | 400 |
| PR9D 188/5 | 1800 | 800 | 500 |
| PR9D 188/6 | 1800 | 800 | 600 |
| PR9D 188/8 | 1800 | 800 | 800 |
| PR9D 1810/4 | 1800 | 1000 | 400 |
| PR9D 1810/5 | 1800 | 1000 | 500 |
| PR9D 1810/6 | 1800 | 1000 | 600 |
| PR9D 1810/8 | 1800 | 1000 | 800 |
| PR9D 1812/4 | 1800 | 1200 | 400 |
| PR9D 1812/5 | 1800 | 1200 | 500 |
| PR9D 1812/6 | 1800 | 1200 | 600 |
| PR9D 1812/8 | 1800 | 1200 | 800 |
| PR9D 208/4 | 2000 | 800 | 400 |
| PR9D 208/5 | 2000 | 800 | 500 |
| PR9D 208/6 | 2000 | 800 | 600 |
| PR9D 208/8 | 2000 | 800 | 800 |
| PR9D 2010/4 | 2000 | 1000 | 400 |
| PR9D 2010/5 | 2000 | 1000 | 500 |
| PR9D 2010/6 | 2000 | 1000 | 600 |
| PRD9D 2010/8 | 2000 | 1000 | 800 |
Other sizes avaliable on request .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, please contact with us.Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
