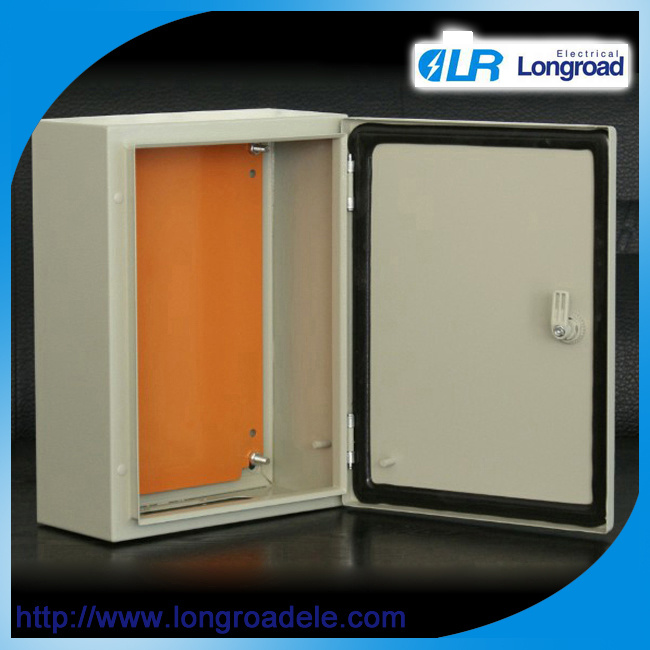

IP56 Metal Waterproof Panel Board

Name: IP56 Metal Waterproof Panel Board
Brand: all-electronics-online.com
SKU: 776223785
Availability: InStock
Rating: 4.8 (29 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	St
Rated Voltage(V):	AC 660V
Circuit:	AC 50/60 Hz
Protection Rate:	IP56
Type:	Power
Structure:	Fixed Board

Product Description

Application:

The distribution box is suitable for circuit of AC 50/60 Hz, rated voltage up to AC 660V, distributing control of modern building such as large office mansion, hotel, commerce department, industrial and mining enterprises and so on.

Specification:
Single Door

External dimension (mm)			mounting plates				19° RAC swing frame	Internal doors
Height	Width	Depth	metal			mounting plate adjustable supports
Height	Width	Depth	metal	insul.	pert.	mounting plate adjustable supports
250	200	150
300	250	150
300	250	200
300	300	150
300	300	200
400	300	150
400	300	200
400	400	200
400	600	250
400	600	300
500	400	150
500	400	200
500	400	250
500	500	250
600	400	150
600	400	200
600	400	250
600	500	150
600	500	200
600	500	250
600	600	250
600	600	300
700	500	200
700	500	250
800	600	200
800	600	250
800	600	300
800	800	200
800	800	300
1000	600	250
1000	600	300
1000	800	250
1000	800	300
1000	1000	300
1200	800	300
1200	1000	300

Double Doors

External dimension (mm)			mounting plates	19° RAC swing frame	Internal doors
Height	Width	Depth
1000	1000	300
1200	800	300
1200	1000	300
1200	1200	400
1400	800	400
1600	800	300
1600	800	400
1600	1000	200
1600	1000	400
1600	1000	400
1300	1200	300
1600	1200	400
1800	800	400
1800	1200	400
1800	1600	400
2000	800	400
2000	1000	400
2000	1200	400

Long Road Electric Co. Ltd founded in 2010, is located in the largest manufacturing base of low-voltage electric equipment of Wenzhou China, which is called "the Electric Device Metropolis of China". Long Road Electric specialized in the SMC, DMC and PLASTIC materials energy meter boxes Manufacturing, International trade and service.

Long Road Electric Co, Ltd regards quality of products as life, Longroad Electric Co., Ltd has been granted ISO9001 management system certifications. The comprehensive product line has more than 100 models which have been approved by TUV, CE, CB, SGS, RoHS, SASO. The products sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa, Nigeria etc...More than 70 countries and regions.

Long Road Electric Co. Ltd is always striving hard to provide the best services and competitve pricing to all customers.
