IP64 Waterproof Roller Arm Type Limit Switch

Prod Model:	TZ-8104

Product Description

Strong structure made of zinc metal alloy and plastic, easy to contact line;
Small size, water and oil resistant;
Double way switch, double spring inner switch;
Variety of levers;
Widely used in Mechanical equipment, automatic machine, and instrument, electro motion tool etc.

Specification


Item		Data
Rating load		5A/250VAC
Operating speed		5mm-50cm/s
Operating frequency	Mechanical	120times/min
	Electrical	30times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		25MΩ(intial value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000above
	Mechanical	1,000,000above
Pertection degree		IP65
Operating temperature		-20'C~60'C
Operating humidity		≤ 85%

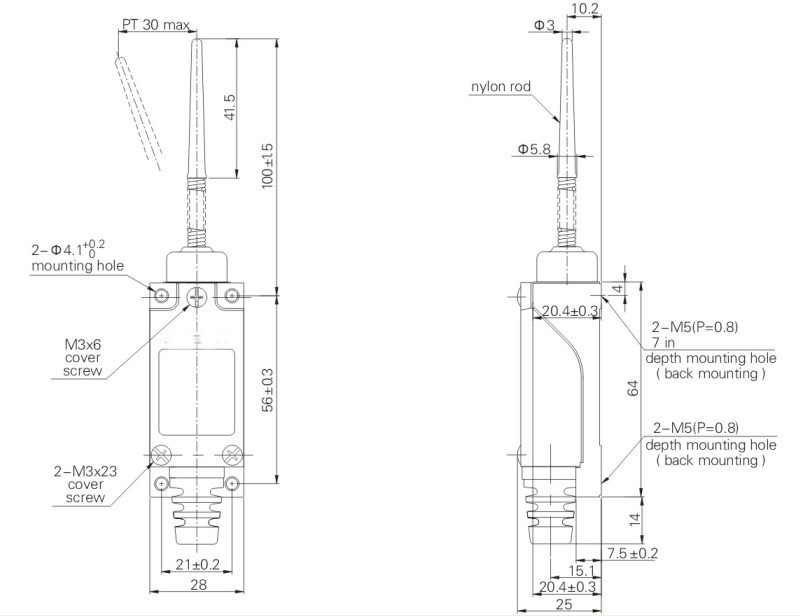

Dimensions/Operating Characteristics





OF max.	700g(6.68N)
RF min.	70g(0.69N)
PT max.	30°
OT min.	60°
MD max.	15°
TT	90°

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.


More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
