IP65 165kHz Ultrasonic Proximity Sensor Piezo

Name: IP65 165kHz Ultrasonic Proximity Sensor Piezo
Brand: all-electronics-online.com
SKU: 835396345
Availability: InStock
Rating: 4.5 (113 reviews)

Price:	US $ 16-21/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSW-P20165H16TR--W
Product Name:	IP65 165kHz Ultrasonic Proximity Sensor Piezo
Construction:	High-Frequency
Using Method:	Dual Use
Center Frequency:	165.0±5.0kHz
Bandwidth:	6.0kHz
Echo Sensitivity:	-68dB Min
Min.Parallel Resistance:	280Ω±30%
Price:	Cheap
Performance:	Good
RoHS:	Yes

Product Description

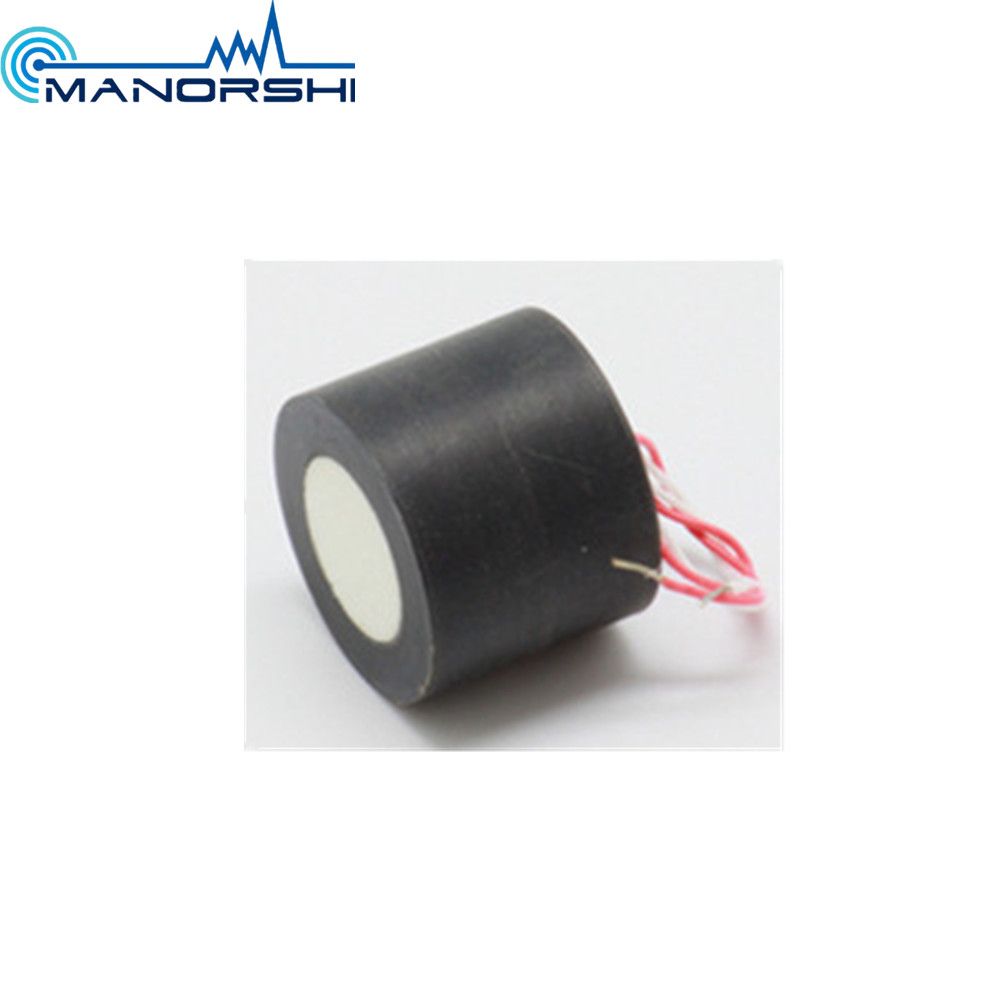

IP65 165khz ultrasonic proximity sensor piezo

Specification

Part Number	MSW-P20165H16TR--W
Construction	High-frequency
Using Method	Dual use
Center frequency	165.0±5.0KHz
Bandwidth	6.0Khz
Echo Sensitivity	-68dB min
Min.Parallel Resistance	280Ω±30%
Capacitance	850±20%pF
Typical Sensing Range	0.1~2.5m
Directivity deg	14°±2°(-6dB)
Max.Input Voltage	300Vp-p
Protection Class	IP65
Operating Temperature	-20-+80ºC
Storage Temperature	-35-+85ºC
Housing Material	Plastic

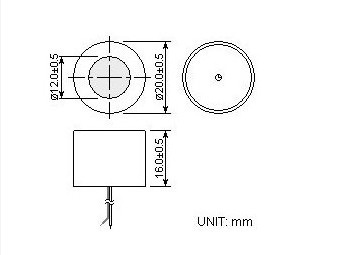

Dimension

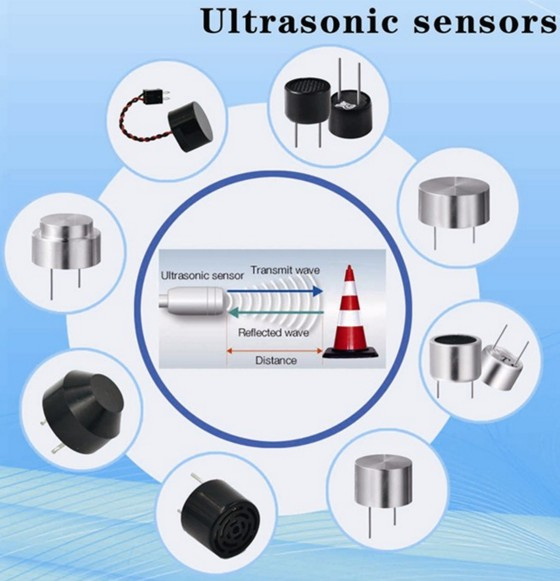

Application



Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
