IP65 1phase Input 3phase Output Frequency Inverter for Water Pump
| Price: |
US $ 80-260/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
S2100S |
| Voltage Range: |
170-240V or 330-440V |
| Frequency Range: |
0.1-400Hz |
| Control Method: |
V/F;Vector Control |
| Power Range: |
220V 0.75-3.7kw;380V 0.75-11kw |
| Pid: |
Built in |
| Protection: |
IP65 |
| Vibration: |
Max.0.5g |
| Cooling Mode: |
Forced Air Cooling |
| Output Frequency Accuracy: |
0.1Hz |
| Certificate: |
Ce;ISO9001 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Principle Of Work: |
AC-DC-AC |
| Function: |
Water Pump |
| Brand: |
Machtric |
Product Description

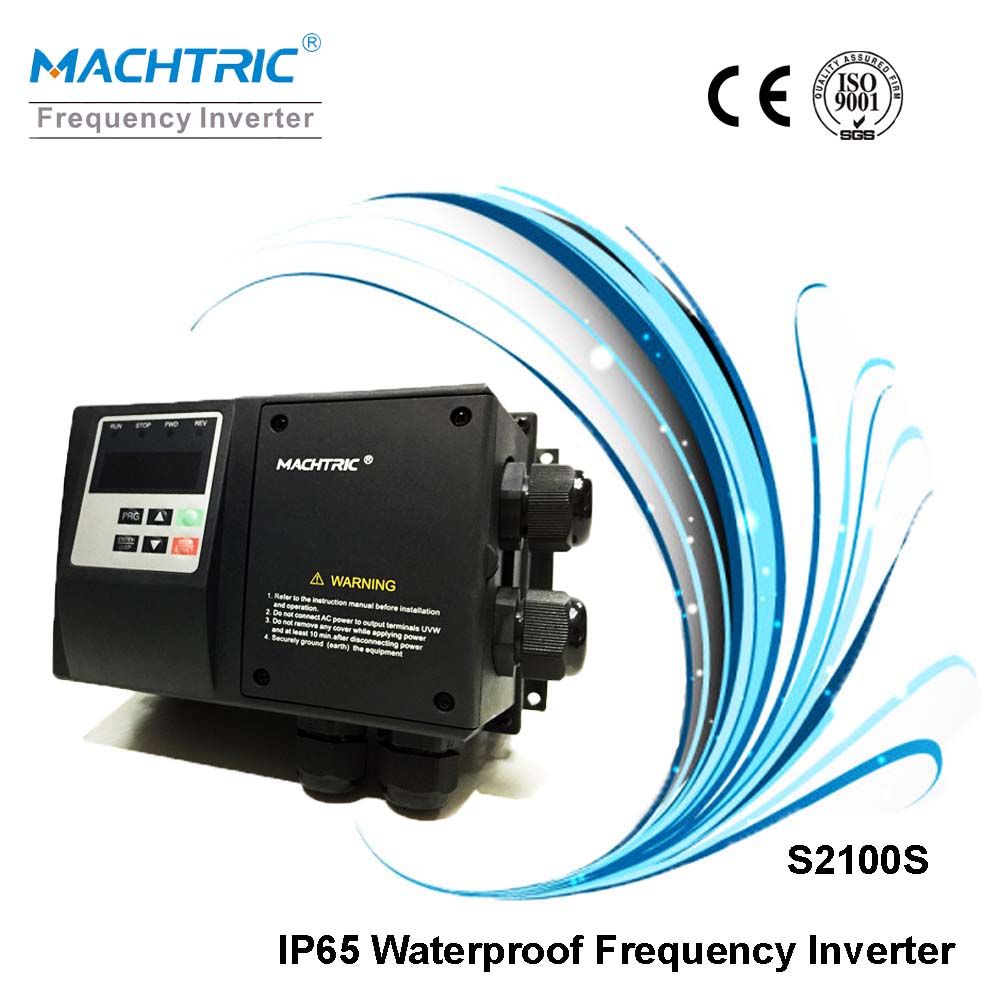

IP65 1phase Input 3phase Output Frequency Inverter For Water Pump
Product description
| Items | S2100S |
| Input | Rated voltage,Frequency | 1PH/3PH AC 220V 50/60Hz,3PH AC 380V 50/60 Hz |
| Voltage Range | 220V: 170V-240V, 380:330V-440V |
| Output | Voltage Range | 220V:0-220V;380V:0-380V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifunctional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifunctional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
Other functions | PID control | Built-in PID control
|
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency setting | Analog input:0-10v,4 to 20mA can be selected;
Digital input:input using the setting dial of the operation panel
or RS485 or UP/Down
Note:AVI terminals can be used to select and analog voltage input (0-10v)
and analog current input (4-20mA) through the switch J2. |
| Multi-speed | Four multifunction input terminals,15 section speed can be set. |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built-in 2 group of counters |
| Protection Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other protections | Output shortcircuit,over current,and parameter lock and so on. |
Environment | Ambient Temperature | -10°C to 40°C(non-freezing) |
| Ambient Humidity | Max. 95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
Structure | Cooling Mode | Forced air cooling (5.5kW or more) |
| Protective Structure | IP65 |

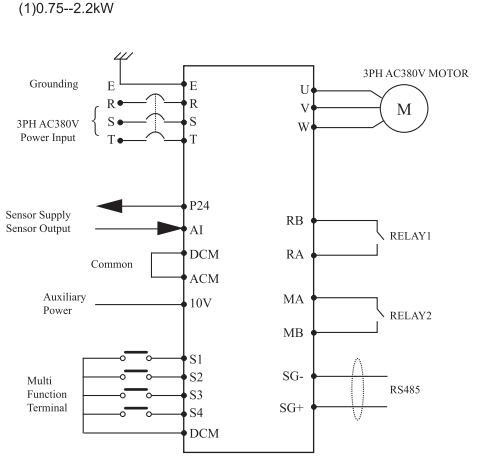

Inverter Diagram

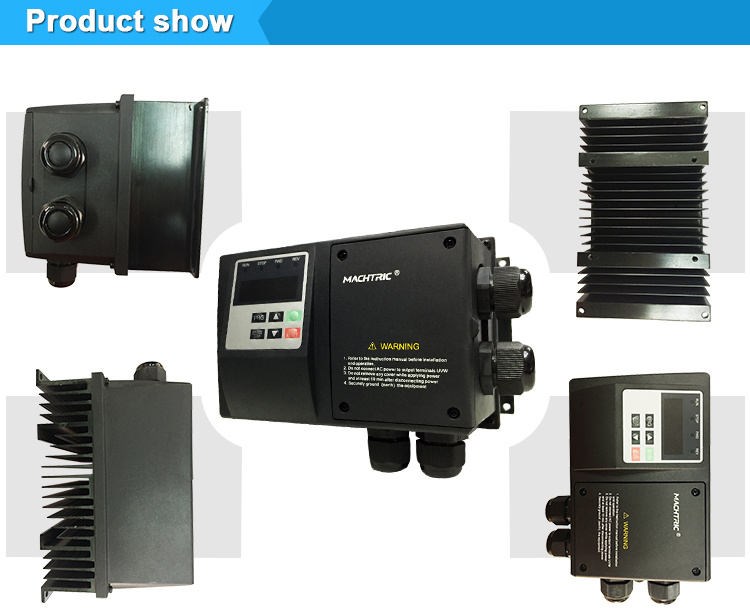

Product detail
