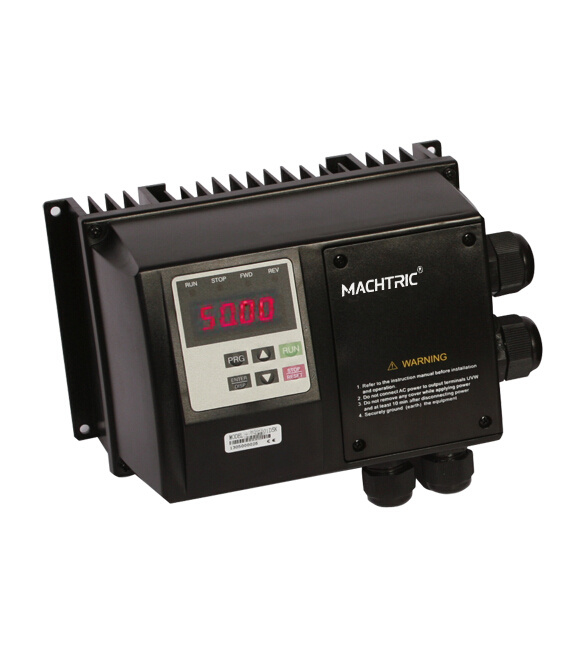

IP65 380V 3phase 0Hz to 400Hz Variable Frequency Drive
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S2100S |
| Color: |
Black |
| Applicable: |
Fan |
| Voltage: |
220V Frequency Inverter |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
IP65 Frequency Inverter Fo Fan |
| Brand: |
Machtric |
Product Description
hot selling IP65 220V 50Hz to 60Hz variable frequency inverter
Our main products as below:
S800E: Din rail mounted Mini size S2100S: IP65 V/F control
Z900E: Compact size vector contorl general used S2800E: General used vector control
S900GS: Compact size general used S3800E: Vector control with close loop
S2100E: Constant pressure water supply SPECIAL USED: CRANE INVERTER; AIR COMPRESSOR; SERVO MOTOR DRIVE.
Specification:
| Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
Model dimension:
| Model | Suitable Motor | Output Current | Assembly Dimension(mm) |
| W | H | D | A | B | b |
| S2100-2S0.75GS | 0.75KW | 5 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-2S1.5GS | 1.5KW | 7 |
| S2100-2S2.2GS | 2.2KW | 11 |
| S2100-4T0.75GS | 0.75KW | 2.7 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-4T1.5GS | 1.5KW | 4 |
| S2100-4T2.2GS | 2.2KW | 5 |
| S2100-4T3.7GS | 3.7KW | 8.6 | 235 | 154 | 179 | 125 | 221 | M4 |
| S2100-4T5.5GS | 5.5KW | 12.5 |
| S2100-4T7.5GS | 7.5KW | 17.5 |
| S2100-4T11GS | 11KW | 24 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge.
Q: What is your terms of payment ?
A: Payment is 100% T/T in advance for the first cooperate customer.
If you have another question, pls feel free to contact us.
