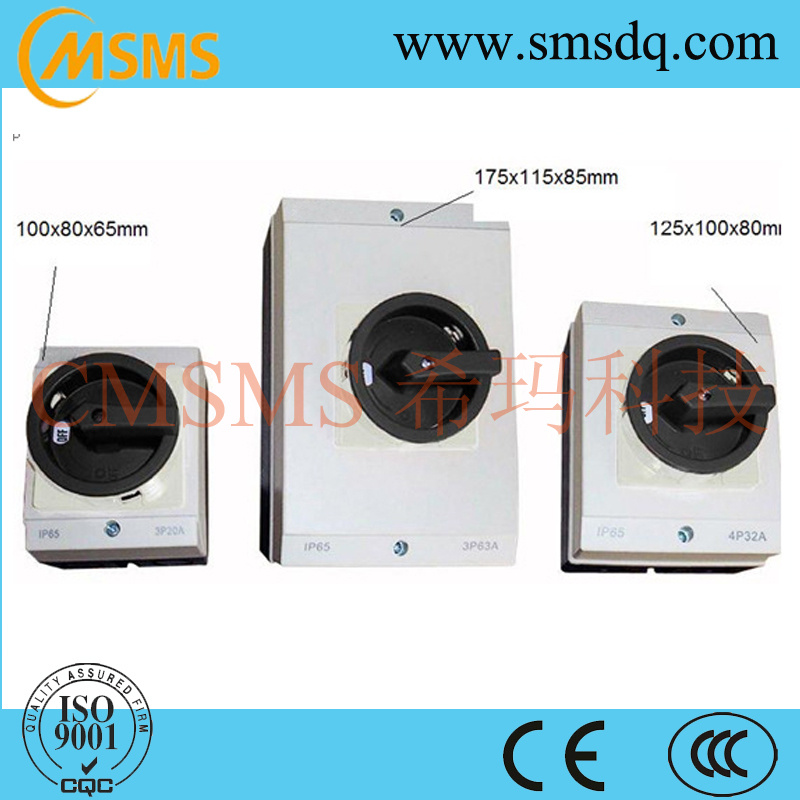

IP65 3p63A DC Range Solar Switches

Name: IP65 3p63A DC Range Solar Switches
Brand: all-electronics-online.com
SKU: 773187355
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3P63A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	High-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Double Ground
Series:	Single-Stage
Run:	Turn the Horizontal
Switching Mode:	Single Throw-in
Certification:	CE

Product Description

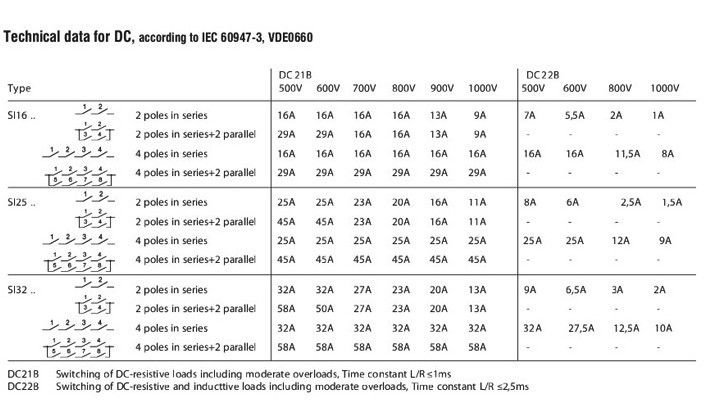

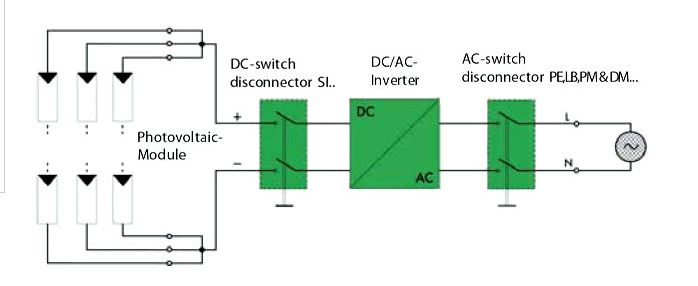

DC Range Solar PV Isolator Data Sheet
(S Certification , CB test report , Quality warranty ,Chubb Insurance)
All DC switches series we supply 5 years quality warranty compared other brands 2 years quality
warranty .meanwhile , we supply Chubb Insurance for back-top service .
Unique way of switching
The basis of the DC switches is formed by a double-bladed contact bridge that connects two terminal
clamps. The blade-shaped fixed contacts are clasped by the blades of the bridge. The switching takes place by turning the bridge with an insulated mandrel. The bridge and the contacts are located between two plastic discs, which together form the switch chamber.
Switching within 3ms
Springs are pre-tensioned when switching with the DC mechanism. At the end of the switch angle of 90º the built-up spring force is released in its entirely to the 2nd (inner) shaft of the switch. Because of this
construction a very high switch speed is realised which results in a very short power shut off time which is
essential for DC switching.
Switching without tension arc
The flame arc is broken off as quick as possible so that wear as a result of the flame arc is reduced to the
very minimum.

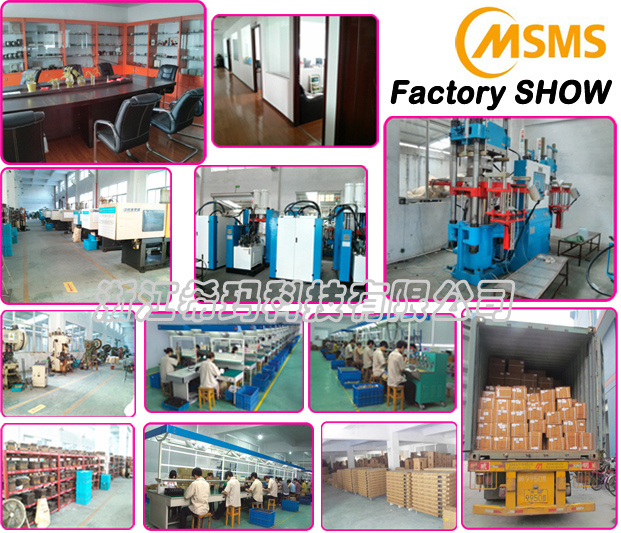

Zhejiang SMS Technology Co., Ltd is a professional manufacturer of solar mounting system, Electric connection & relative products. Our main products are Terminal block, Piercing connector, Connection box, DIN rail, Fan and Ventilate filter, etc. For passed ISO9000 many years, we always concentrate to manufactures of Electric connection and relative products, energetically explore potential markets worldwide. Mostly of our products are approved by CE, RoHS, CCC, UL, etc...And enter to international markets.

At the beginning we enter the electric connection industry, we keep our eye on produce High quality products and offer More competitive products to our customers.

We adopt advanced technologies and high quality material to offer more than 20 series products in electric distribution system, power control system and cable connection, etc...Including SKJ series terminal block, ST1 series spring connector, Insulation piercing connector, DIN rail, Fan & ventilate filter, electric metering box, multipurpose terminal block and relative accessories & tools.

Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

Zhejiang SMS technology Co., Ltd. Established more than 40 agents and service parters all round China and keep expanding international market. We accept OEM/ODM order from oversea customers. We believe our products and believe customers will chosen our products as their best choice in electric connection field.
