IP65 4mm Anti-High Pressure Type Inductive Proximity Sensor

Name: IP65 4mm Anti-High Pressure Type Inductive Proximity Sensor
Brand: all-electronics-online.com
SKU: 840388015
Availability: InStock
Rating: 5 (67 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLJ
Type:	Infrared Sensor Switch
Standard:	Standard
Certification:	CE
Wires:	2-Wires, 3-Wires,4-Wires

Product Description

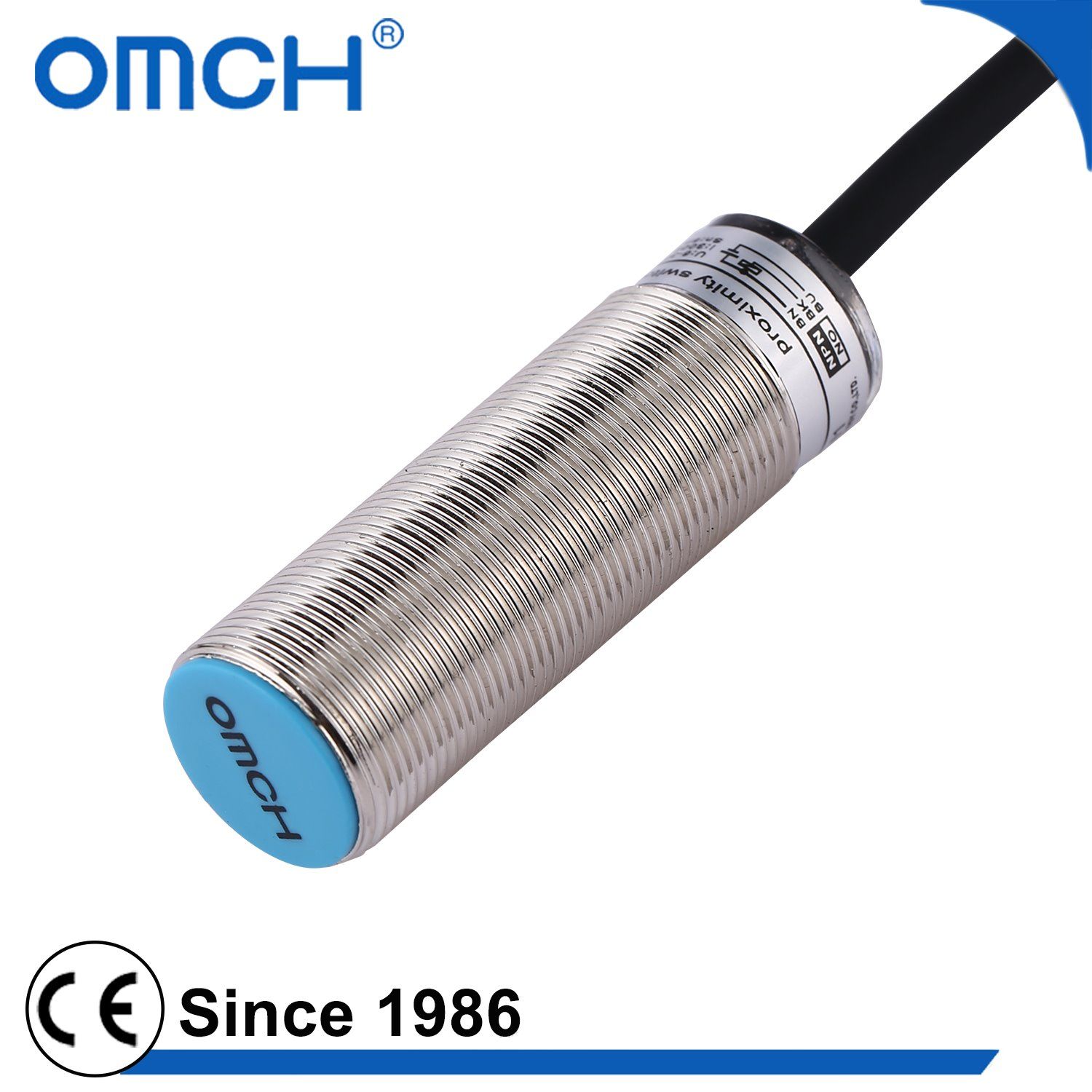

IP65 4mm Anti-high pressure type inductive proximity sensor

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature
We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Note: High pressure type product, the highest pressure is 0-600bap

Type Specification
We sincerely welcome agents from all over the world

Dimension				M18
Mounting way				Screen shield type
TYPE	DC TYPE	NPN	NO	YLJ18A3-5-Z/N1
			NC	YLJ18A3-5-Z/N2
			NO+NC	YLJ18A3-5-Z/N3
		PNP	NO	YLJ18A3-5-Z/P1
			NC	YLJ18A3-5-Z/P2
			NO+NC	YLJ18A3-5-Z/P3
		Two Wire	NO	YLJ18A3-5-Z/D1
			NC	YLJ18A3-5-Z/D2
	AC TYPE	Two Wire	NO	YLJ18A3-5-J/A1
			NC	YLJ18A3-5-J/A2
		3 wire	NO+NC	YLJ18A3-5-J/A3
Set distance				5 mm+/-10%
Standard detection object				0~4mm
Response frequency				Iron18181
Response frequency				DC:>=0.8kHz AC:50Hz

Delay distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	-30~+65C
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP67 ICE specification
material	Housing: stainless steel; Detection surface: ABS
