IP65 Anti High Pressure Type Sensor Proximity Sensors

Name: IP65 Anti High Pressure Type Sensor Proximity Sensors
Brand: all-electronics-online.com
SKU: 840390975
Availability: InStock
Rating: 5 (23 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLJ
Type:	Infrared Sensor Switch
Standard:	Standard
Certification:	CE
Wires:	2-Wires, 3-Wires,4-Wires

Product Description

IP65 Anti high pressure type sensor proximity sensors

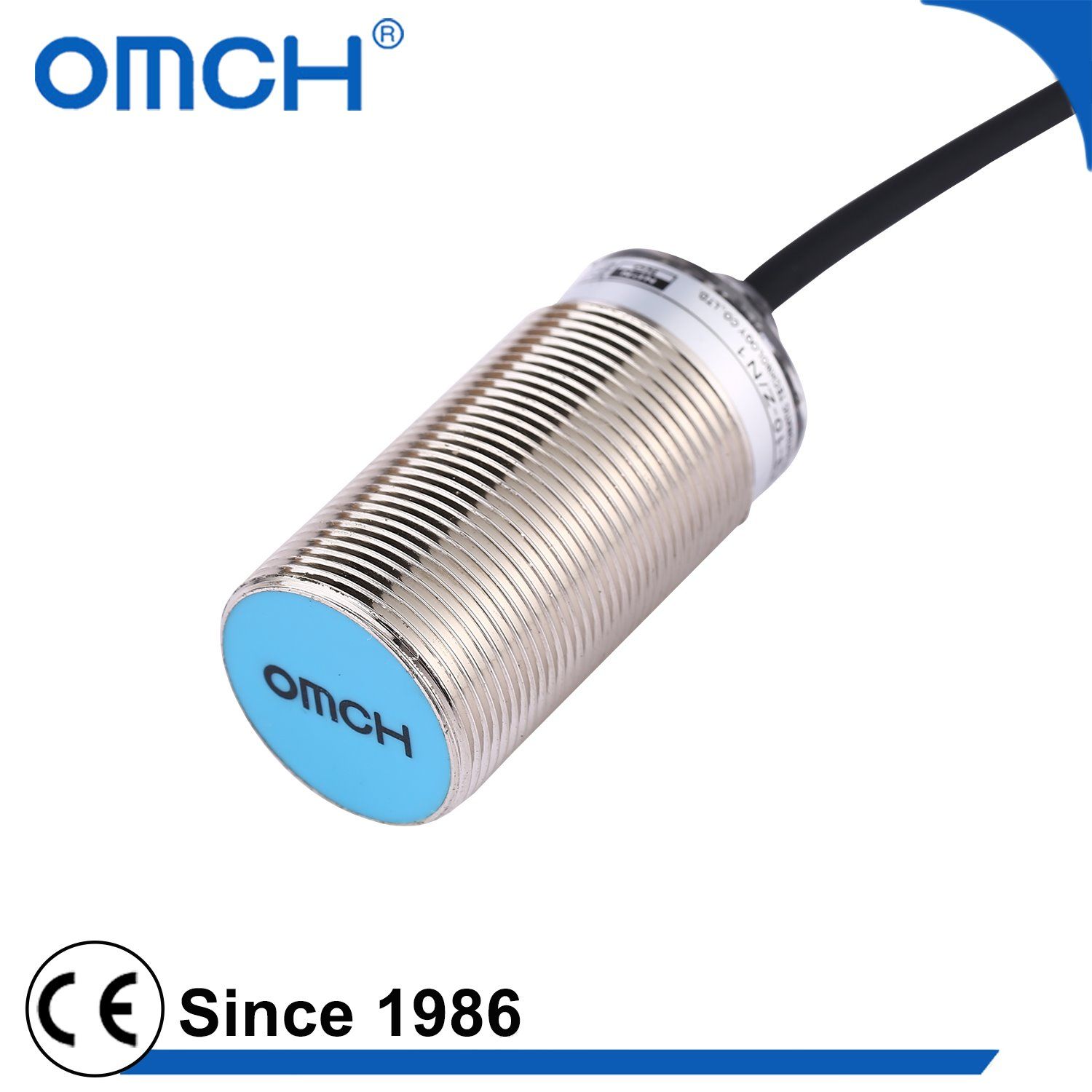

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Note: anti-High pressure type product, the highest pressure is 0-600bap

Type and Specification

We sincerely welcome agents from all over the world

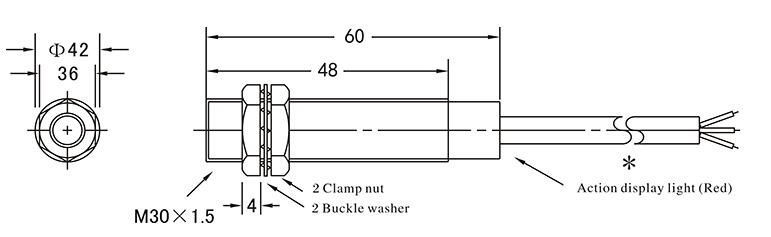

Dimension				M30
Mounting way				Screen shield type
TYPE	DC TYPE	NPN	NO	YLJ30A3-10-Z/N1
			NC	YLJ30A3-10-Z/N2
			NO+NC	YLJ30A3-10-Z/N3
		PNP	NO	YLJ30A3-10-Z/P1
			NC	YLJ30A3-10-Z/P2
			NO+NC	YLJ30A3-10-Z/P3
		Two Wire	NO	YLJ30A3-10-Z/D1
			NC	YLJ30A3-10-Z/D2
	AC TYPE	Two Wire	NO	YLJ30A3-10-J/A1
			NC	YLJ30A3-10-J/A2
		3 wire	NO+NC	YLJ30A3-10-J/A3
Set distance				10 mm+/-10%
Standard detection object				0~8mm
Response frequency				Iron30301
Response frequency				DC:>=0.5kHz AC:50Hz

Connection delay	1.5ms
Light Source	Infrared light 660nm
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:20mA below A type:1.7mA below
Control output	N.P type:300mA below A type:400mA below J type: A below contact service life: 0.1 million times
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection sturcture	IP67 ICE specification
material	stainless steel(ABS); Detection surface(lens)PMMA

AUTHENTICATION

FAQ

We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.
